Inline Connector End View (C51a)

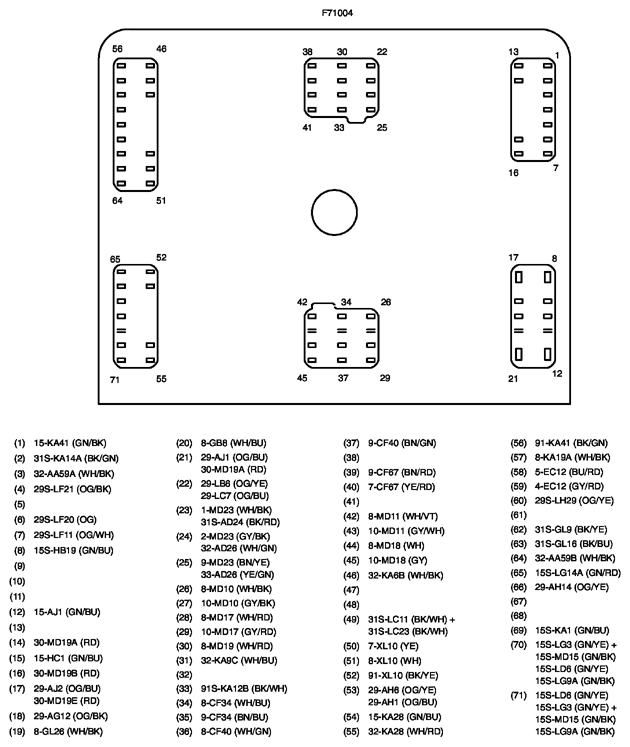

Fig 1: Identifying Inline Connector (C51A)
G10361378Courtesy of FORD MOTOR CO.
