Inline Connector End View (C51b)

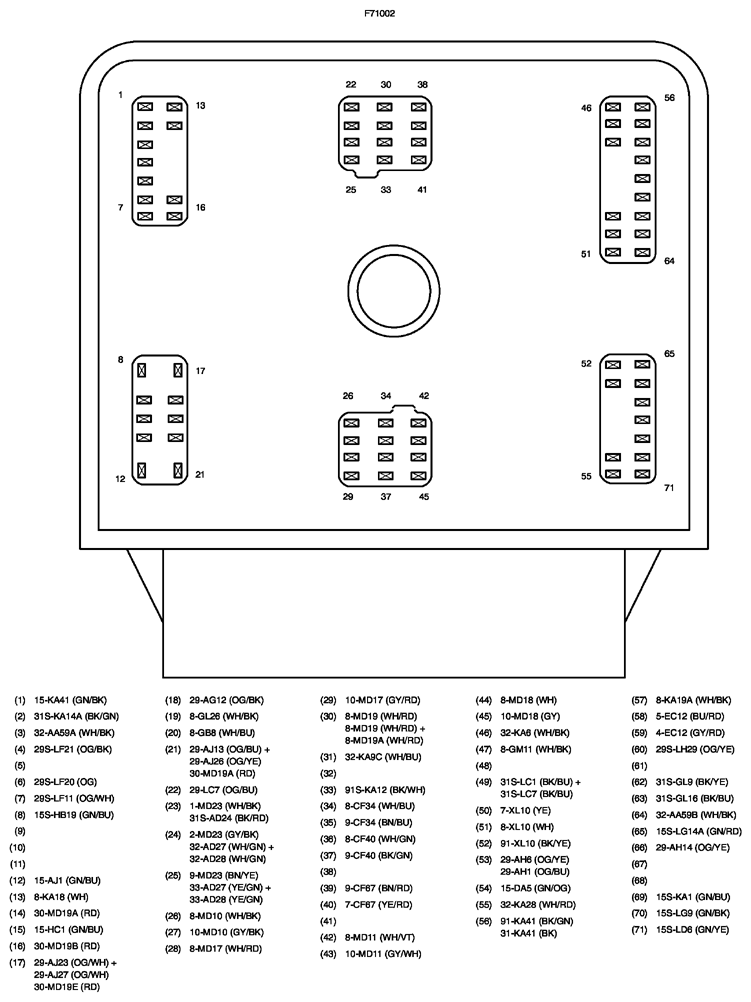

Fig 1: Identifying Inline Connector (C51B)
G10361379Courtesy of FORD MOTOR CO.
