Inline Connector End View (C58)

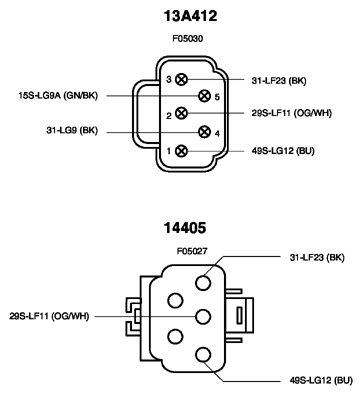

Fig 1: Identifying Inline Connector (C58)
G10361381Courtesy of FORD MOTOR CO.
