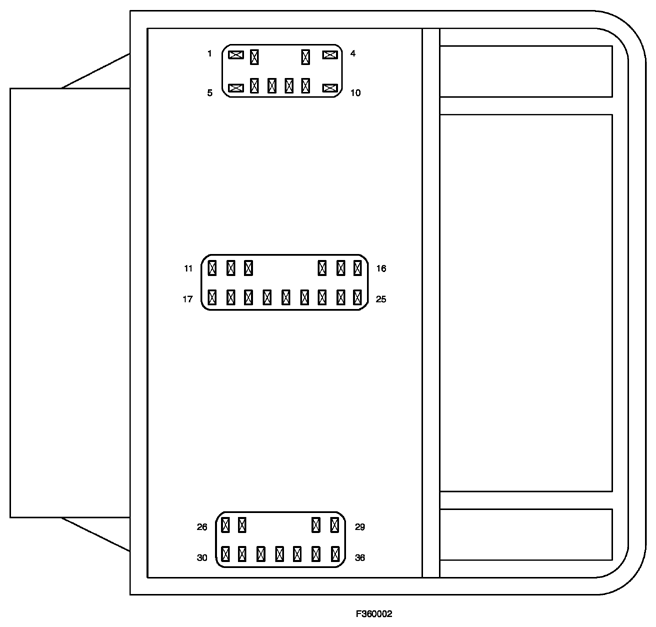

| 1 |
9-RJ35 (BN/RD) |
Sensor signal return (reference/ground) |
| 9-RN3 (BN/RD) |
Sensor signal return (reference/ground) |
| 2 |
9-RJ36 (BN/BU) |
Sensor signal return (reference/ground) |
| 3 |
7-RJ36 (YE/BU) |
Voltage, ignition switch in Start or Run (not overload protected) |
| 4 |
7-RJ35 (YE/RD) |
Voltage, ignition switch in Start or Run (not overload protected) |
| 7-RN3 (YE/RD) |
Voltage, ignition switch in Start or Run (not overload protected) |
| 6 |
8-RJ30 (WH) |
Sensor signal |
| 7 |
8-RJ35 (WH/RD) |
Sensor signal |
| 8 |
9-RJ30 (BN) |
Sensor signal return (reference/ground) |
| 9 |
8-RJ36 (WH/BU) |
Sensor signal |
| 10 |
7-RJ30 (YE) |
Voltage, ignition switch in Start or Run (not overload protected) |
| 11 |
10-GL37 (GY/OG) |
Signal 2 Y-direction, reverse, downward) |
| 12 |
31S-BB16 (BK/RD) |
Ground, switched |
