Inline Connector End View (C70)

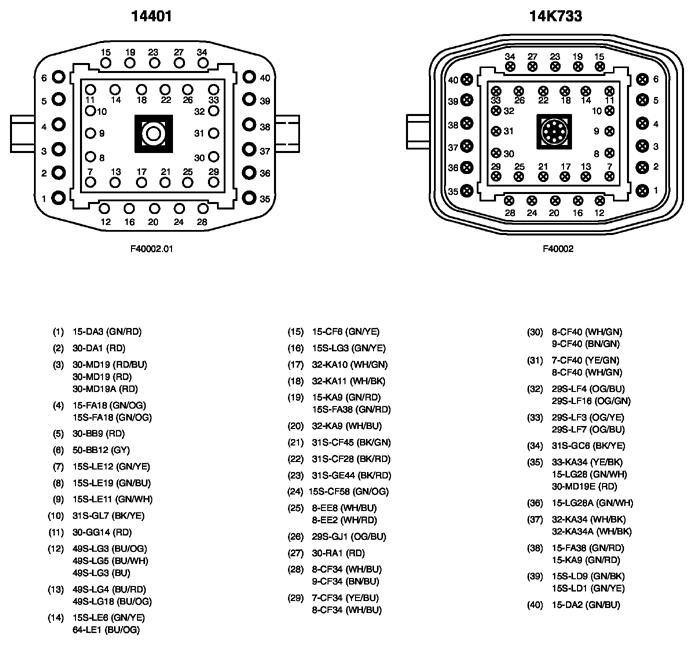

Fig 1: Identifying Inline Connector (C70)
G10361387Courtesy of FORD MOTOR CO.
