Inline Connector End View (C81)

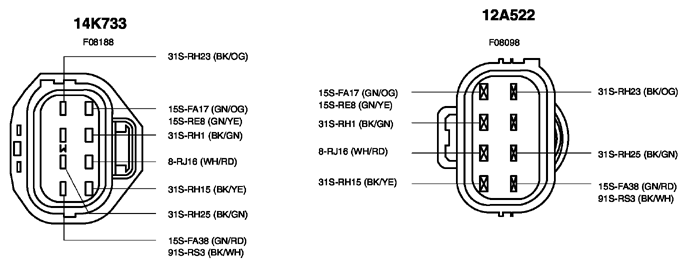

Fig 1: Identifying Inline Connector (C81)
G10361394Courtesy of FORD MOTOR CO.
