Inline Connector End View (C91)

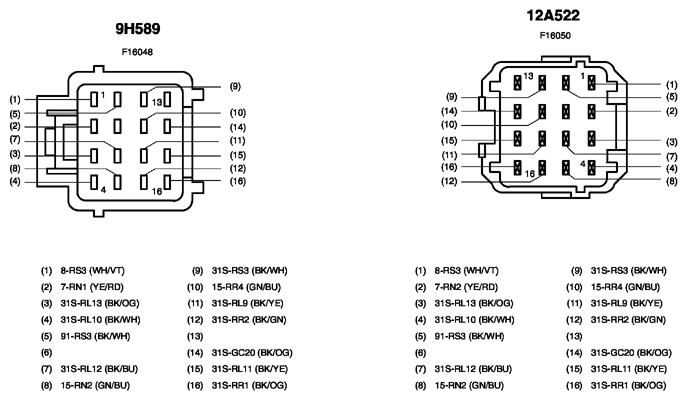

Fig 1: Identifying Inline Connector (C91)
G10361398Courtesy of FORD MOTOR CO.
