Home › Ford › 2002 › Focus SVT › Repair and Diagnosis › Electrical › Body Electrical › OEM Connector End Views › Connector End Views › Inline Connector End View (C95)

Inline Connector End View (C95)

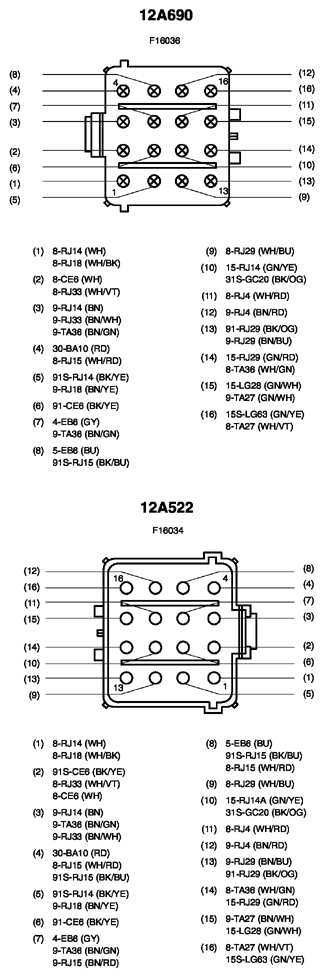

Fig 1: Identifying Inline Connector (C95)
G10361400Courtesy of FORD MOTOR CO.
