Battery Junction Box
NOTE:
Battery junction box may also be referred to as power distribution box.
NOTE:

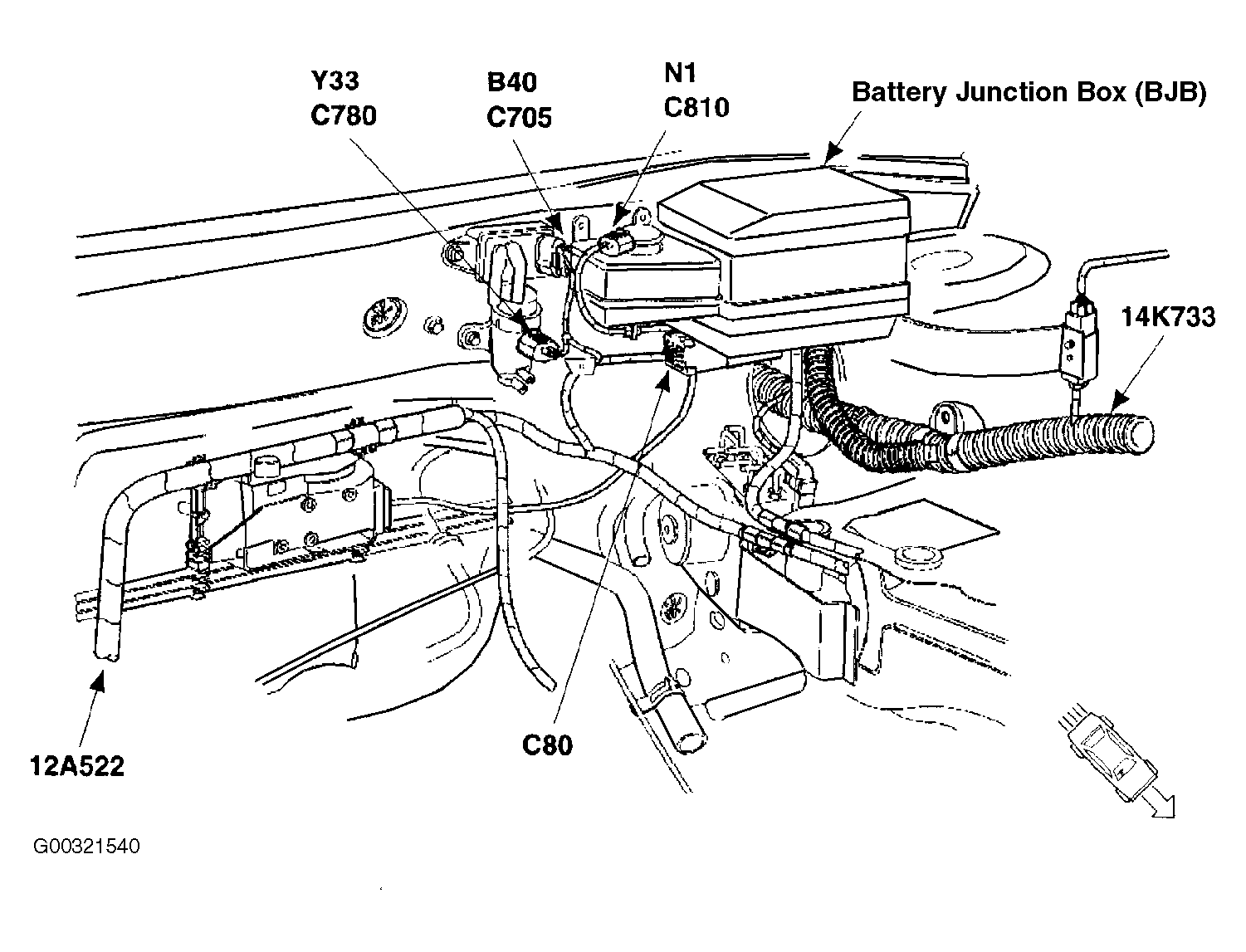

Battery junction box is located in driver's side rear corner of engine compartment. See Fig 1.

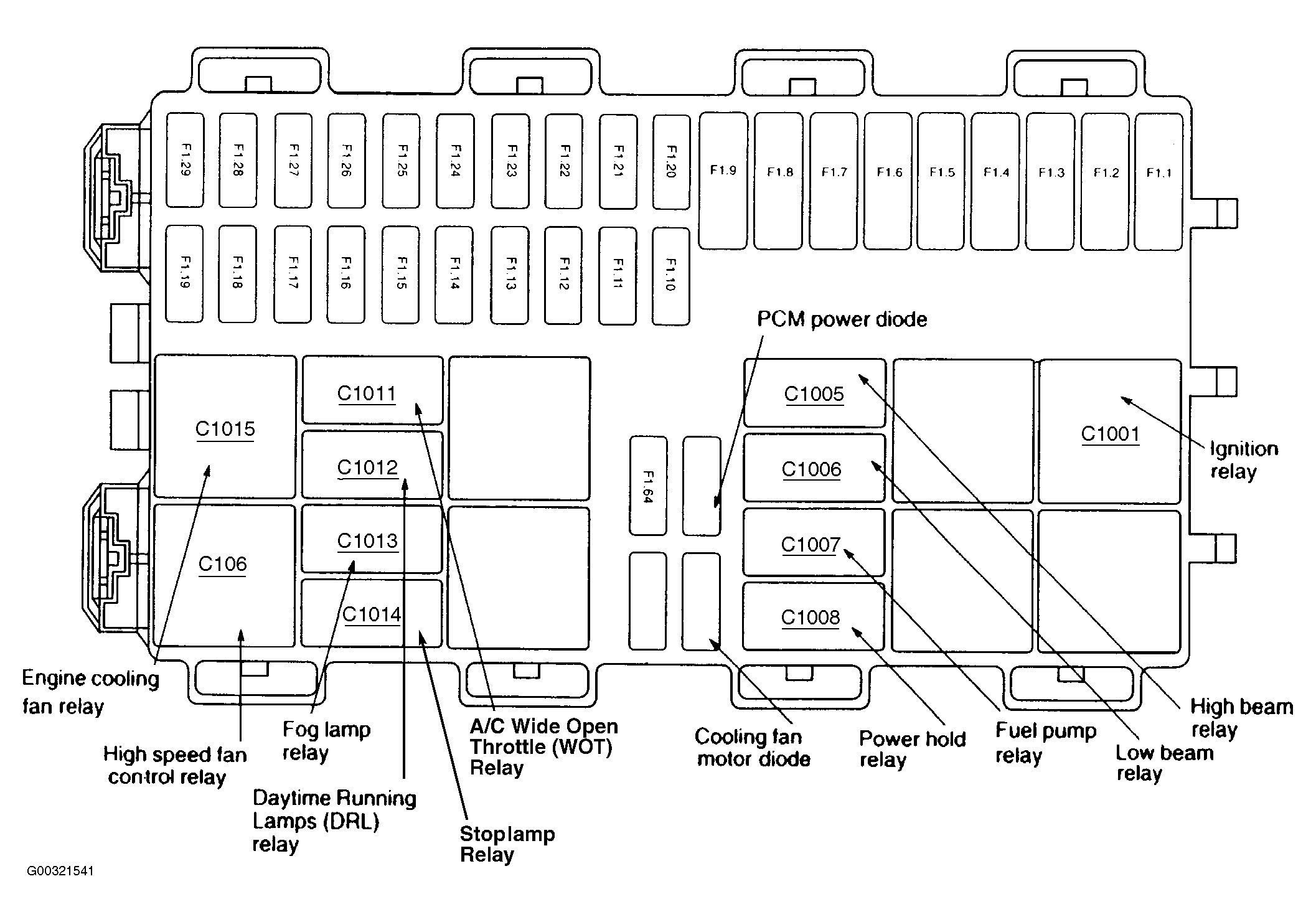

BATTERY JUNCTION BOX RELAY IDENTIFICATION
| RELAY NUMBER | RELAY DESCRIPTION |
|---|---|
| C1015 | Engine Cooling Fan Relay |
| C106 | High Speed Fan Control Relay |
| C1013 | Fog Lamp Relay |
| C1012 | Daytime Running Lamps (DRL) Relay |
| C1014 | Stoplamp Relay |
| C1011 | A/C Wide Open Throttle (WOT) Relay |
| C1008 | Power Hold Relay |
| C1007 | Fuel Pump Relay |
| C1006 | Low Beam Relay |
| C1005 | High Beam Relay |
| C1001 | Ignition Relay |
BATTERY JUNCTION BOX FUSE IDENTIFICATION LEGEND
| Fuse | Amps | Circuits protected |
|---|---|---|
| F1.1 | 40 | Central Junction Box (CJB) |
| F1.2 | 30 | Engine cooling fan resistor, Engine cooling tan, Dual engine cooling tan |
| F1.3 | - | not used |
| F1.4 | - | not used |
| F1.5 | - | not used |
| F1.6 | 50 | Engine cooling fan, Dual engine cooling fan |
| F1.7 | 40 | Central Junction Box (CJB) |
| F1.8 | 30 | Starting System, Ignition switch |
| F1.9 | 20 | Engine Controls, Heated oxygen sensors (HO2S), Engine Ignition, Fuel injectors, Digital Transmission Range (DTR) sensor, Gearshift lever unit to transmission overdrive cancel switch, Engine Cooling, Fuel pump relay, A/C Wide Open Throttle (WOT) relay |
| F1.10 | 10 | Generator |
| F1.11 | 30 | ABS control module |
| F1.12 | 15 | Inertia Fuel Shutoff (IFS) switch, Fuel pump driver module |
| F1.13 | - | not used |
| F1.14 | - | not used |
| F1.15 | 10 | A/C Wide Open Throttle (WOT) Relay |
| F1.16 | 10 | Low beam, Left |
| F1.17 | 10 | Low beam, Right |
| F1.18 | 10 | Heated oxygen sensors (HO2S) |
| F1.19 | - | not used |
| F1.20 | 10 | Powertrain Control Module (PCM) |
| F1.21 | 20 | ABS control module (2C219) |
| F1.22 | 20 | Low beam, Daytime running lamps resistor |
| F1.23 | 30 | not used |
| F1.24 | 30 | Subwoofer amplifier |
| F1.25 | - | not used |
| F1.26 | 10 | High beam, Left |
| F1.27 | 10 | High beam, Right |
| F1.28 | 10 | Engine Run Relay |
| F1.29 | - | not used |
| F1.64 | 40 | Heater blower motor |
| F1.65 | 30 | Engine cooling fan motor - Duratec-ST |
