Central Junction Box
NOTE:
Central junction box may also be referred to as passenger compartment fuse panel.
NOTE:
Central junction box is located under driver's side of instrument panel.

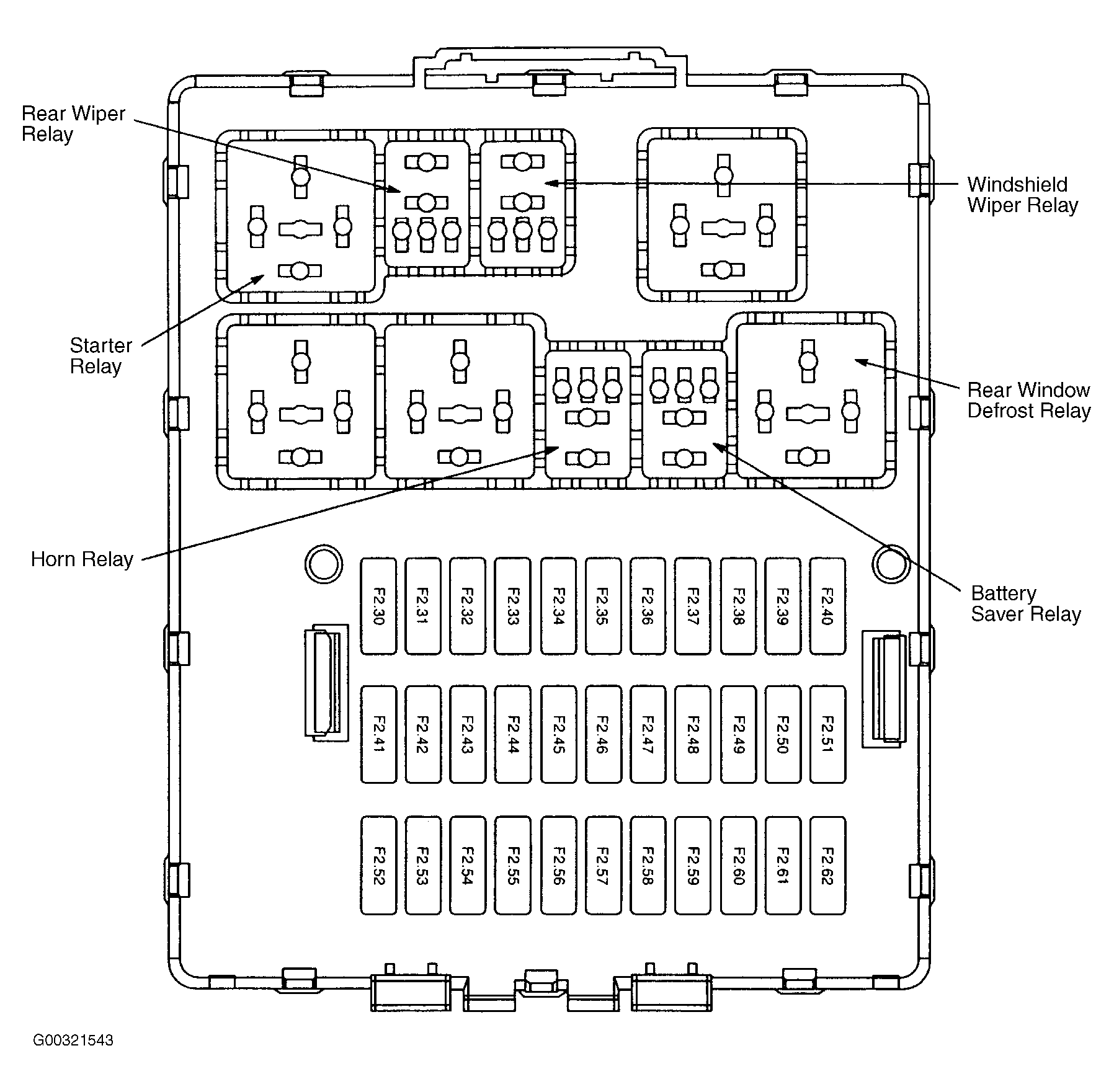

CENTRAL JUNCTION BOX RELAY IDENTIFICATION
| RELAY DESCRIPTION |
|---|
| Rear Wiper Relay |
| Starter Relay |
| Horn Relay |
| Battery Saver Relay |
| Rear Window Defrost Relay |
| Windshield Wiper Relay |
CENTRAL JUNCTION BOX FUSE IDENTIFICATION LEGEND
| Fuse | Amps | Circuits protected |
|---|---|---|
| F2.30 | 10 | Light switch |
| F2.31 | 15 | Radio |
| F2.32 | 15 | Generic Electronic Module (GEM) |
| F2.33 | 20 | Power seats, Horn |
| F2.34 | 20 | Roof opening panel unit |
| F2.35 | 7.5 | Battery saver |
| F2.36 | 7.5 | Instrument cluster, Heater control module, Battery saver relay |
| F2.37 | - | not used |
| F2.38 | - | not used |
| F2.39 | 15 | Power Seat (Passenger Side) |
| F2.40 | 10 | Reversing lamps |
| F2.41 | 7.5 | Radio (18806), Instrument cluster |
| F2.42 | 15 | Stoplamps, speed control |
| F2.43 | 15 | Wiper/washer, Rear, Power sliding roof |
| F2.44 | 20 | Light switch |
| F2.45 | 7.5 | Heater control module |
| F2.46 | 7.5 | ABS control module, Steering Position Sensor |
| F2.47 | 15 | Power point, Cigar lighter, front |
| F2.48 | 10 | Data Link Connector (DLC) |
| F2.49 | 25 | Rear window defrost grid |
| F2.50 | 7.5 | Power mirrors |
| F2.51 | - | not used |
| F2.52 | 15 | Heated seats |
| F2.53 | 10 | speed control, Park/neutral position (PNP) switch |
| F2.54 | 25 | Master window adjust switch |
| F2.55 | 25 | Power Windows |
| F2.56 | 20 | Wiper and Washer |
| F2.57 | 7.5 | Exterior lamps, Right |
| F2.58 | 7.5 | Exterior lamps, Left |
| F2.59 | 7.5 | Headlamps |
| F2.60 | 7.5 | Restraints control module |
| F2.61 | 7.5 | Passive anti-theft transceiver module, Instrument cluster |
| F2.62 | 7.5 | License plate lamps |
| F2.63 | 20 | Generic Electronic Module (GEM) |
