Lower Engine Components

WARNING: This page is about a different car, the 2003 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

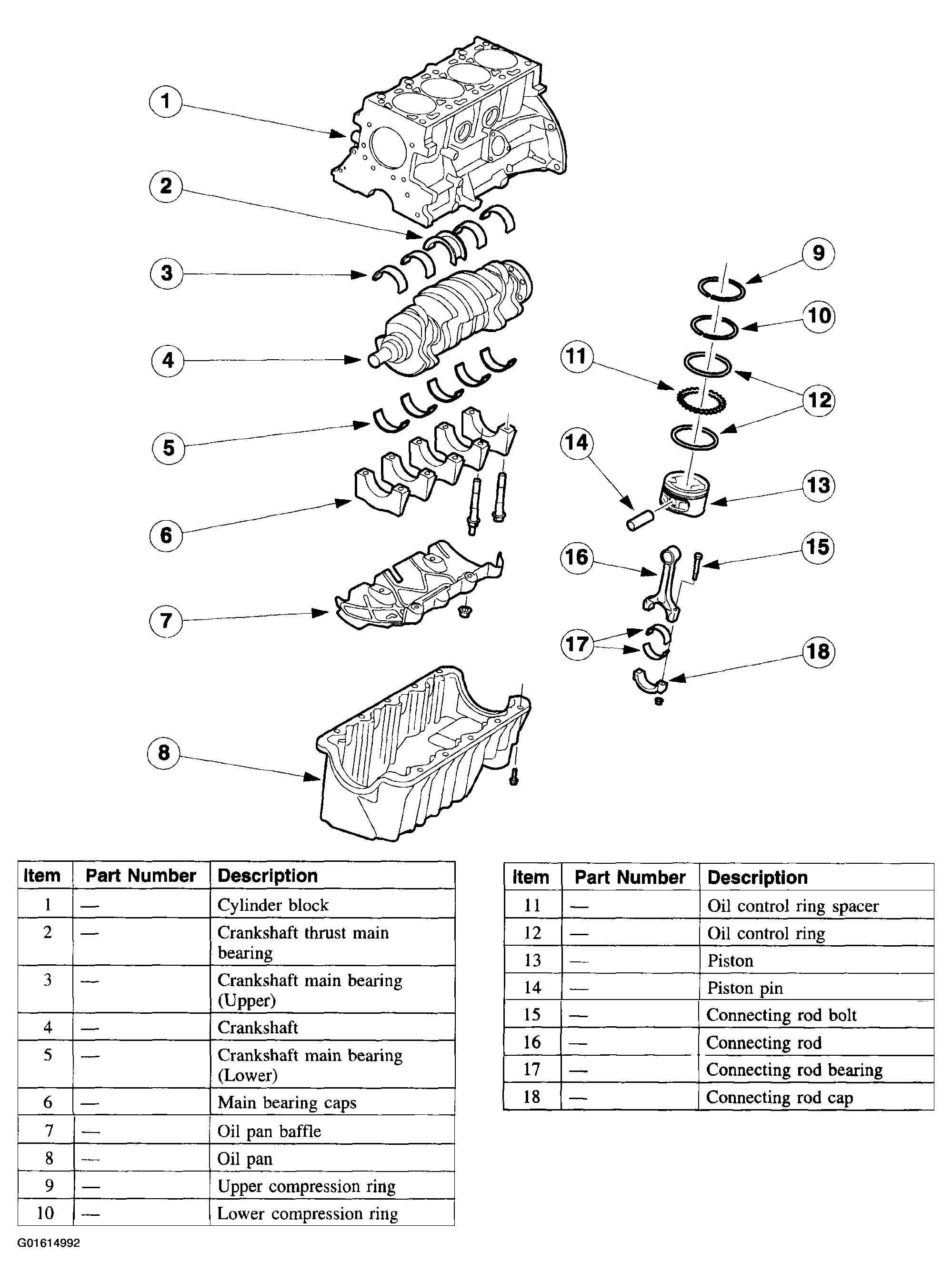

Fig 1: Exploded View Of Lower Engine Components (1 Of 2)

Courtesy of FORD MOTOR CO.

Fig 1: Exploded View Of Lower Engine Components (2 Of 2)

Courtesy of FORD MOTOR CO.
