Oil Pump: Removal

WARNING: This page is about a different car, the 2003 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

Remove the timing belt. For additional information, refer to TIMING BELT .
Using the special tools, support the engine.

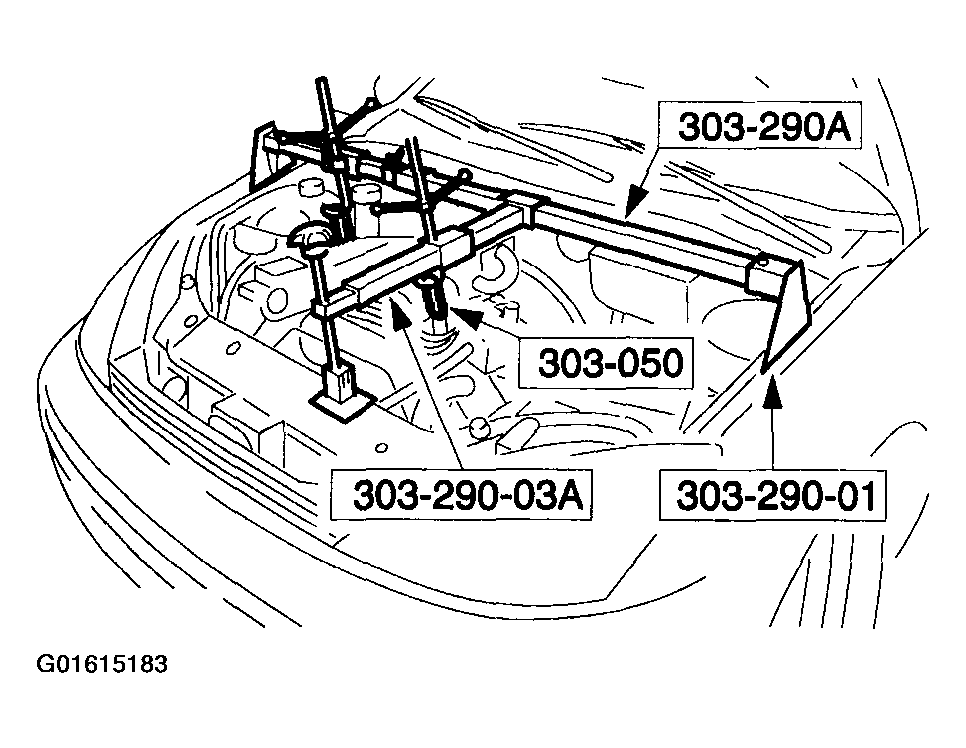

Fig 1: Supporting Engine
Courtesy of FORD MOTOR CO.
Remove the jack.
Remove the crankshaft timing belt pulley.

Fig 2: Removing Crankshaft Timing Belt Pulley
Courtesy of FORD MOTOR CO.
Remove the oil pan. For additional information, refer to OIL PAN .
Remove the crankshaft position (CKP) sensor.

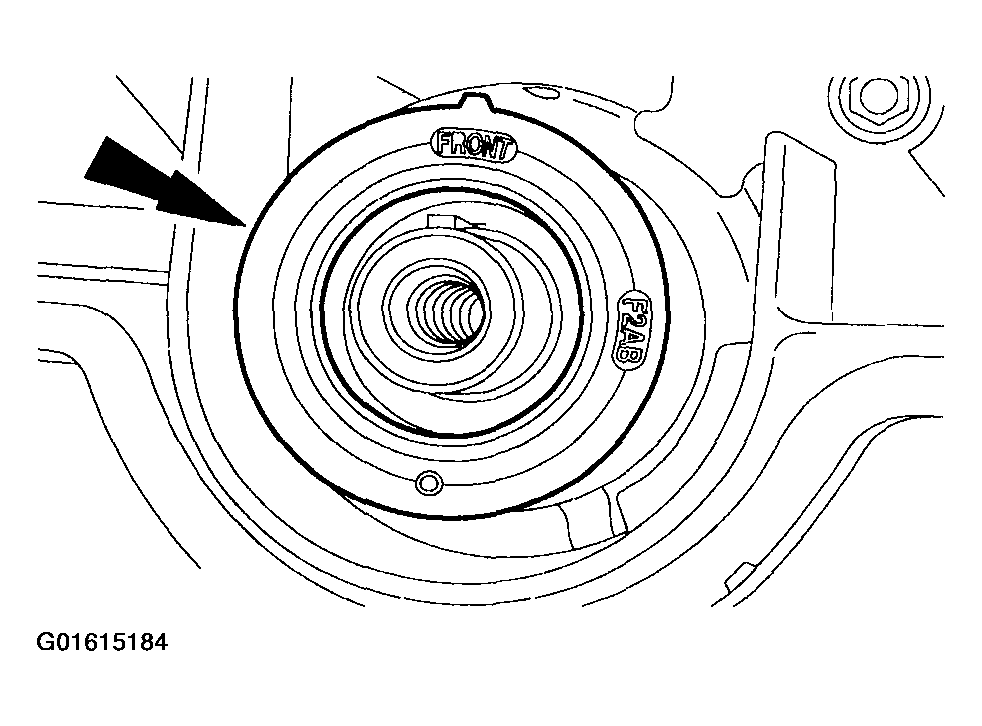

Fig 3: Removing Crankshaft Position Sensor
Courtesy of FORD MOTOR CO.
Remove the two bolts and the oil pump screen cover and tube.
- Discard the gasket.

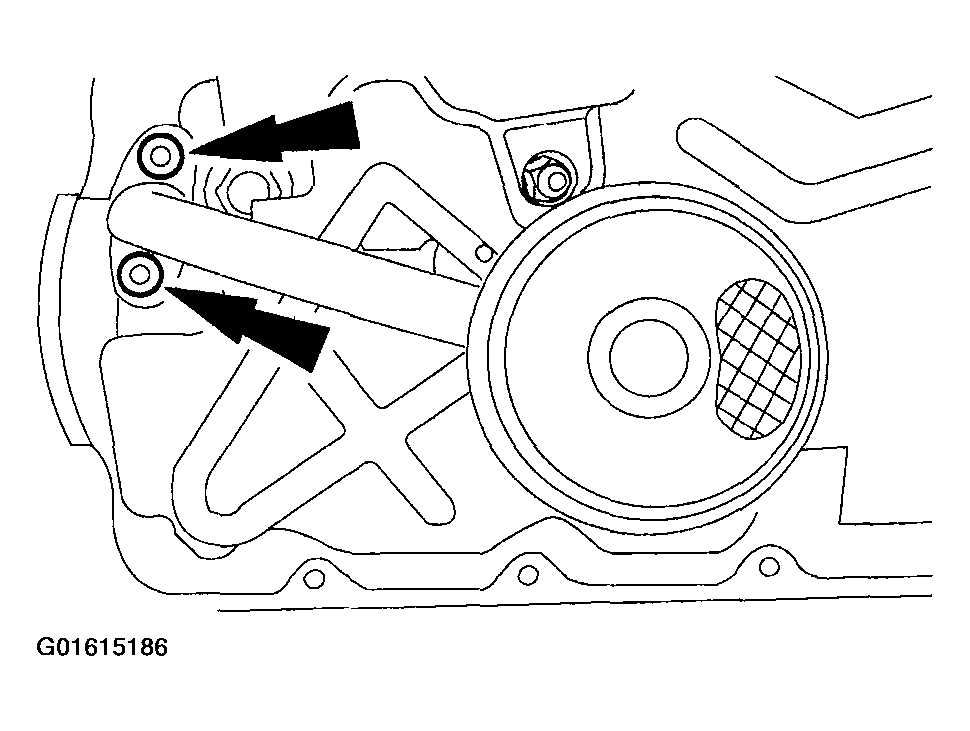

  Fig 4: Removing Oil Pump Screen Cover And Tube
  Courtesy of FORD MOTOR CO.
Remove the oil pump.
- Discard the gasket.

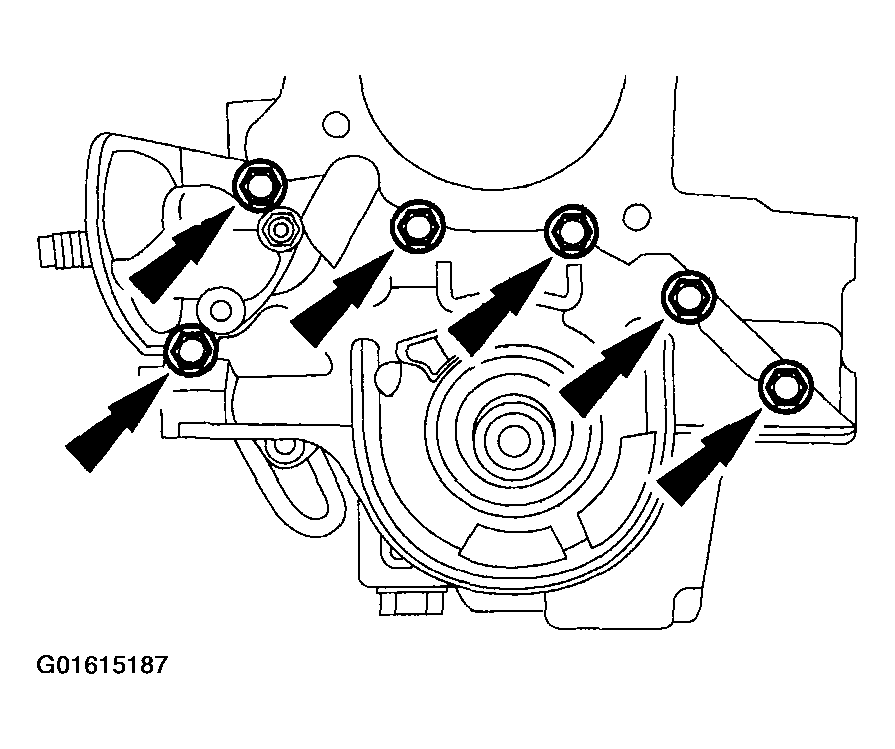

  Fig 5: Removing Oil Pump
  Courtesy of FORD MOTOR CO.
Remove the oil pump seal.

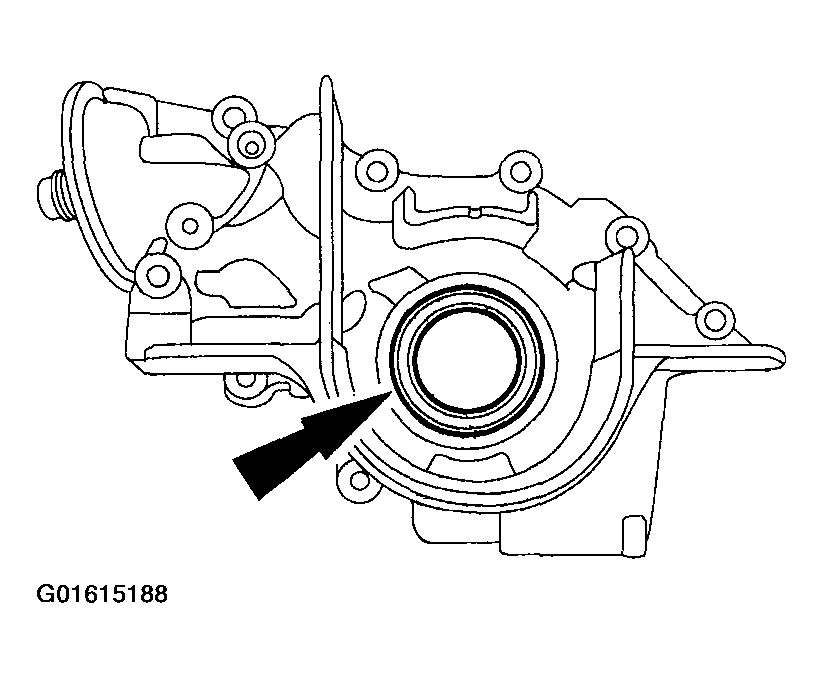

Fig 6: Removing Oil Pump Seal
Courtesy of FORD MOTOR CO.
