Section 577 (Anti-Lock Control System)
›
Diagnosis And Testing
›
Anti-Lock Control
›
Connector Circuit Reference Table
›
Rear Wheel Speed Sensor C455
Rear Wheel Speed Sensor C455
WARNING:
This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

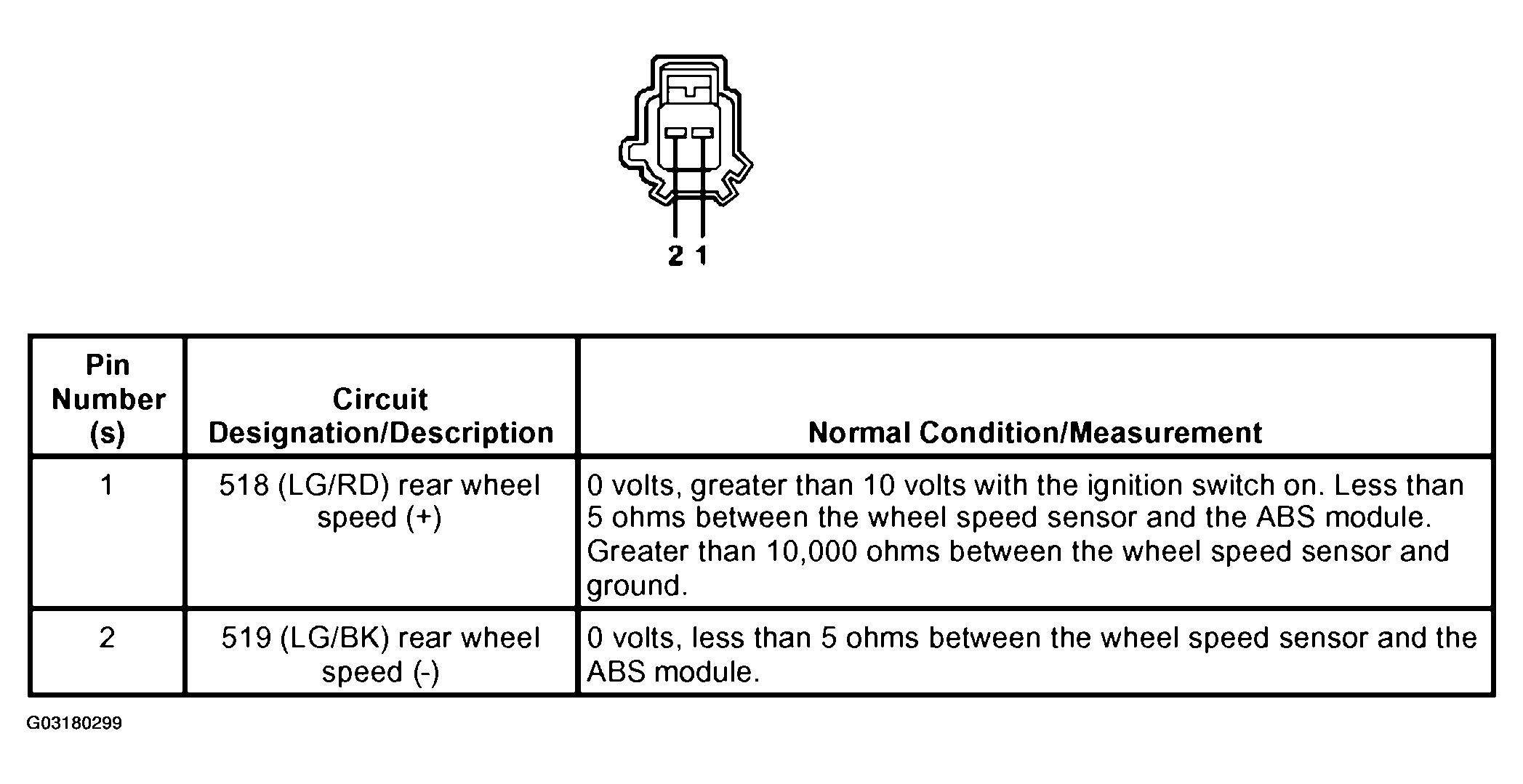

Fig 1: Identifying Rear Wheel Speed Sensor C455
Courtesy of FORD MOTOR CO.
