Valve Seals: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install the valve stem seal.

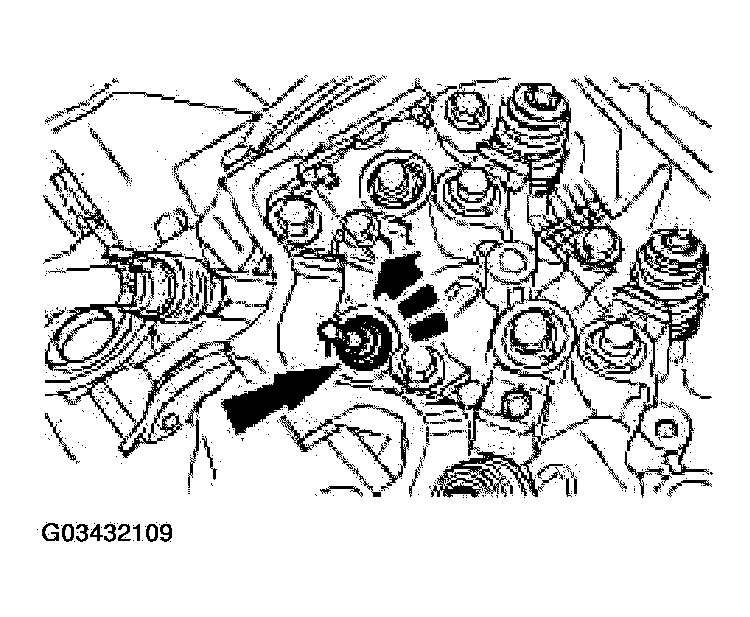

    Fig 1: Installing Valve Stem Seal
    G03432109Courtesy of FORD MOTOR CO.
  2. Install the valve springs. For additional information, refer to VALVE SPRINGS .
