Valve Springs: Installation

WARNING: This page is about a different variant/trim than selected.

Use the special tool to compress the valve spring and install the valve spring retainer.

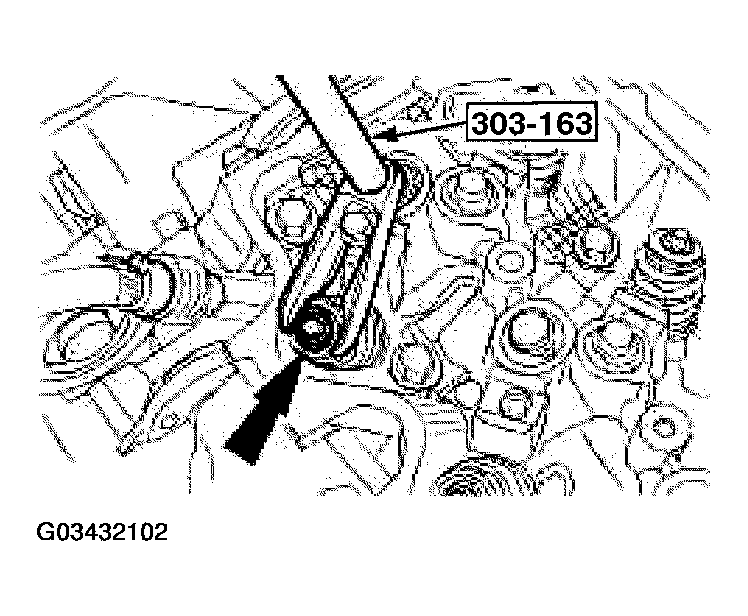

Fig 1: Compressing Valve Spring And Installing Valve Spring Retainer
Courtesy of FORD MOTOR CO.

NOTE: Check that the rocker guides are sitting correctly.

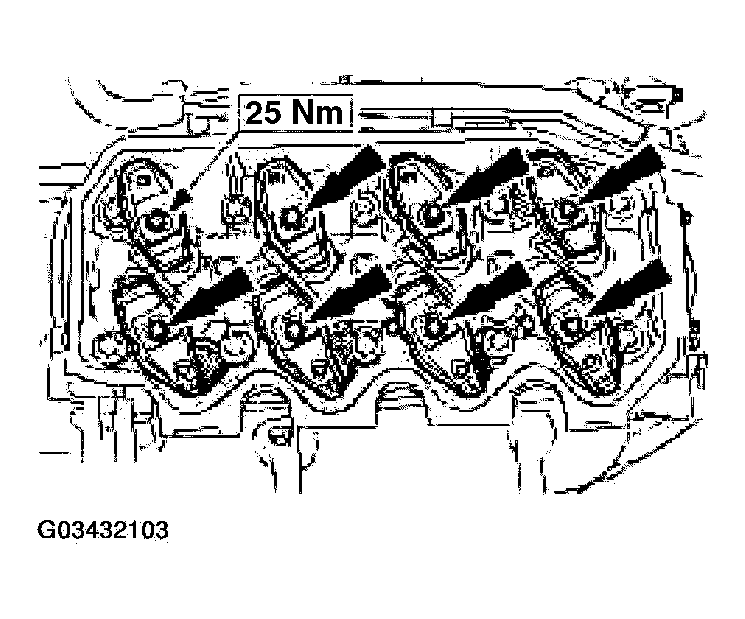

Fig 2: Installing Rocker Arms With Torque Specifications

Courtesy of FORD MOTOR CO.

Install the rocker arms.
Remove the adaptor.

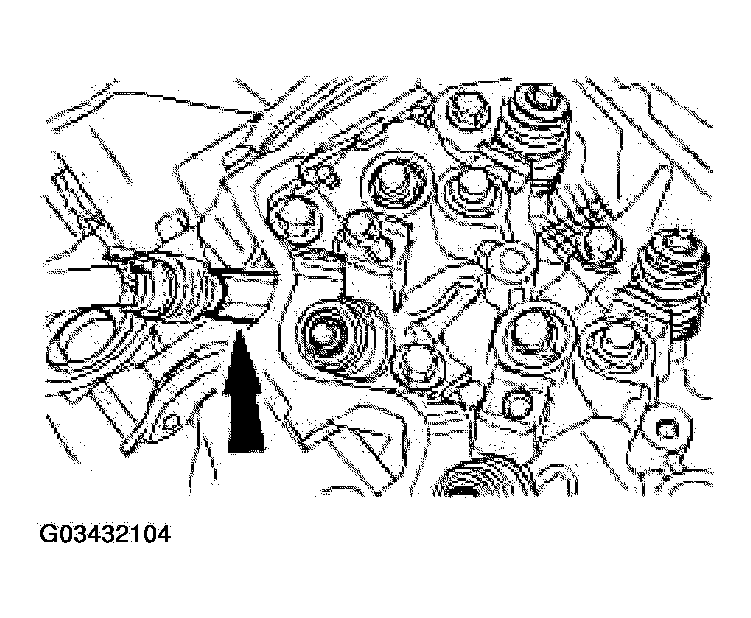

Fig 3: Removing Adaptor
Courtesy of FORD MOTOR CO.
Install the valve cover.

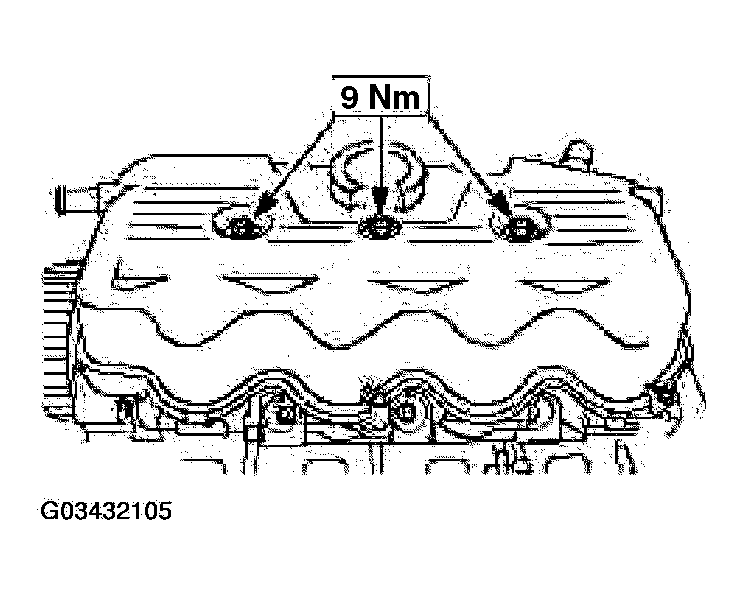

Fig 4: Installing Valve Cover With Torque Specifications
Courtesy of FORD MOTOR CO.
Install the spark plugs (shown with engine removed).
- Apply lubricant to the spark plug thread.

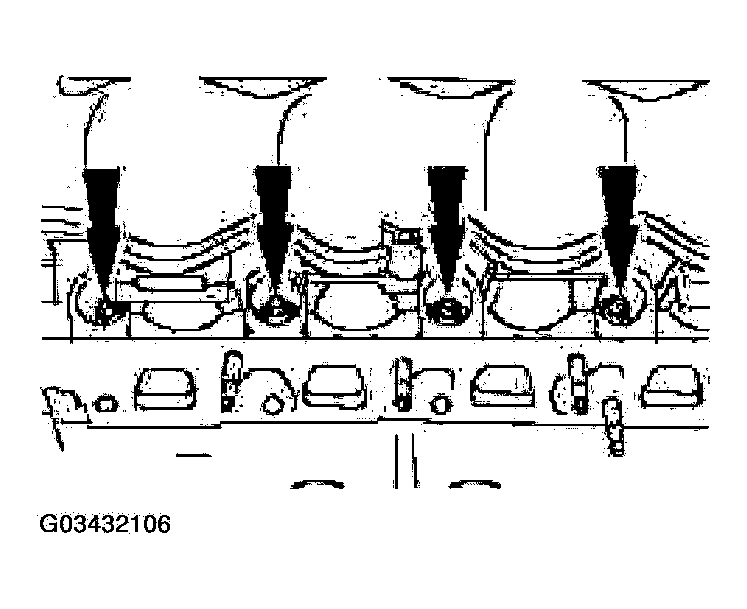

  Fig 5: Installing Spark Plugs
  Courtesy of FORD MOTOR CO.

CAUTION: Use a blunt object (plastic cable tie) to apply the silicone grease, to avoid damaging the spark plug connector seal.

CAUTION: Push on the spark plug connector in a straight movement.

NOTE: Coat the inside of the spark plug connector with silicone grease to a depth of 5-10 mm.

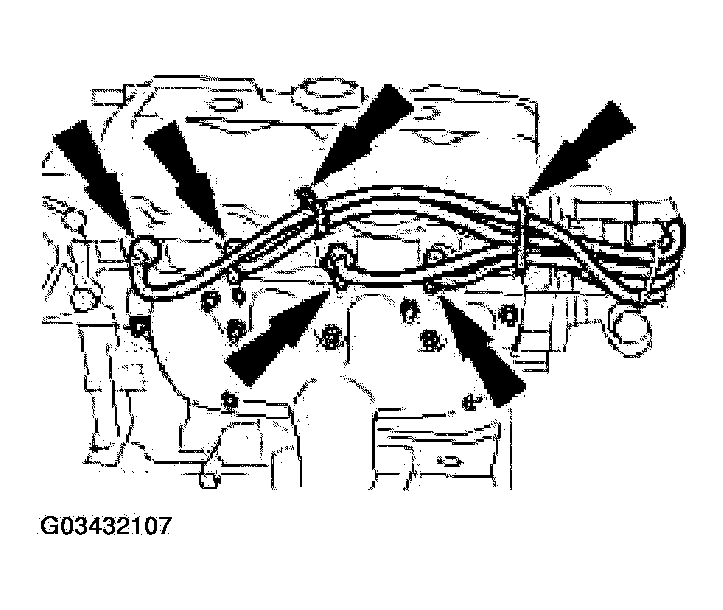

Fig 6: Connecting Spark Plug Connector

Courtesy of FORD MOTOR CO.
