Selector Plate: Assembly

WARNING: This page is about a different variant/trim than selected.

Install the selector mechanism.
1. Selector shaft.
2. Reverse gear selector lever.
3. Fifth and reverse gear selector shaft guide sleeve.
4. Selector plate.

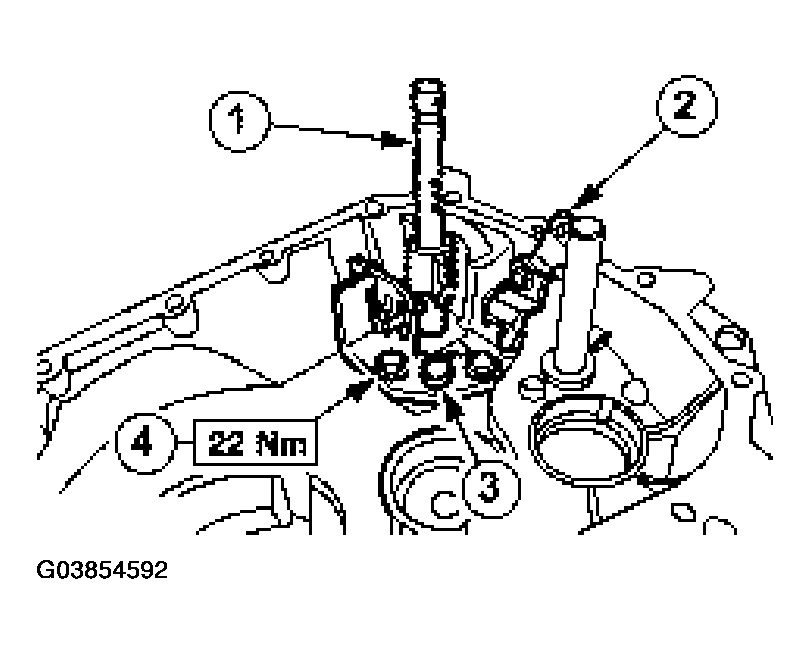

Fig 1: Installing Selector Mechanism
Courtesy of FORD MOTOR CO.
