Steering Gear Boot: Removal

  1. Remove the tie rod end. For additional information, refer to TIE ROD END .
  2. Remove the boot.
    1. Remove the clamps.

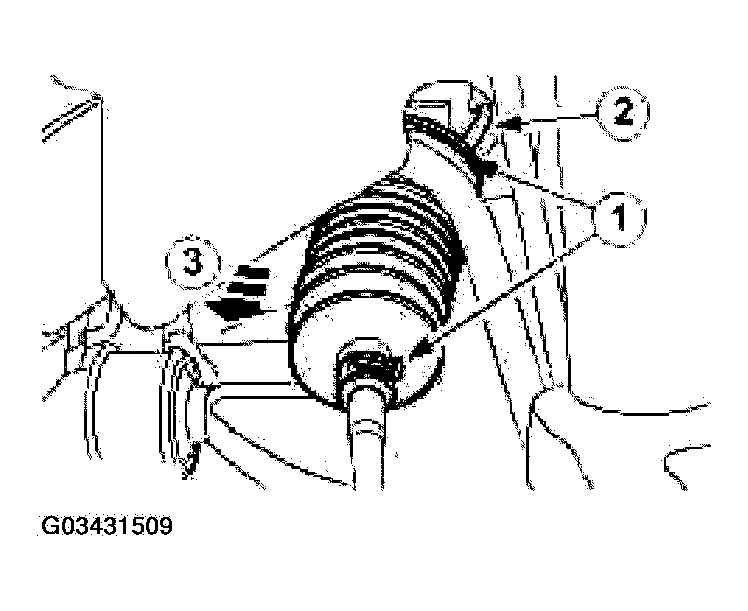

      Fig 1: Identifying Clamps & Boot
      G03431509Courtesy of FORD MOTOR CO.
    2. Disconnect the breather pipe (if equipped).
    3. Remove the boot.
