Disassembly & Reassembly

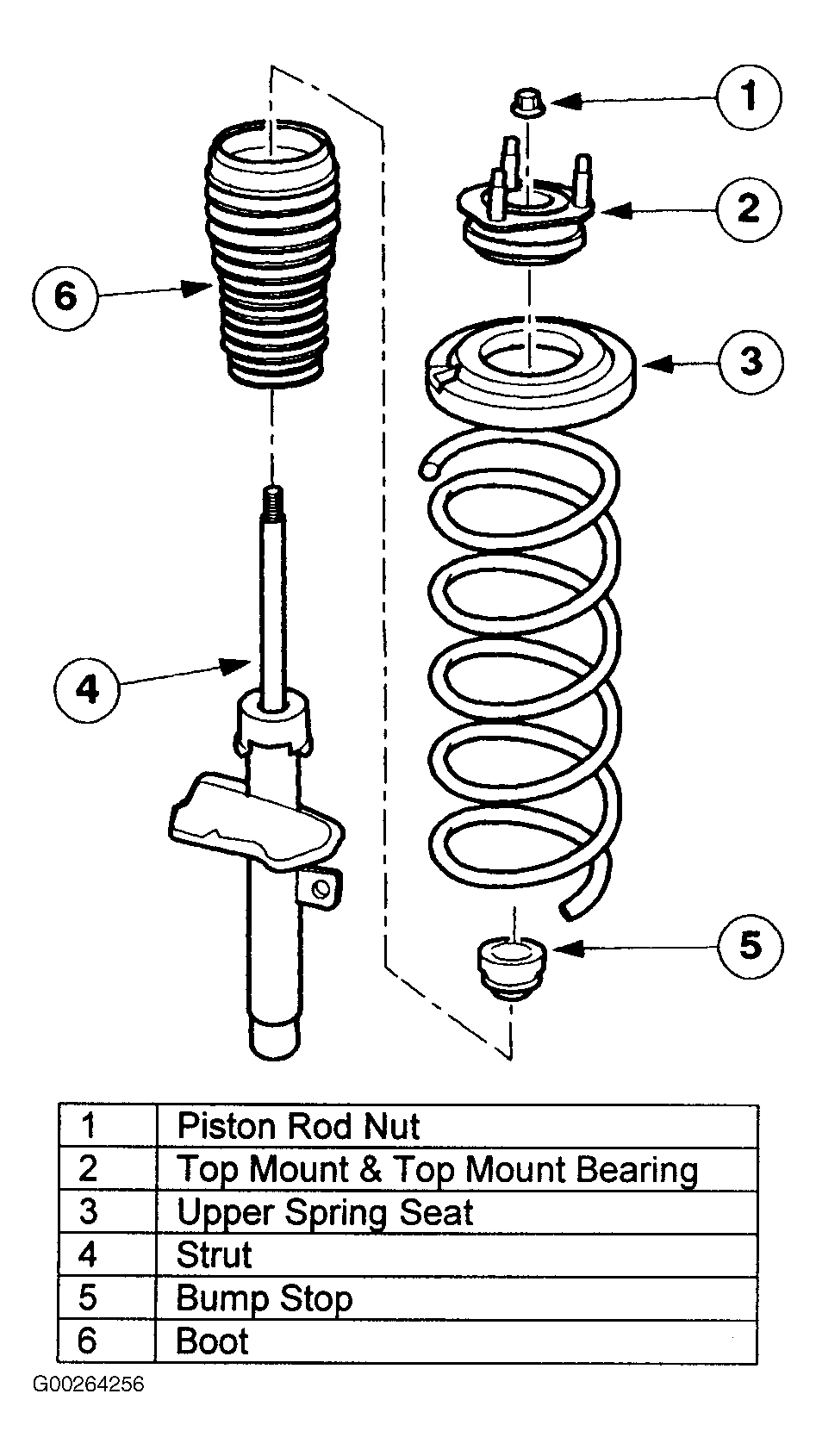

- Secure strut assembly mounting block in vise. Using a suitable coil spring compressor, compress coil spring. Remove piston rod nut. See Fig 1 . Remove top mount and thrust bearing, upper spring seat, spring, dust boot and rubber bump stop.
- To reassemble, reverse disassembly procedure. Ensure spring is properly seated into insulator.
