Pinpoint Test A: No Communication With The Abs Module

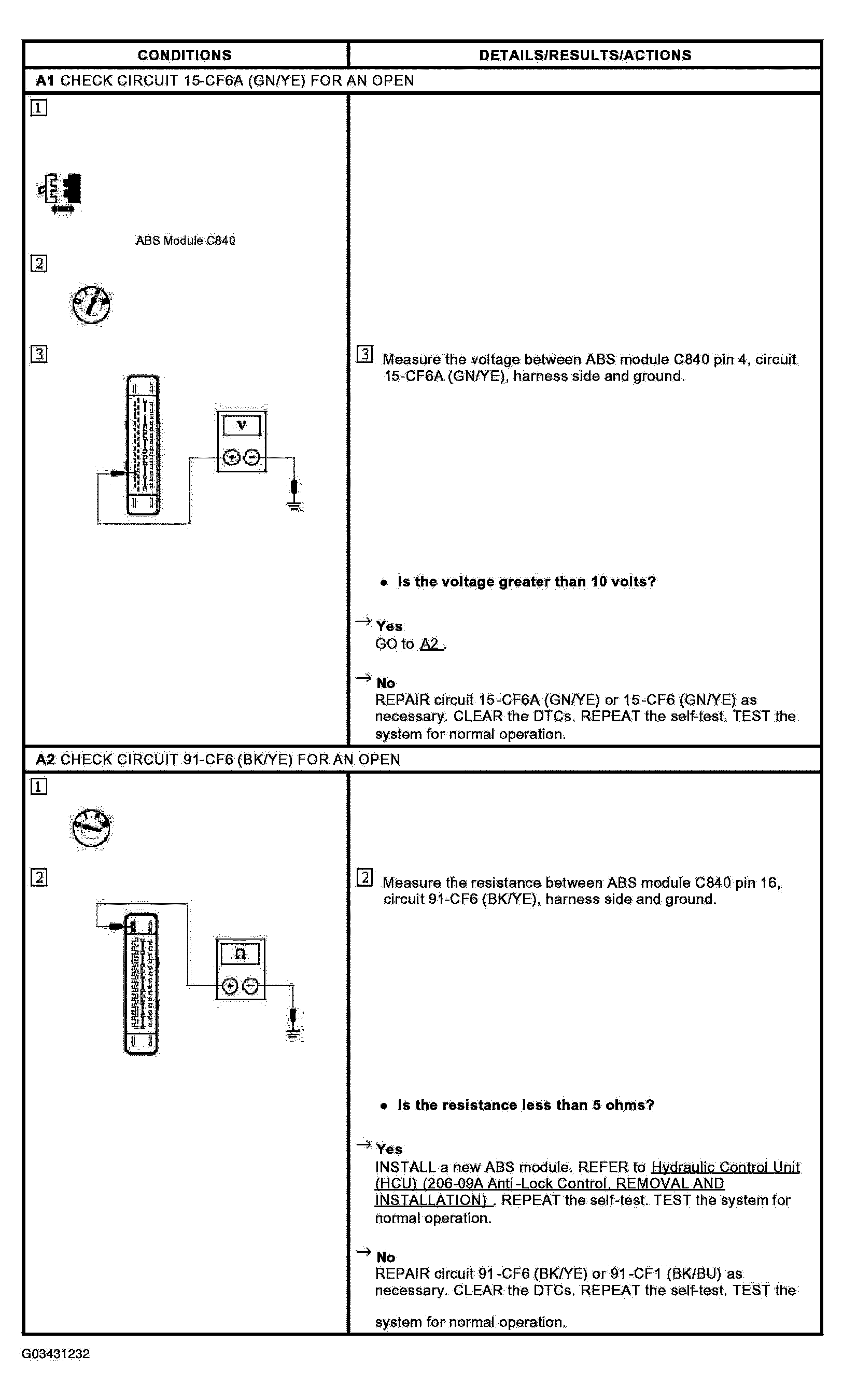

Fig 1: Pinpoint Test A Chart - No Communication With ABS Module
G03431232Courtesy of FORD MOTOR CO.
