Overview of construction and function

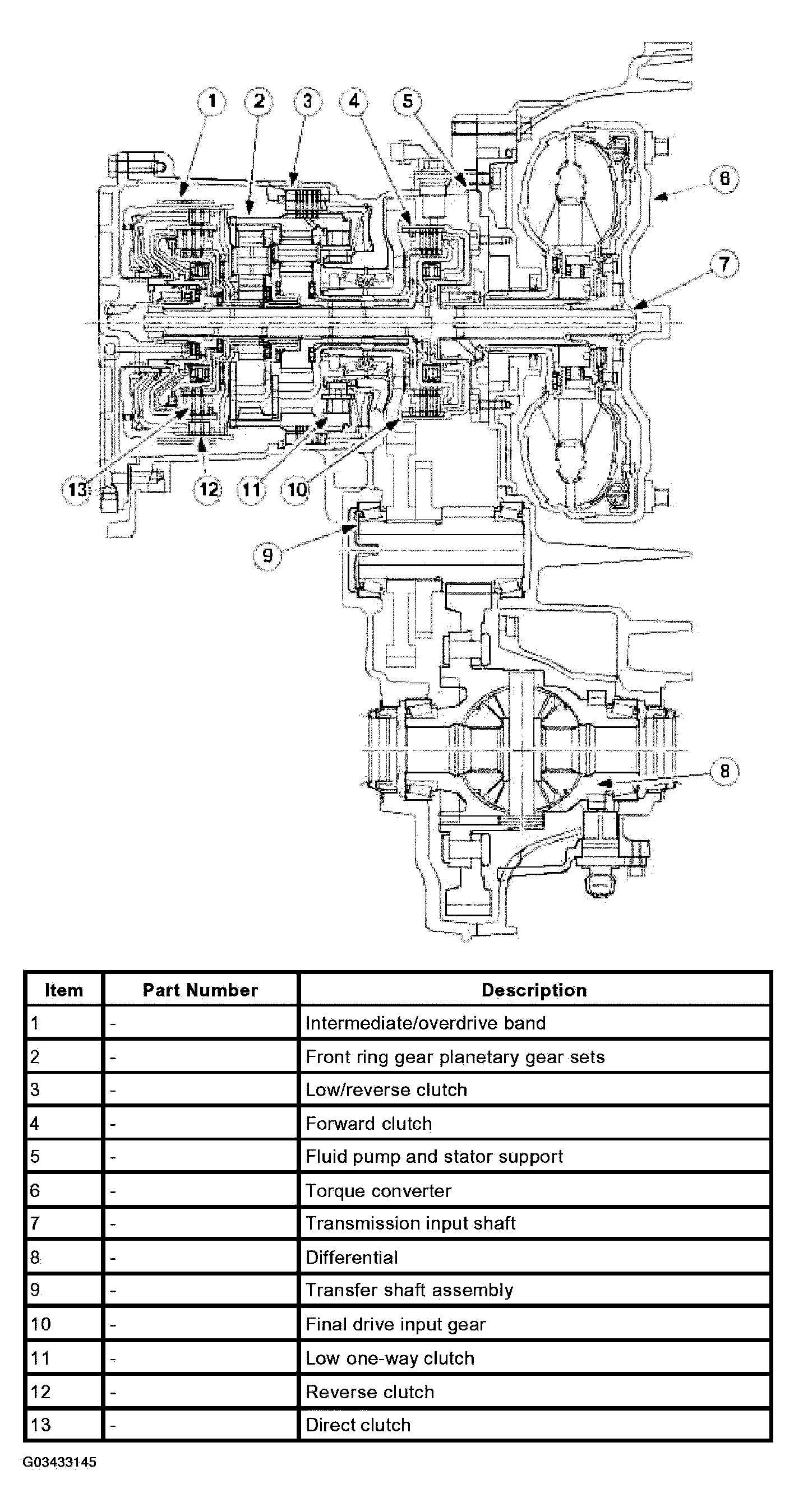

Fig 1: Overview Of Construction And Function
G03433145Courtesy of FORD MOTOR CO.
