FixVault
Home
›
Ford
›
2002
›
Focus ZX5, Standard
›
Repair and Diagnosis
›
Brakes
›
Traction Control
›
Anti-Lock Control
›
Diagnosis And Testing
›
Anti-Lock Control
›
Pinpoint Tests
›
Pinpoint Test B: Unable To Enter Self-Test
Pinpoint Test B: Unable To Enter Self-Test

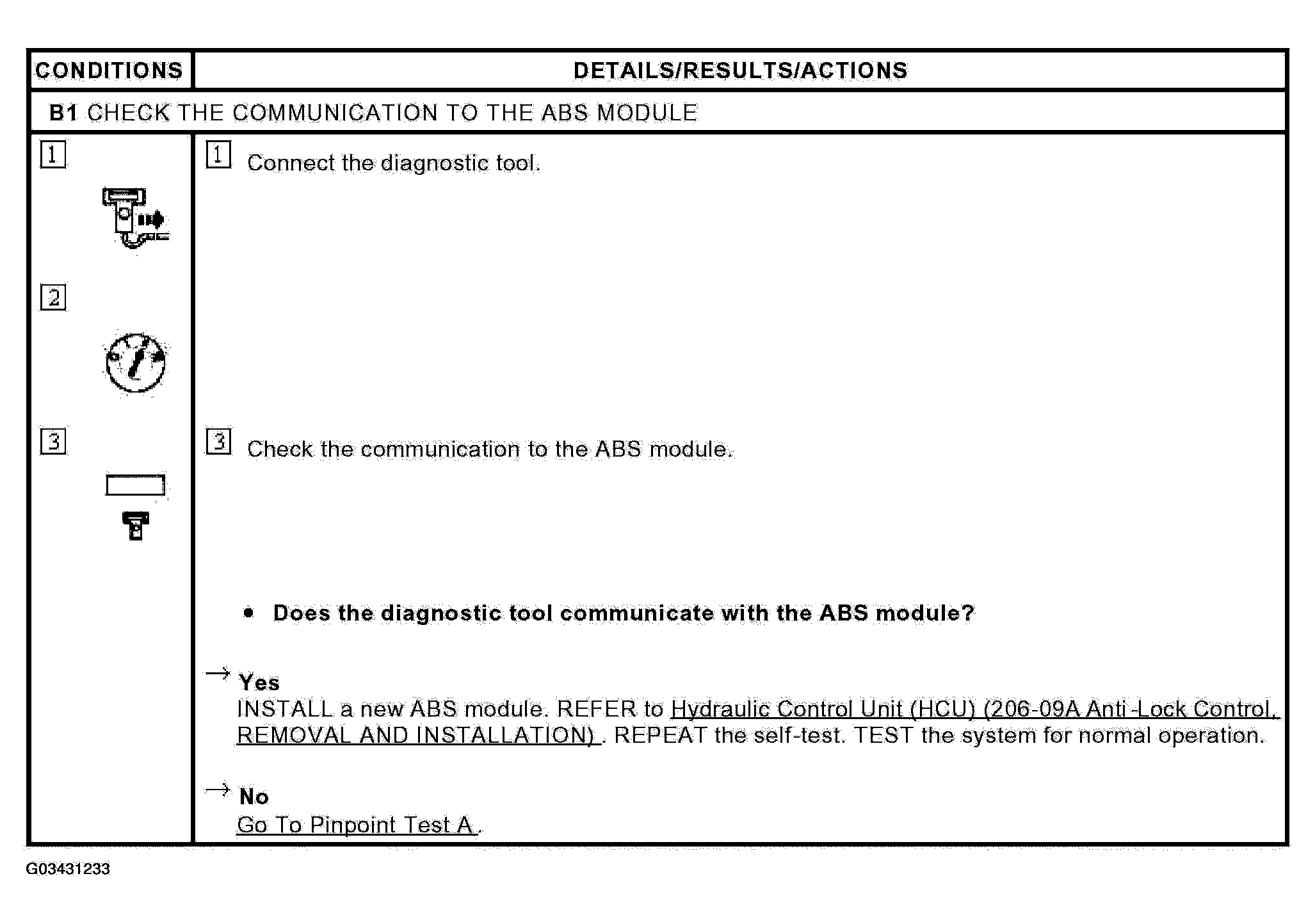

Fig 1: Pinpoint Test B Chart - Unable To Enter Self-Test
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
