Constant Control Relay Module (CCRM)

NOTE: CCRM is located in engine compartment, right side center. See Fig 1 or Fig 2 .

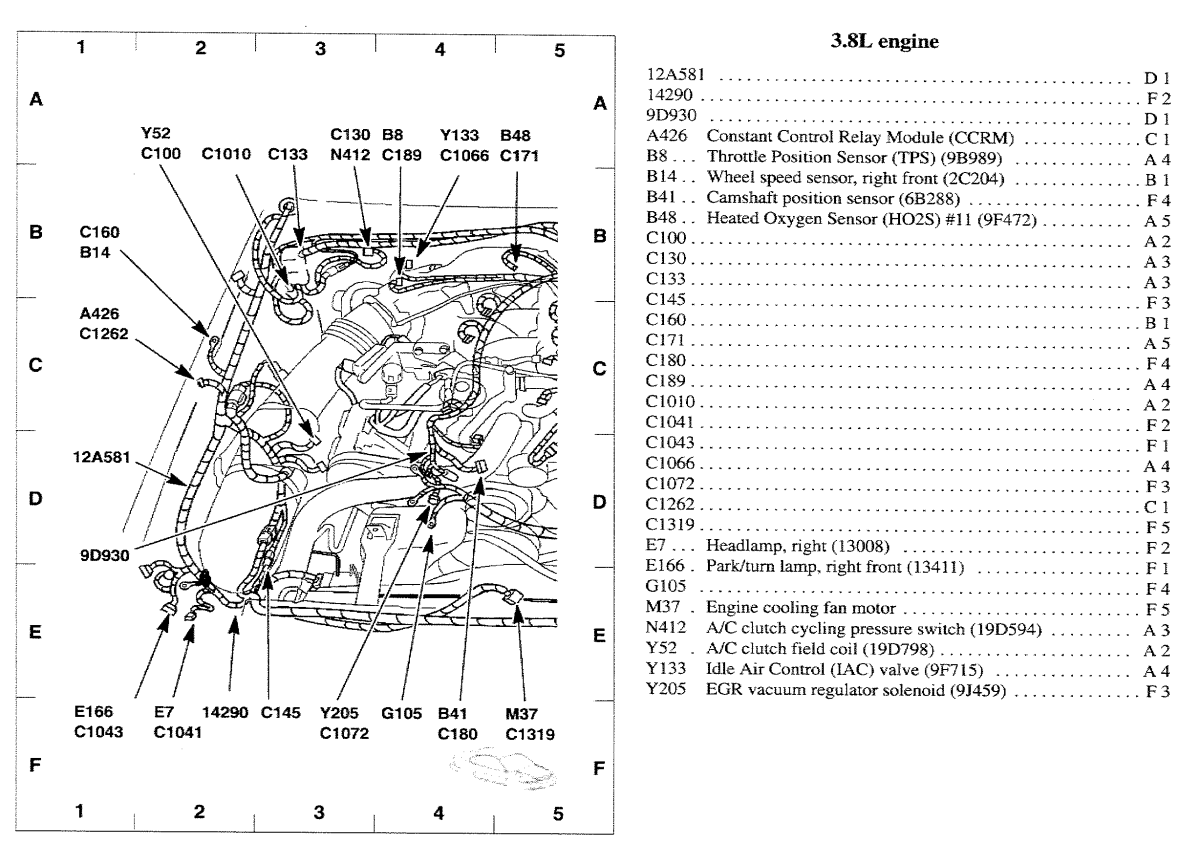

Fig 1: Locating Engine Compartment Electrical Components (3.8L)

Courtesy of FORD MOTOR CO.

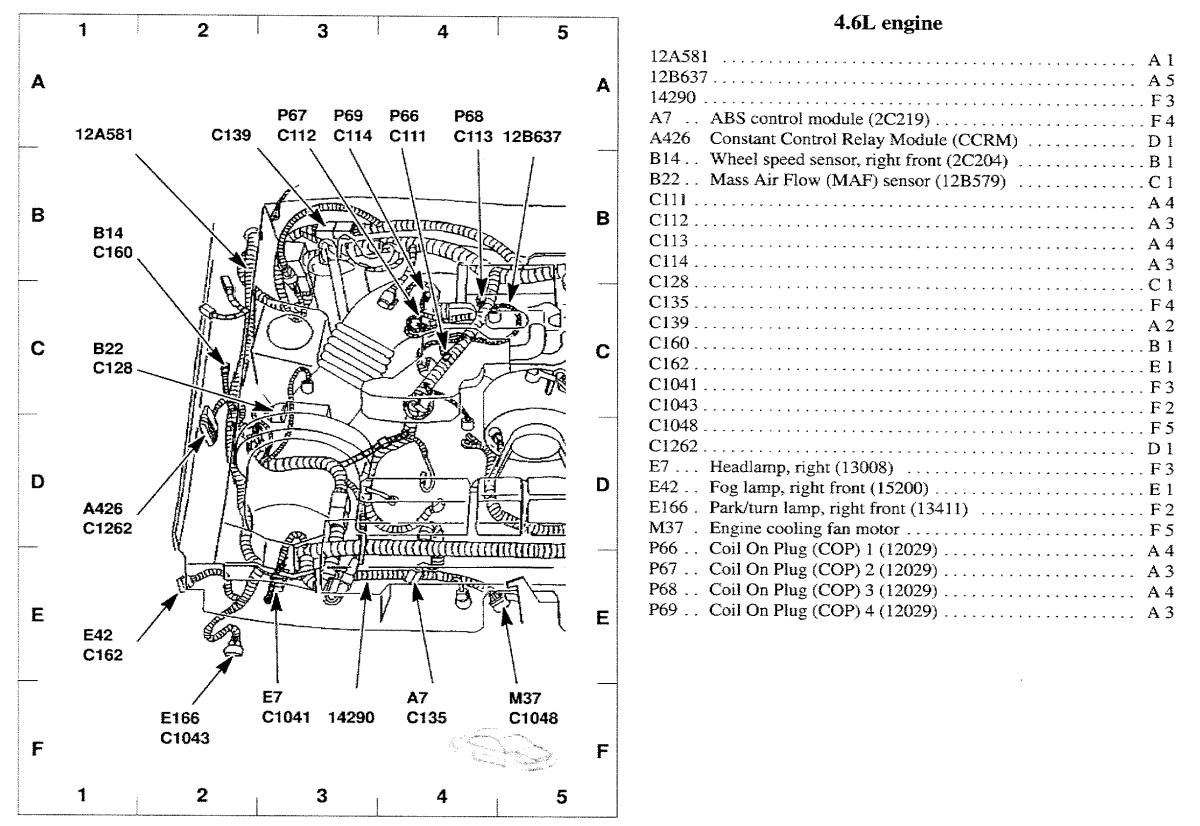

Fig 2: Locating Engine Compartment Electrical Components (4.6L)

Courtesy of FORD MOTOR CO.
