Pinpoint Test A: No Communication With The Anti-Lock Brake System (Abs) Module

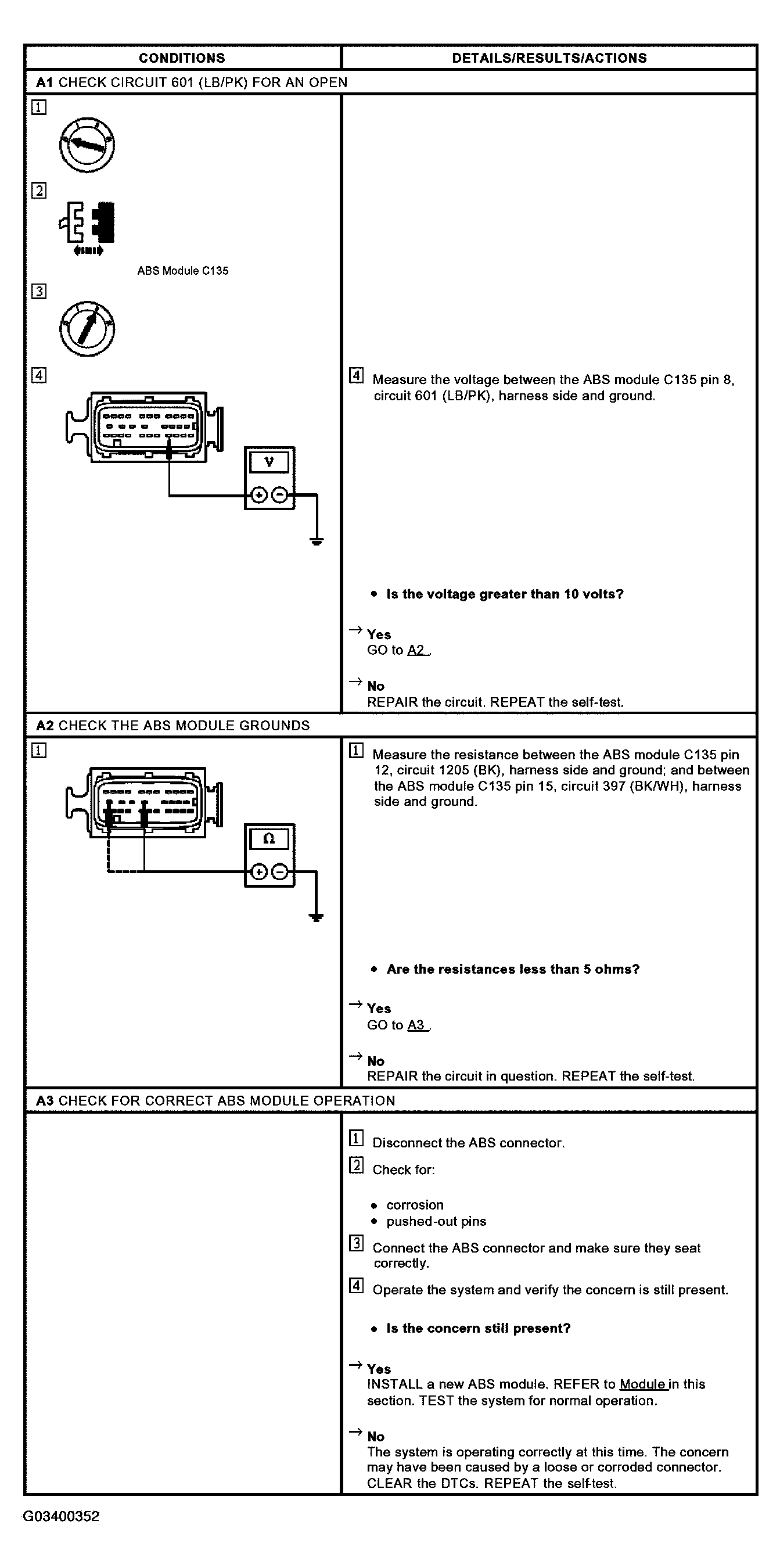

Fig 1: Identifying Pinpoint Test Chart A: No Communication With The Anti-Lock Brake System (ABS) Module (A1-A3)
G03400352Courtesy of FORD MOTOR CO.
