Disassembly And Assembly Of Subassemblies: Piston: Assembly

Lubricate the piston pin and piston pin bore with clean engine oil.

Fig 1: Locating Piston Pin And Bore
Courtesy of FORD MOTOR CO.

NOTE: The connecting rod can be installed in either direction.

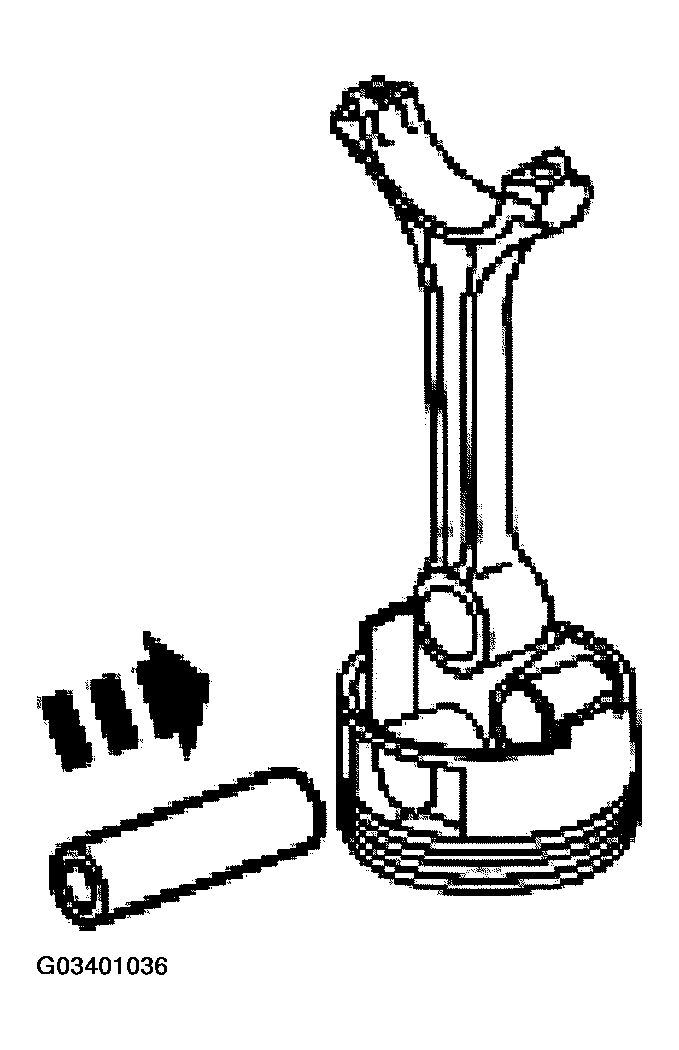

Fig 2: Installing Piston Pin

Courtesy of FORD MOTOR CO.

Position the piston pin in the bore aligned with the connecting rod bore.
Using the special tool, press the piston pin into the piston and rod assembly.

Fig 3: Pressing Piston Pin Into Piston And Rod Assembly
Courtesy of FORD MOTOR CO.
