Engine Support Insulators: Removal

Disconnect the battery ground cable (14301).
Remove the air cleaner outlet tube (9B659).
Remove the radiator sight shield (8C291).

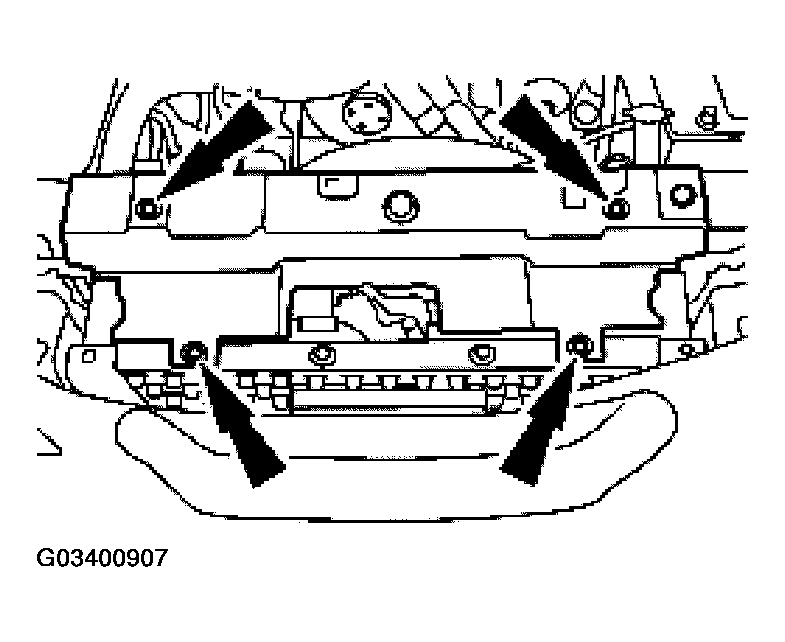

Fig 1: Removing Radiator Sight Shield
Courtesy of FORD MOTOR CO.
Remove the coolant recovery reservoir (8A080).

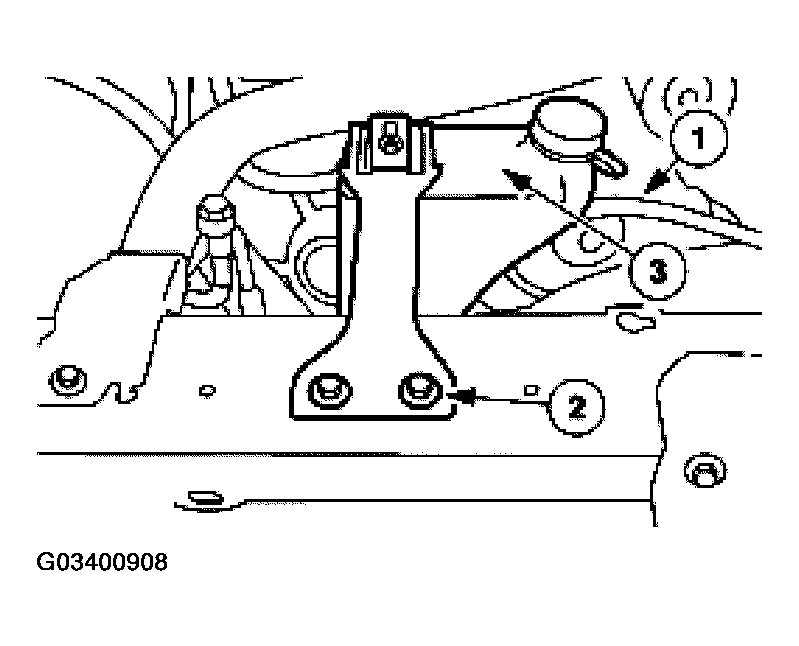

1. Disconnect the hose.
2. Remove the bolts.
3. Remove the coolant recovery reservoir.

  Fig 2: Removing Coolant Recovery Reservoir
  Courtesy of FORD MOTOR CO.

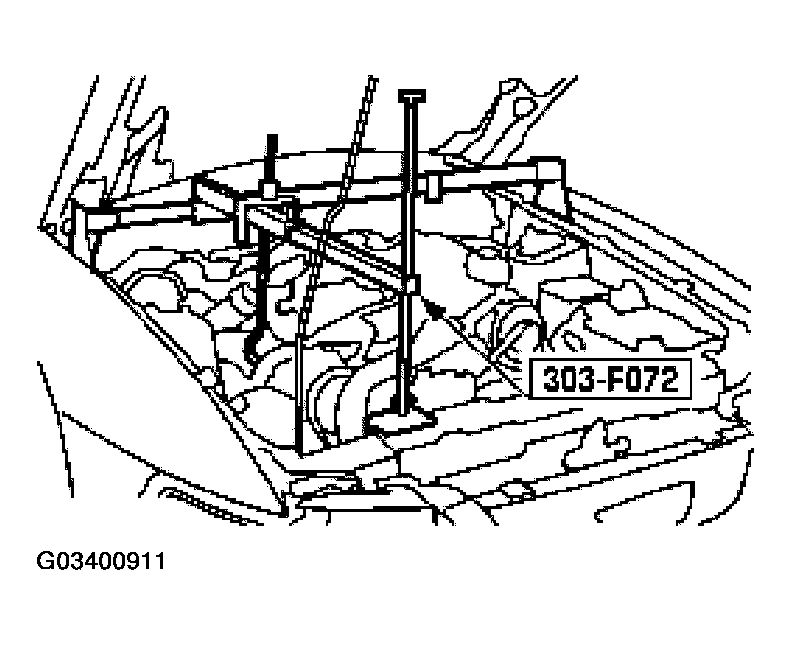

Install the special tool.

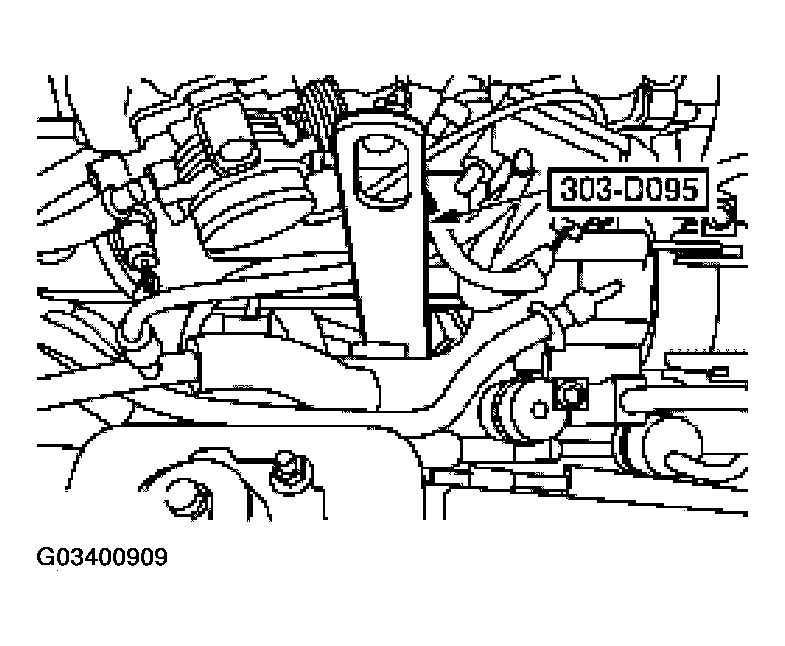

Fig 3: Installing Special Tool
Courtesy of FORD MOTOR CO.
Install the special tool.

Fig 4: Installing Special Tool
Courtesy of FORD MOTOR CO.

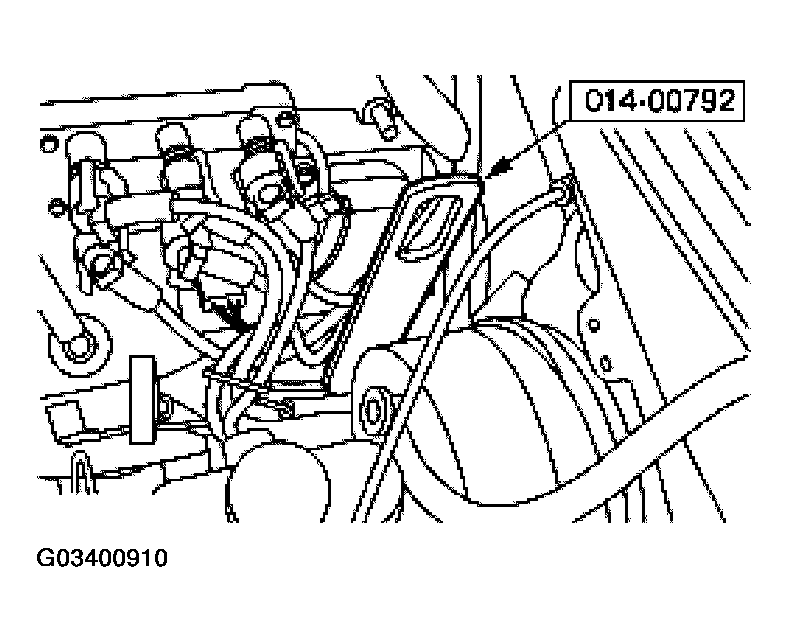

Install the special tool.

Fig 5: Installing Special Tool
Courtesy of FORD MOTOR CO.
Raise the vehicle on a hoist.
Remove the LH engine mount nut.

Fig 6: Removing LH Engine Mount Nut
Courtesy of FORD MOTOR CO.
Remove the RH engine mount nut.

Fig 7: Removing RH Engine Mount Nut
Courtesy of FORD MOTOR CO.
Lower the vehicle.

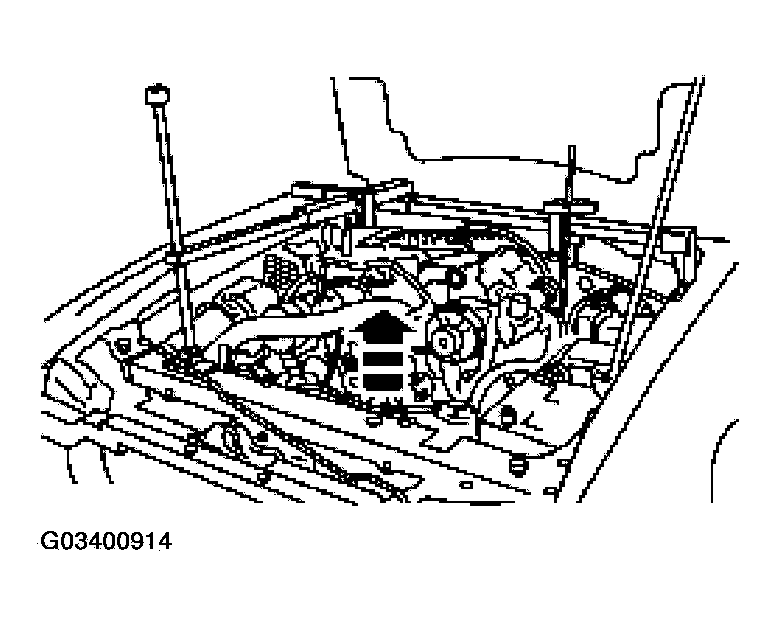

Raise the engine.

Fig 8: Raising Engine
Courtesy of FORD MOTOR CO.
Raise the vehicle on a hoist.
Position the bracket aside.

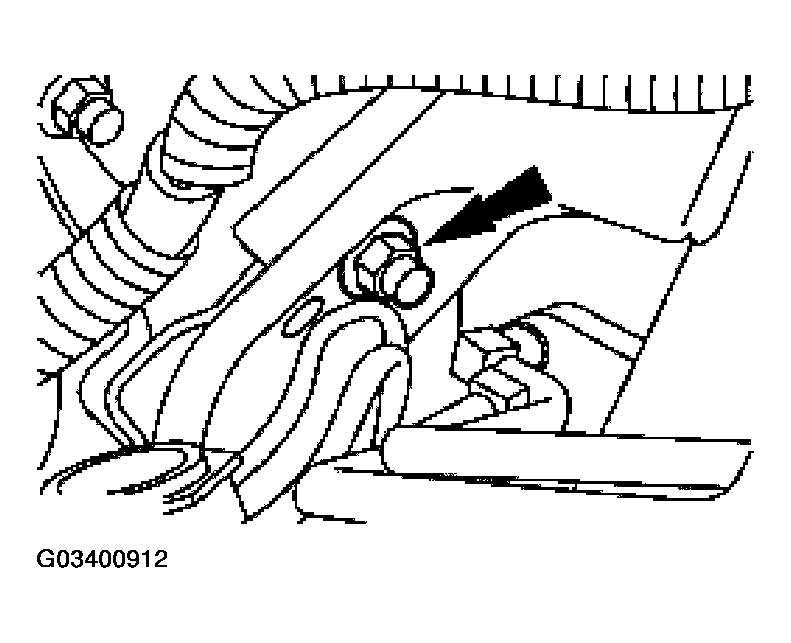

- Remove the nut.

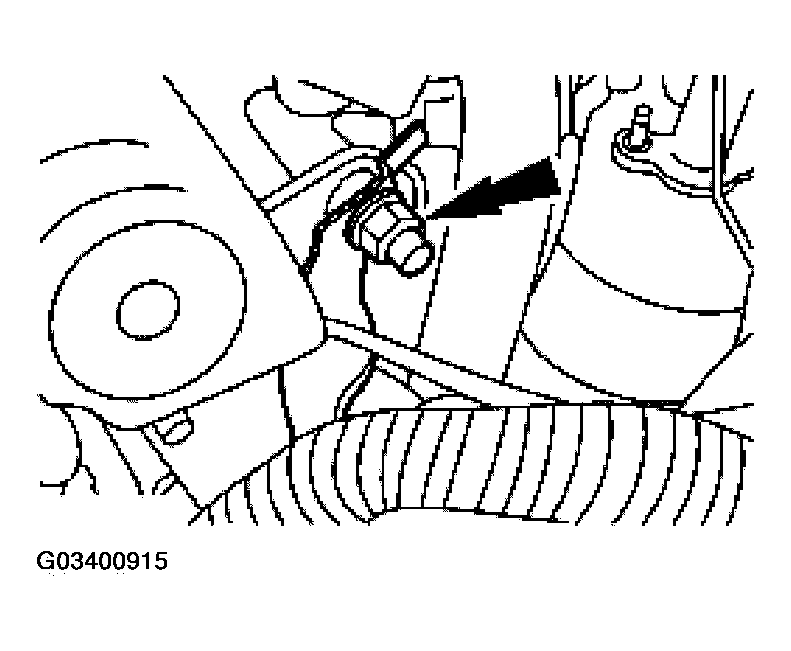

  Fig 9: Removing Nut
  Courtesy of FORD MOTOR CO.
Disconnect the engine ground strap.

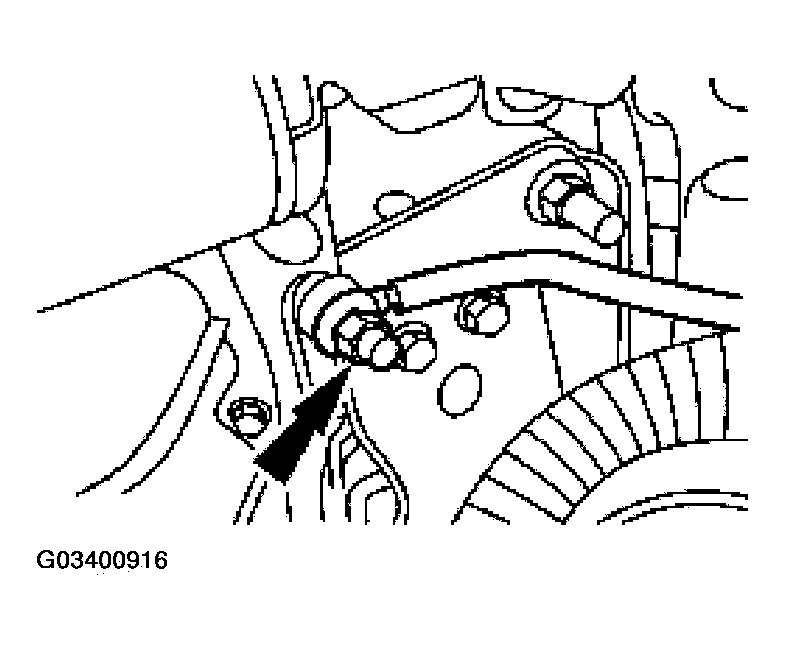

- Remove the nut.

  Fig 10: Disconnecting Engine Ground Strap
  Courtesy of FORD MOTOR CO.
Remove the LH engine insulator (6038).

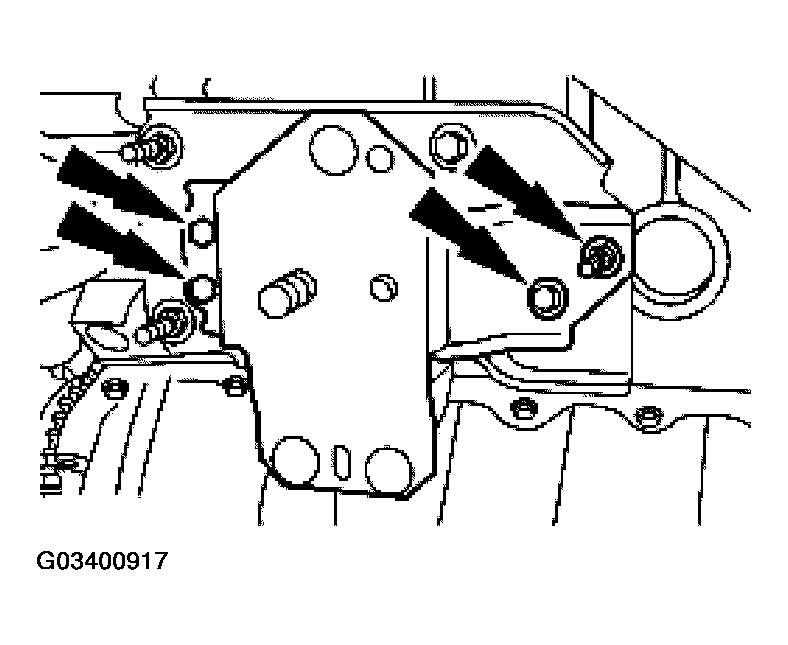

- Remove the bolts.

  Fig 11: Removing LH Engine Insulator
  Courtesy of FORD MOTOR CO.
Remove the RH engine insulator.
- Remove the bolts.
- Remove the nuts.

  Fig 12: Removing RH Engine Insulator
  Courtesy of FORD MOTOR CO.
