Valve Spring: Installation

    NOTE: Lubricate the parts with clean engine oil.
  1. To install, reverse the removal procedure. Tighten the rocker arm bolts in two stages.
    1. Stage 1: Tighten to 5 N.m (44 lb-in).
    2. Stage 2: Tighten to 35 N.m (26 lb-ft).

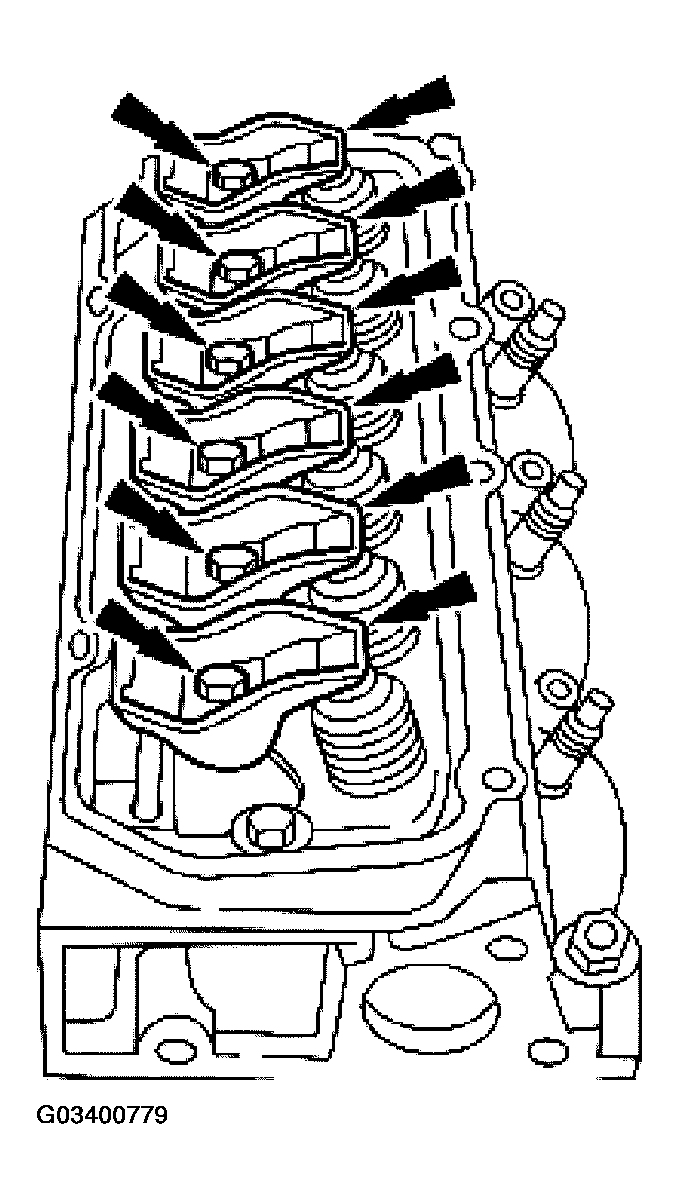

      Fig 1: Tightening Rocker Arm Bolts
      G03400779Courtesy of FORD MOTOR CO.
