Connecting Rod - Bend

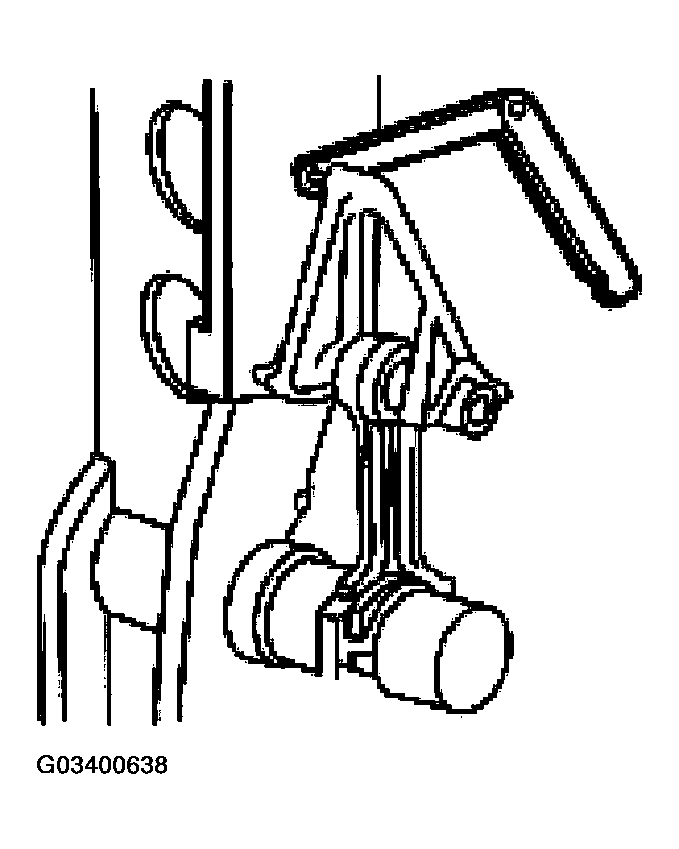

- Measure the connecting rod bend on a suitable alignment fixture. Follow the instructions of the fixture manufacturer. Verify the bend measurement is within specification.
- Refer to GENERAL SPECIFICATIONS for 3.8L engines or GENERAL SPECIFICATIONS for 4.6L engines.
- If out of specification, install new components as necessary. Refer to PISTON for 3.8L engines or PISTON for 4.6L engines.
