Disassembly And Assembly Of Subassemblies: Piston: Disassembly

WARNING: This page is about a different variant/trim than selected.

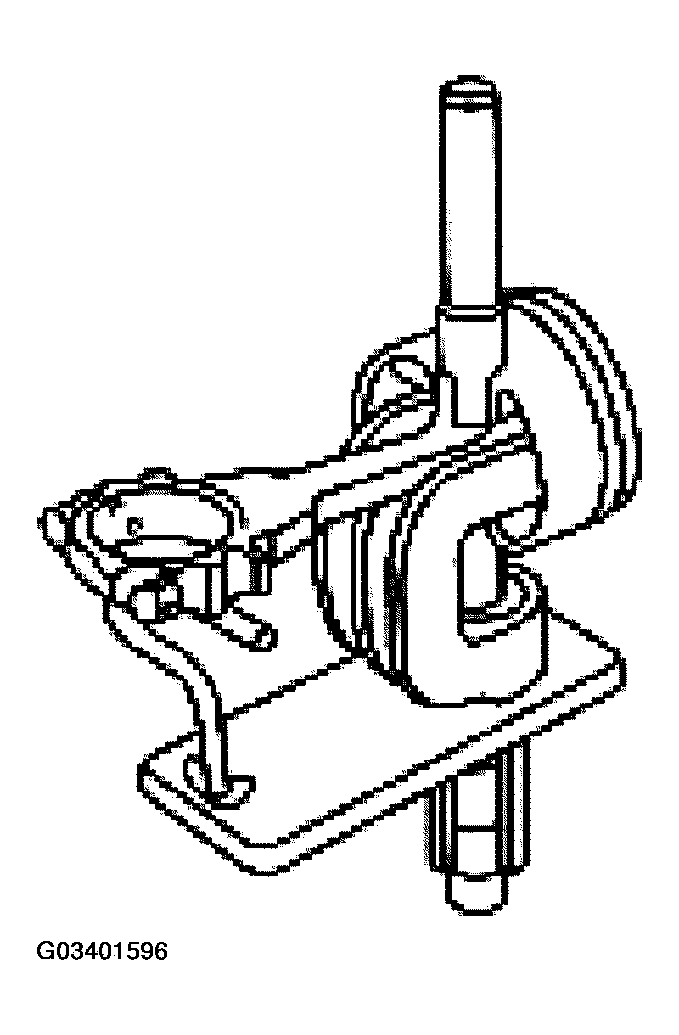

  1. Press the piston pin out of the connecting rod and piston assembly.
    Fig 1: Pressing Piston Pin Out Of Connecting Rod And Piston Assembly
    G03401596Courtesy of FORD MOTOR CO.

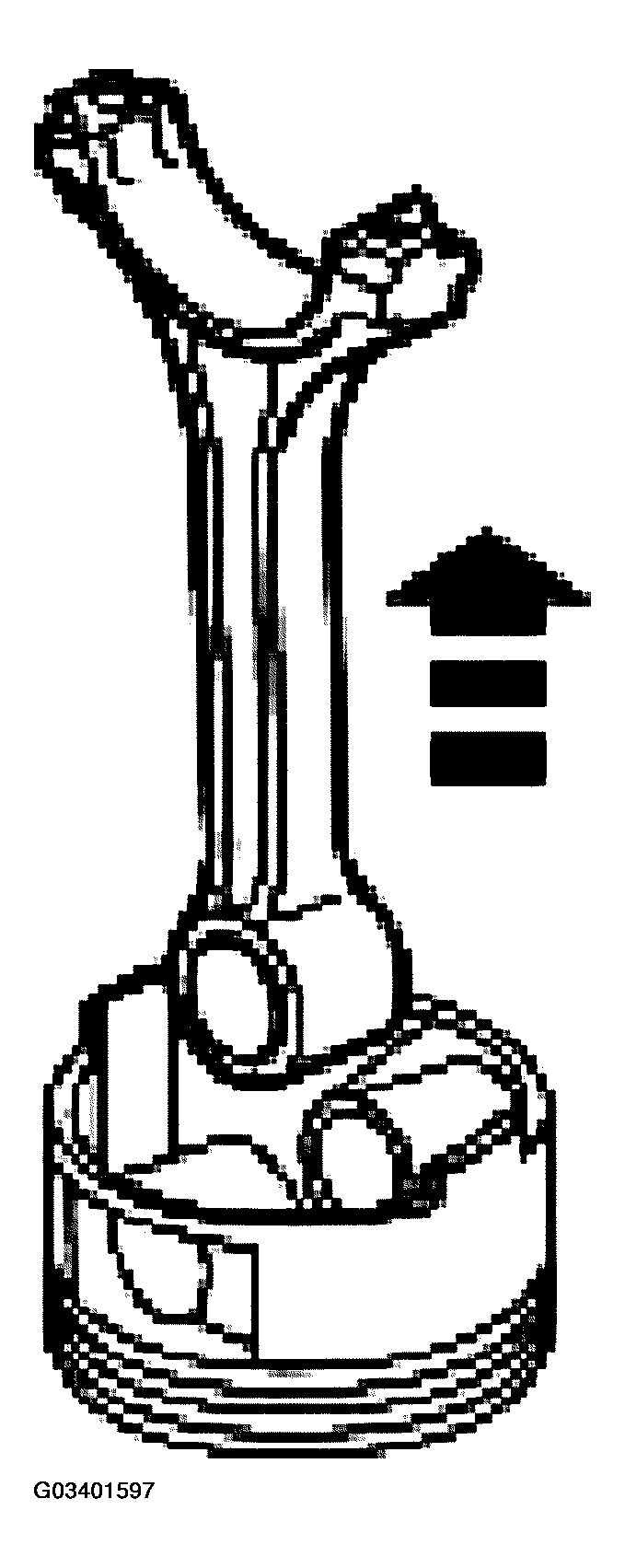

  2. Remove the connecting rod from the piston.
    Fig 2: Removing Connecting Rod From Piston
    G03401597Courtesy of FORD MOTOR CO.
  3. Clean and inspect the piston and connecting rod. Refer to ENGINE SYSTEM-GENERAL INFORMATION .
