Removal and Installation

Disconnect the battery. .
Remove the ignition switch lock cylinder.
1. Insert the ignition key and turn to the RUN position.

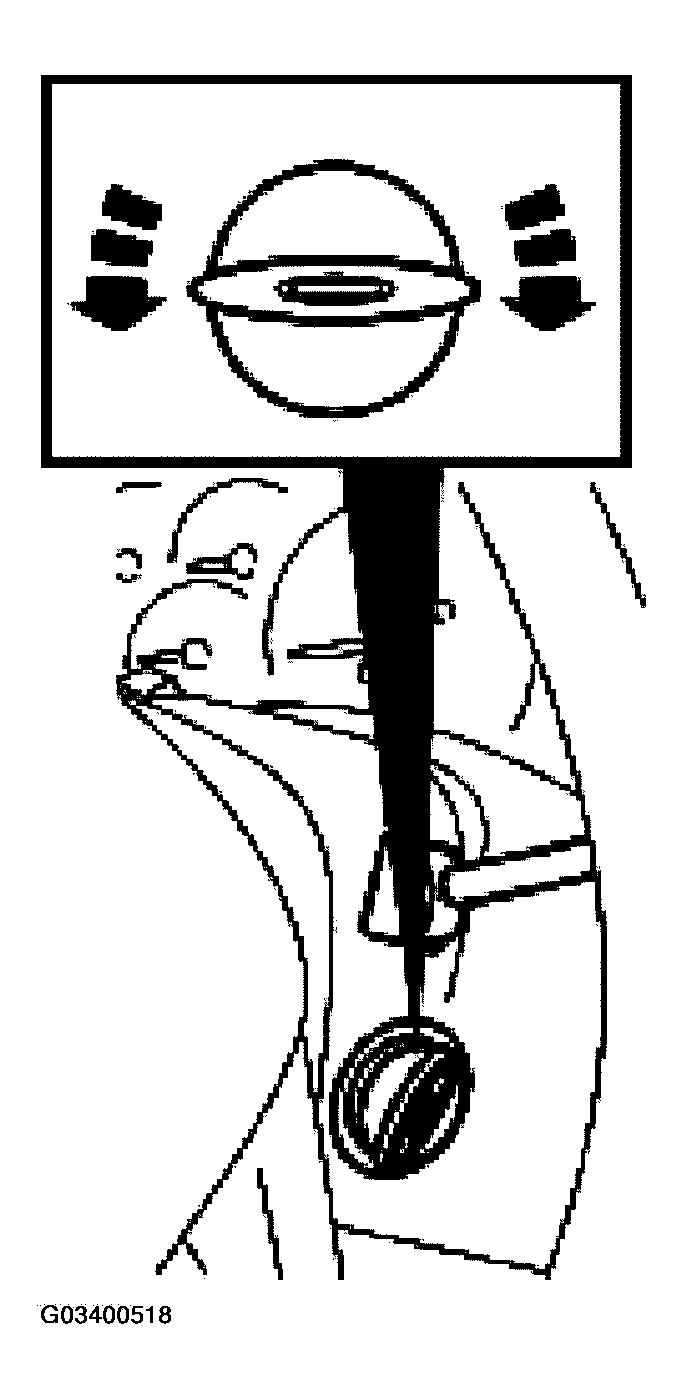

  Fig 1: Removing Ignition Switch Lock Cylinder
  Courtesy of FORD MOTOR CO.
2. Using a 1/8-inch drift, press the ignition switch lock cylinder release pin through the access hole while pulling out the ignition switch lock cylinder.
To install, reverse the removal procedure.
- Verify ignition switch lock cylinder operation.

  Fig 2: Identifying Ignition Switch Lock Cylinder Operation
  Courtesy of FORD MOTOR CO.
