Removal And Installation: Bezel: Removal

Remove the shifter top control panel.

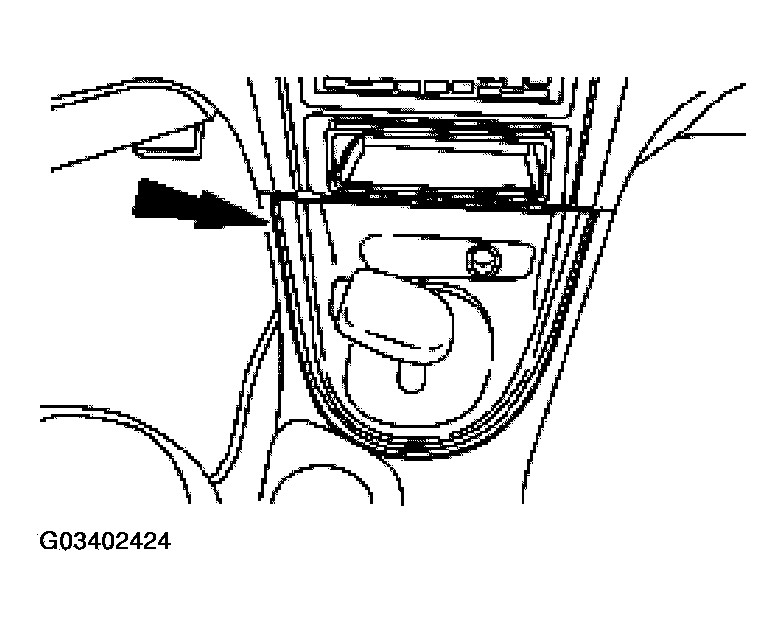

Fig 1: Removing Shifter Top Control Panel
Courtesy of FORD MOTOR CO.
Disconnect the electrical connectors.

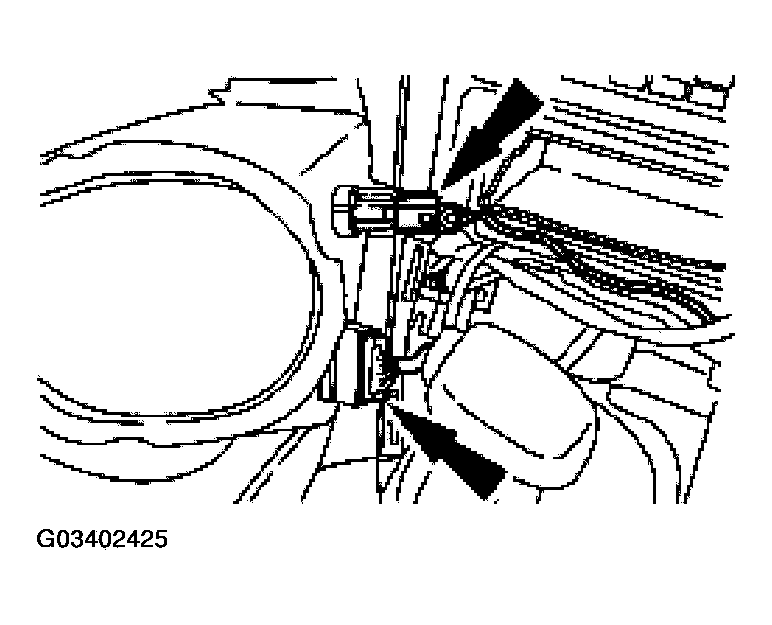

Fig 2: Disconnecting Electrical Connectors
Courtesy of FORD MOTOR CO.
Remove the shifter bezel.

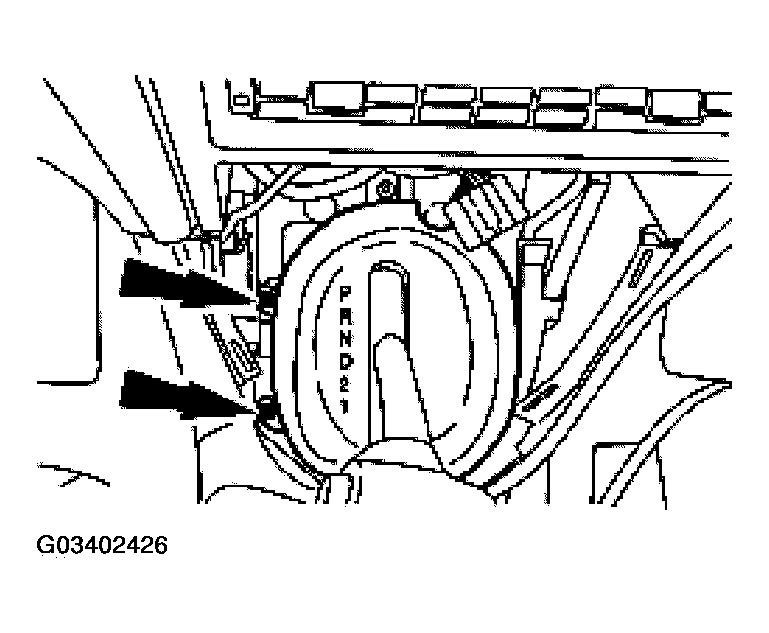

Fig 3: Removing Shifter Bezel
Courtesy of FORD MOTOR CO.
Remove the bulb from the bezel.

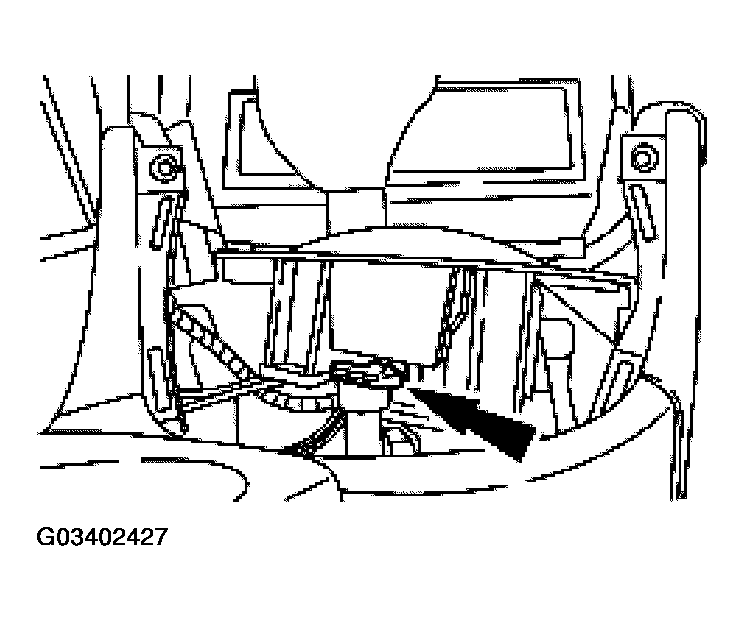

Fig 4: Removing Bulb From Bezel
Courtesy of FORD MOTOR CO.
Disconnect the connector.

Fig 5: Disconnecting Connector
Courtesy of FORD MOTOR CO.

CAUTION: Extra force may be needed to lift up on the handle. Do not to pull too far or damage to the overdrive cancel button may result, as the wires may be pulled out of the switch.

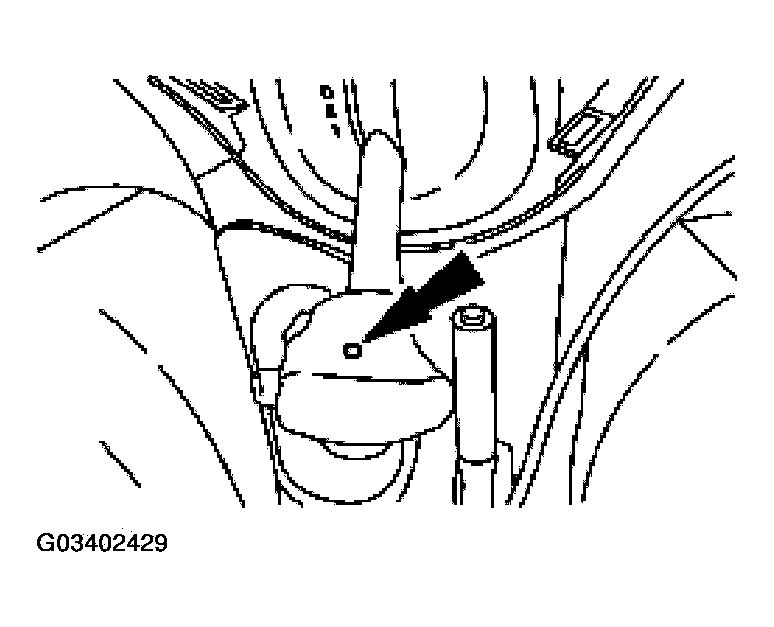

Fig 6: Removing Screw And Handle

Courtesy of FORD MOTOR CO.

Remove the screw and the handle.
Remove the bezel.
