1-2 Accumulator: Installation

  1. Install the 1-2 accumulator.
    1. Install the 1-2 accumulator upper spring.
    2. Install the accumulator piston.
    3. Install the 1-2 accumulator lower spring.
    4. Install the cover and seal assembly.

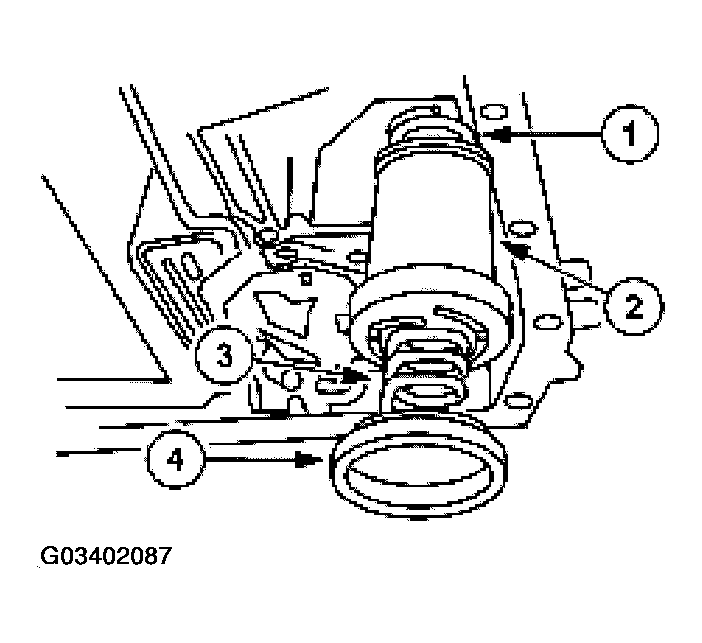

      Fig 1: Installing Cover And Seal Assembly
      G03402087Courtesy of FORD MOTOR CO.
  2. Compress the accumulator and install the accumulator piston retaining ring.

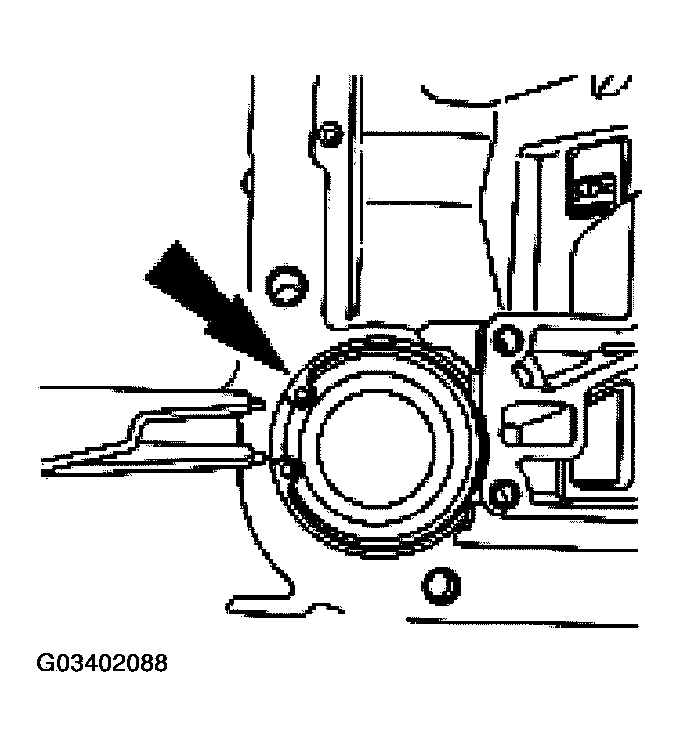

    Fig 2: Compressing Accumulator
    G03402088Courtesy of FORD MOTOR CO.
