Component Locations

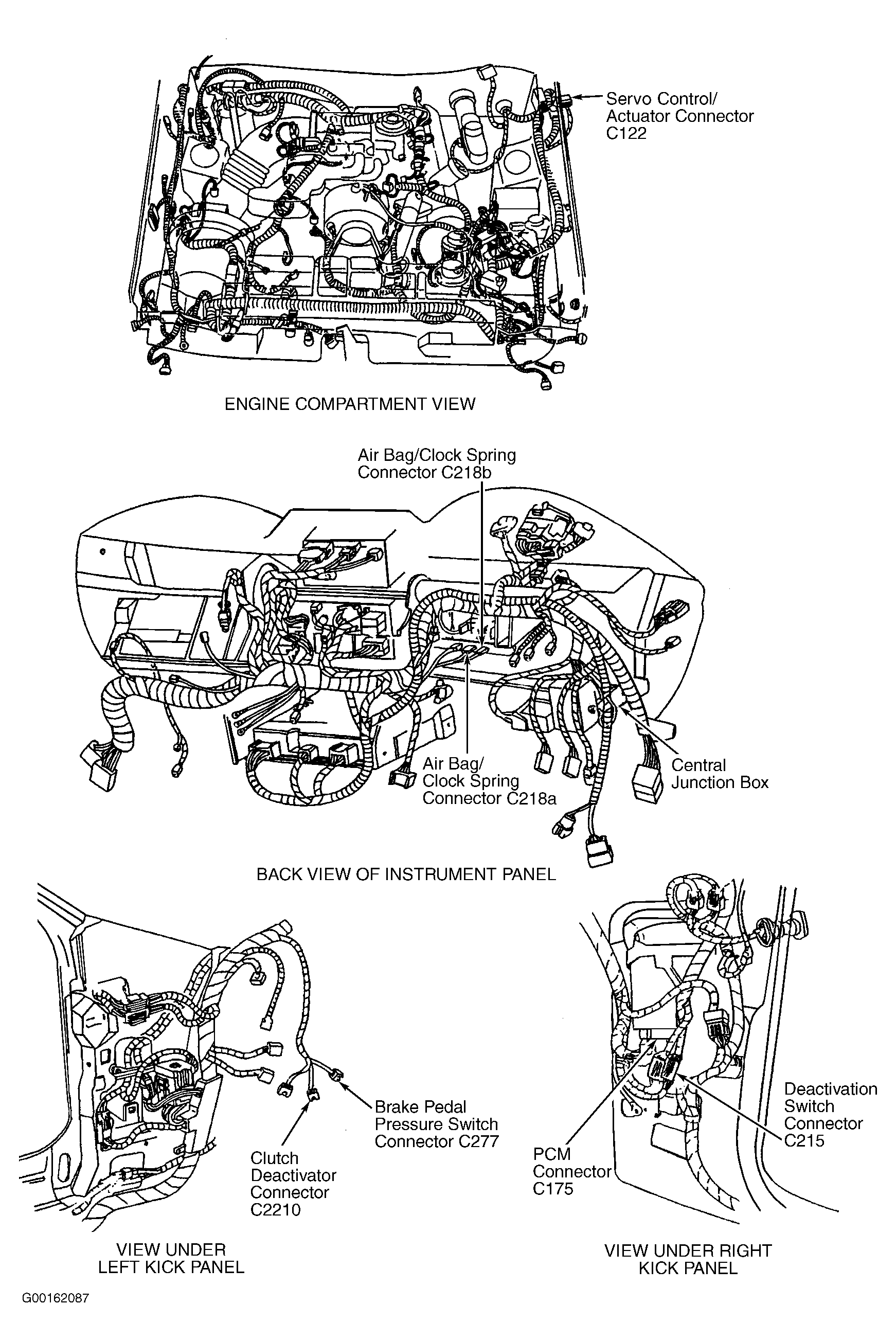

COMPONENT LOCATIONS
| Component | Location |
|---|---|
| Brake Pedal Position Switch | Under Left Side Of Instrument Panel, On Brake Pedal Bracket |
| Brake Pressure Switch | Under Left Side Of Instrument Panel, Near Brake Pedal Bracket |
| Central Junction Box | Behind Left Side Of Instrument Panel |
| Clutch Pedal Position Switch | Under Left Side Of Instrument Panel, On Clutch Pedal Bracket |
| Deactivator Switch | Under Left Side Of Instrument Panel, On Brake Pedal Bracket |
| Output Shaft Speed Sensor | Left Side Of Transmission |
| Powertrain Control Module | Behind Passenger's Side Kick Panel |
| Speed Control Servo/Actuator | Behind Left Front Fenderwell |
| Speed Control Switch | On Steering Wheel |
