Disassembly And Assembly Of Subassemblies: Synchronizers: Assembly

NOTE: Both synchronizer hub insert springs engage the same synchronizer hub insert but rotate in the opposite direction.

NOTE: The third/fourth speed synchronizer uses the winged synchronizer hub inserts.

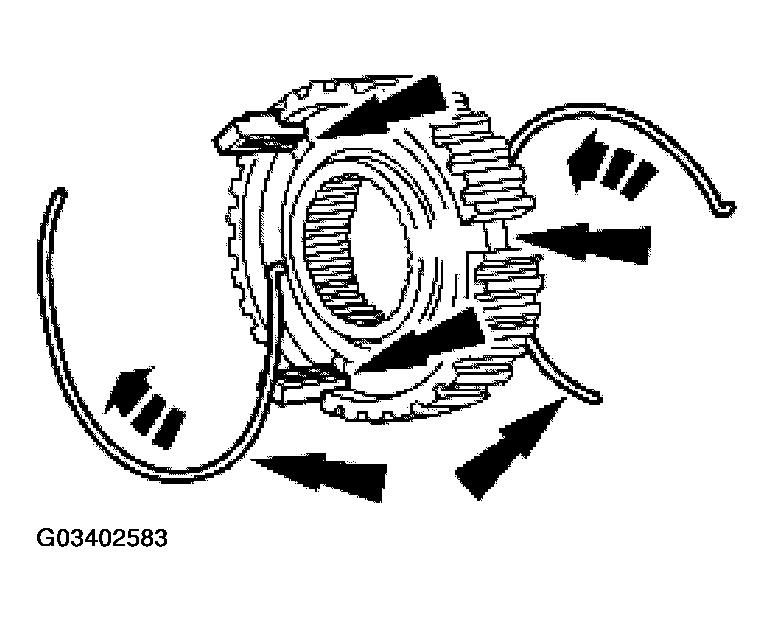

Fig 1: Installing Synchronizer Hub Inserts And Hub Insert Springs (1 Of 2)

Courtesy of FORD MOTOR CO.

Fig 2: Installing Synchronizer Hub Inserts And Hub Insert Springs (2 Of 2)

Courtesy of FORD MOTOR CO.

Install the synchronizer hub inserts and the hub insert springs. Verify that the spring tabs are positioned over the hub inserts.

CAUTION: Match the alignment marks made during disassembly. The sleeve and the hub have an extremely close fit. Hold the sleeve and hub square to prevent jamming. Do not force the sleeve onto the hub.

On the third/fourth speed synchronizer and the fifth speed synchronizer, install the sliding sleeve.
