Description And Operation
›
Main Components And Functions
›
Transmission Main Components - Sectional View
Transmission Main Components - Sectional View

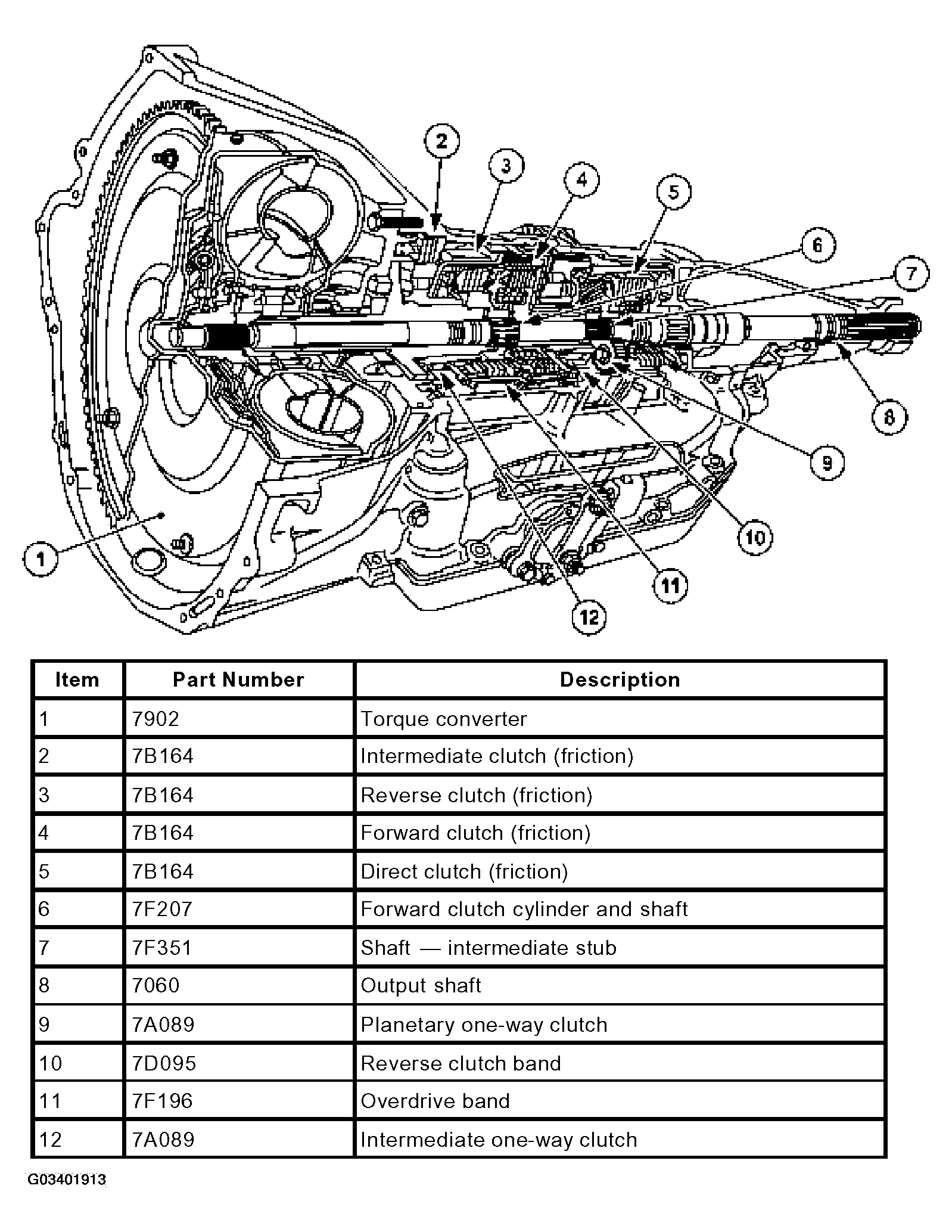

Fig 1: Identifying Transmission Main Components
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
