Pinpoint Test K: The Traction Control Indicator Is Inoperative-Traction Control Switch

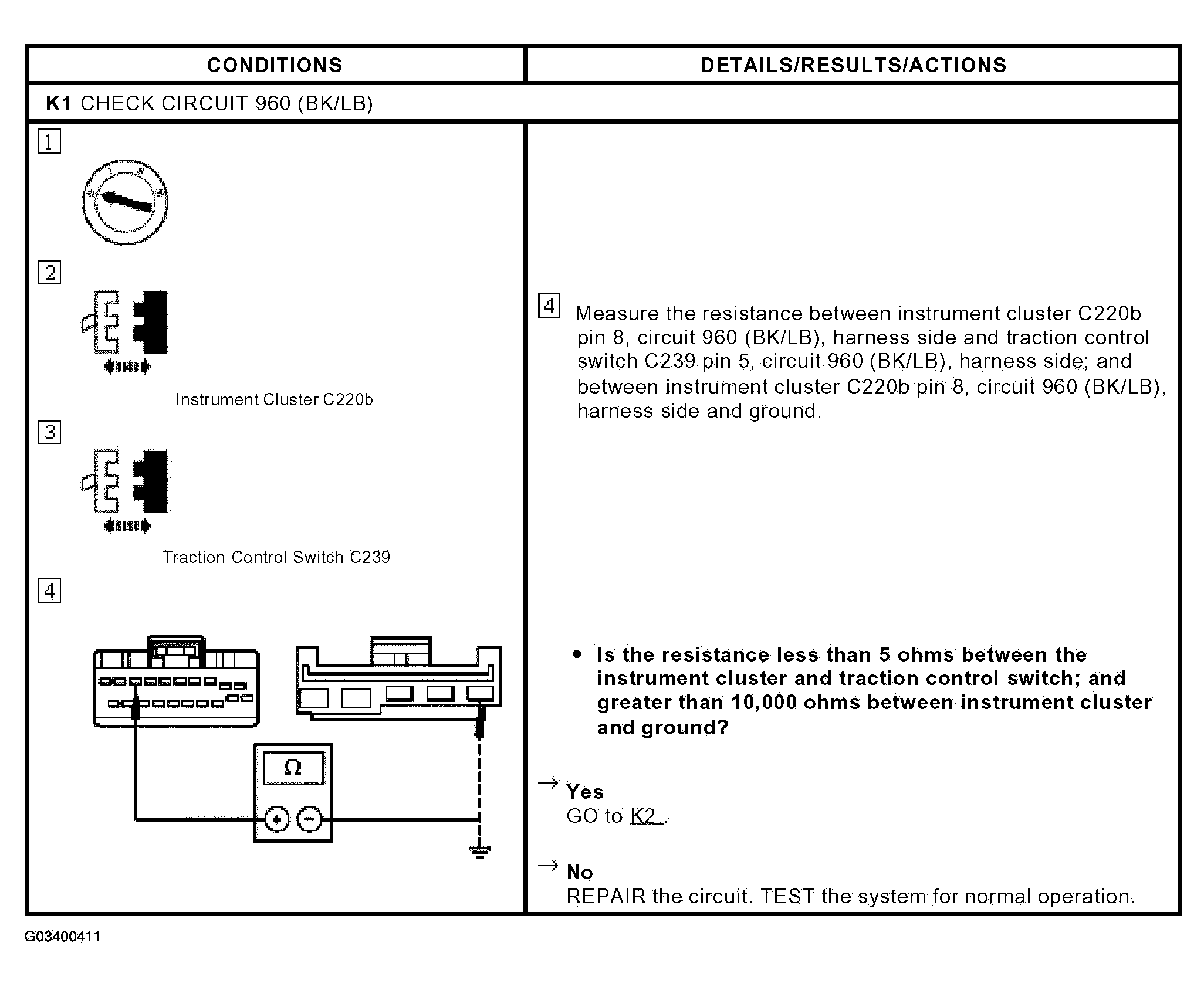

Fig 1: Identifying Pinpoint Test Chart K: Traction Control Indicator Is Inoperative-Traction Control Switch (K1)
G03400411Courtesy of FORD MOTOR CO.

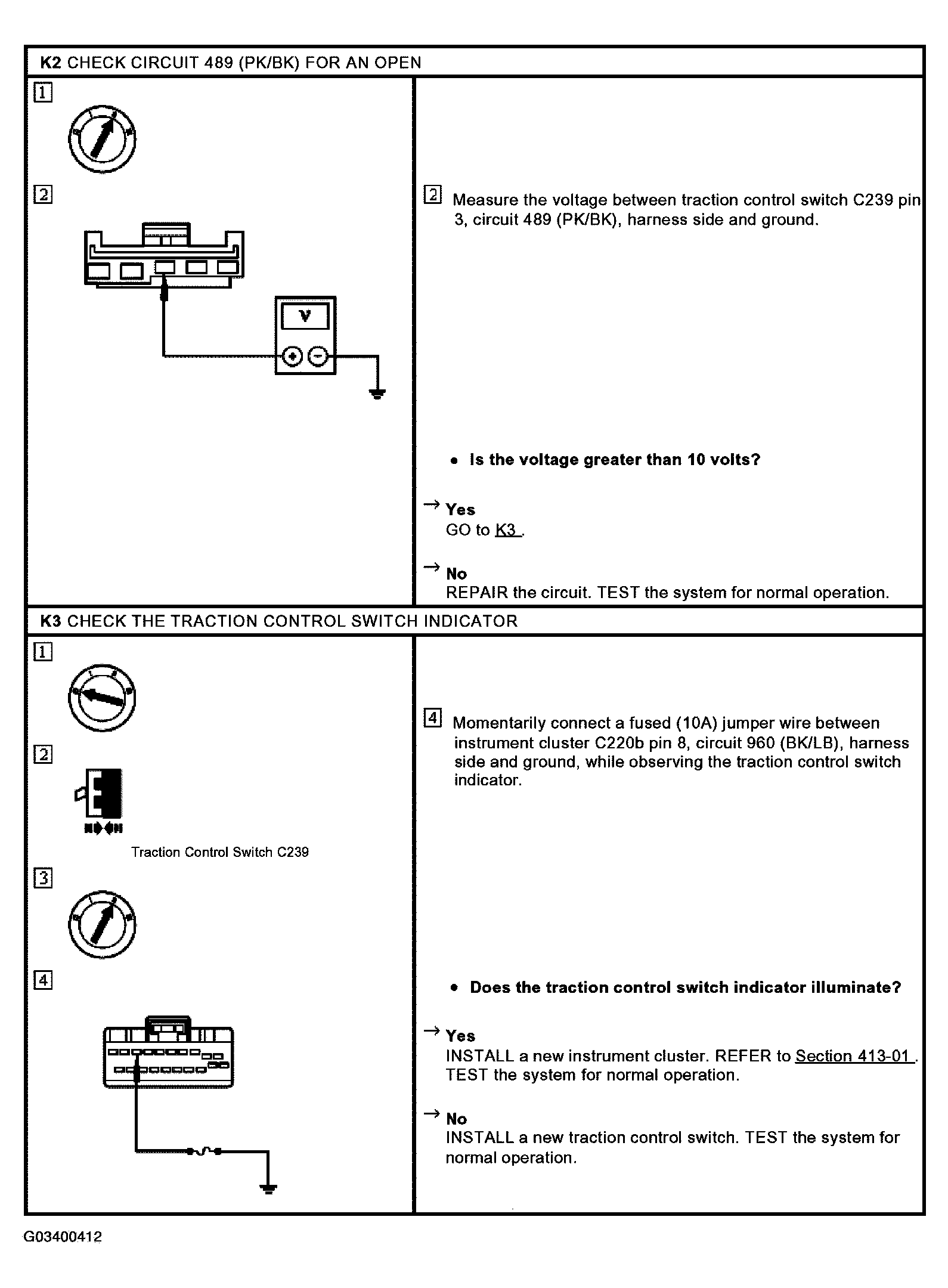

Fig 2: Identifying Pinpoint Test Chart K: Traction Control Indicator Is Inoperative-Traction Control Switch (K2 & K3)
G03400412Courtesy of FORD MOTOR CO.
