Pinpoint Test F: Navigation System Does Not Operate Correctly - No GPS Signal

WARNING: This page is about a different car, the 2003 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

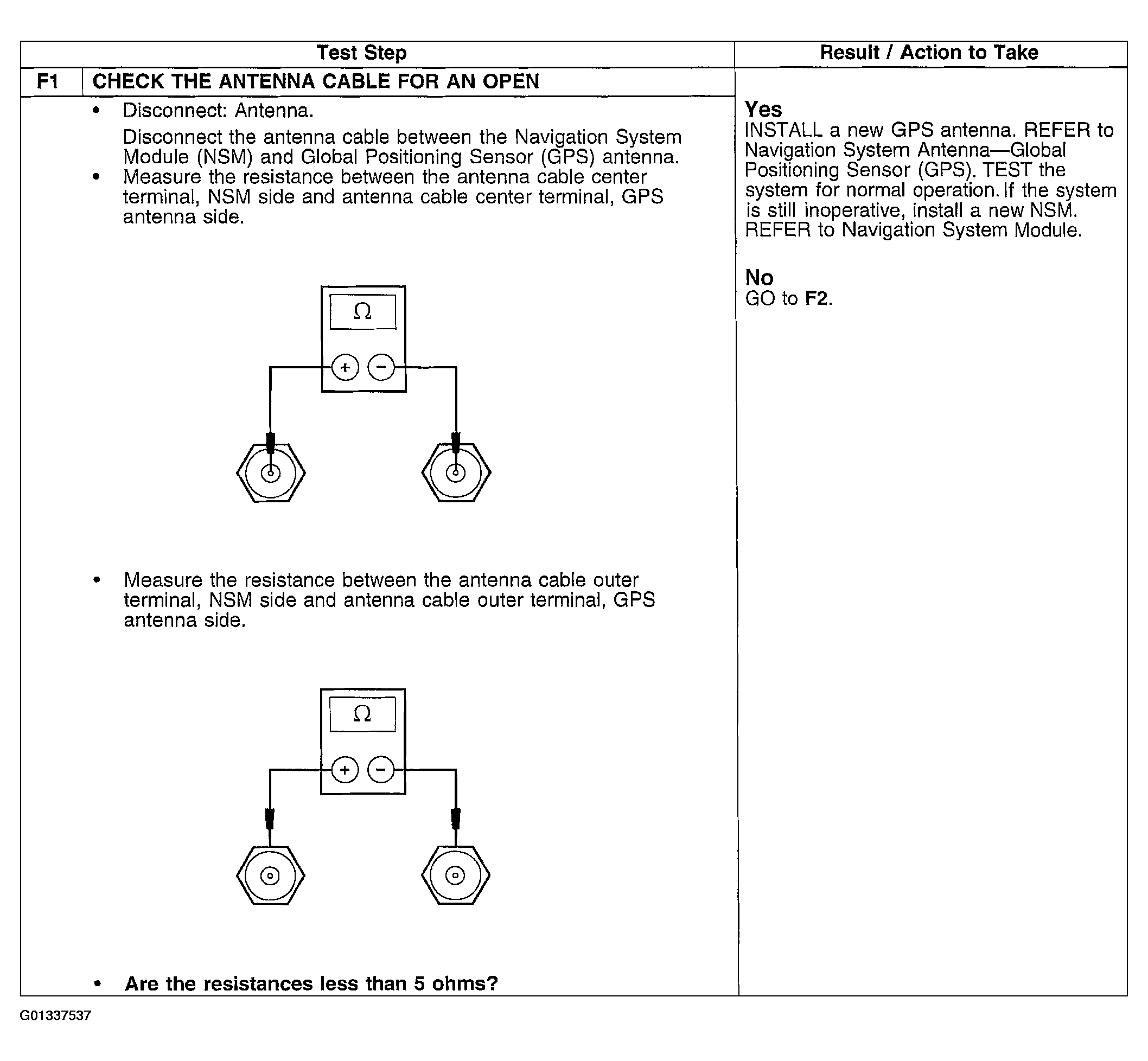

Fig 1: Pinpoint Test F (Step F1)

Courtesy of FORD MOTOR CO.

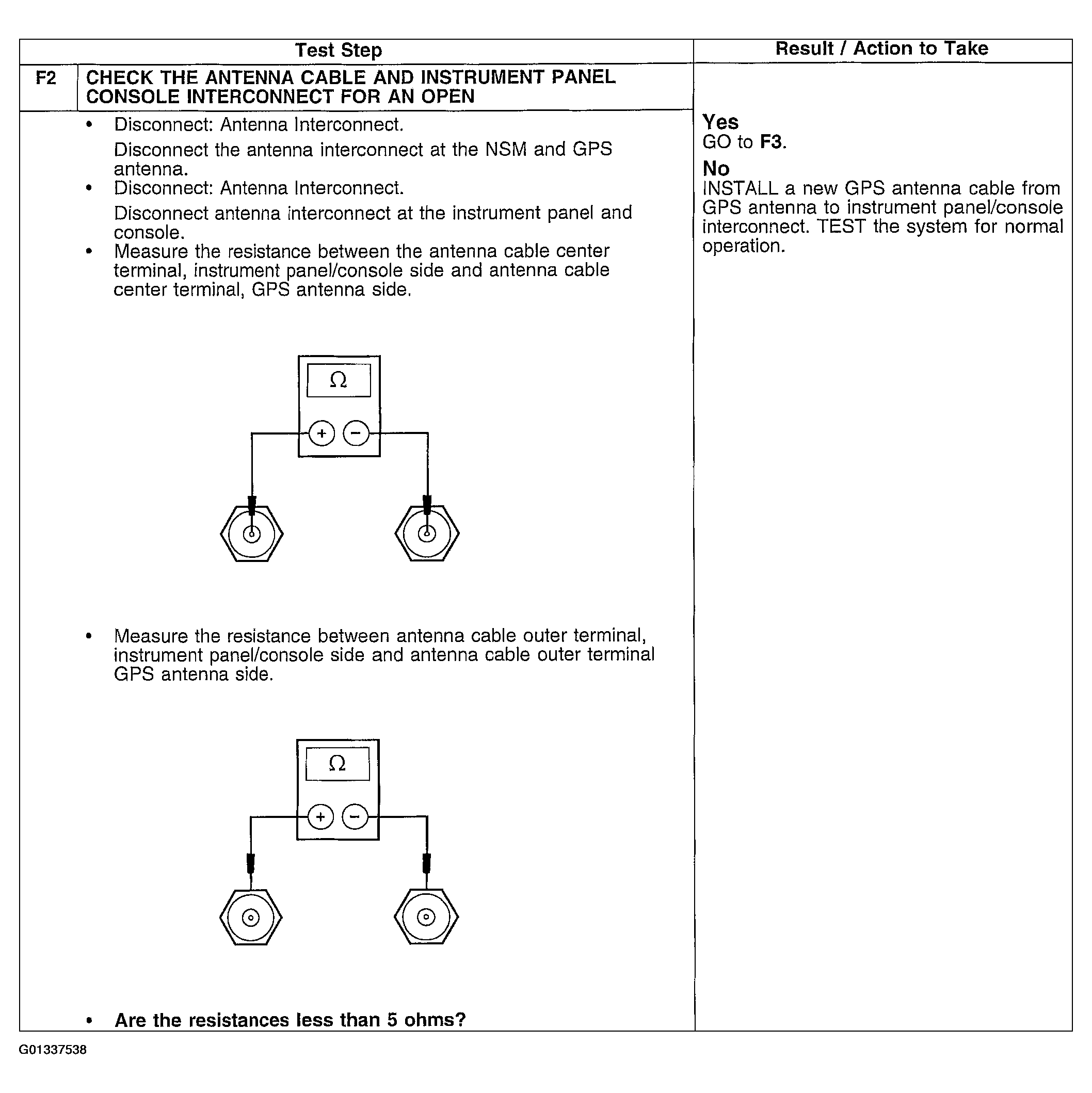

Fig 2: Pinpoint Test F (Step F2)

Courtesy of FORD MOTOR CO.

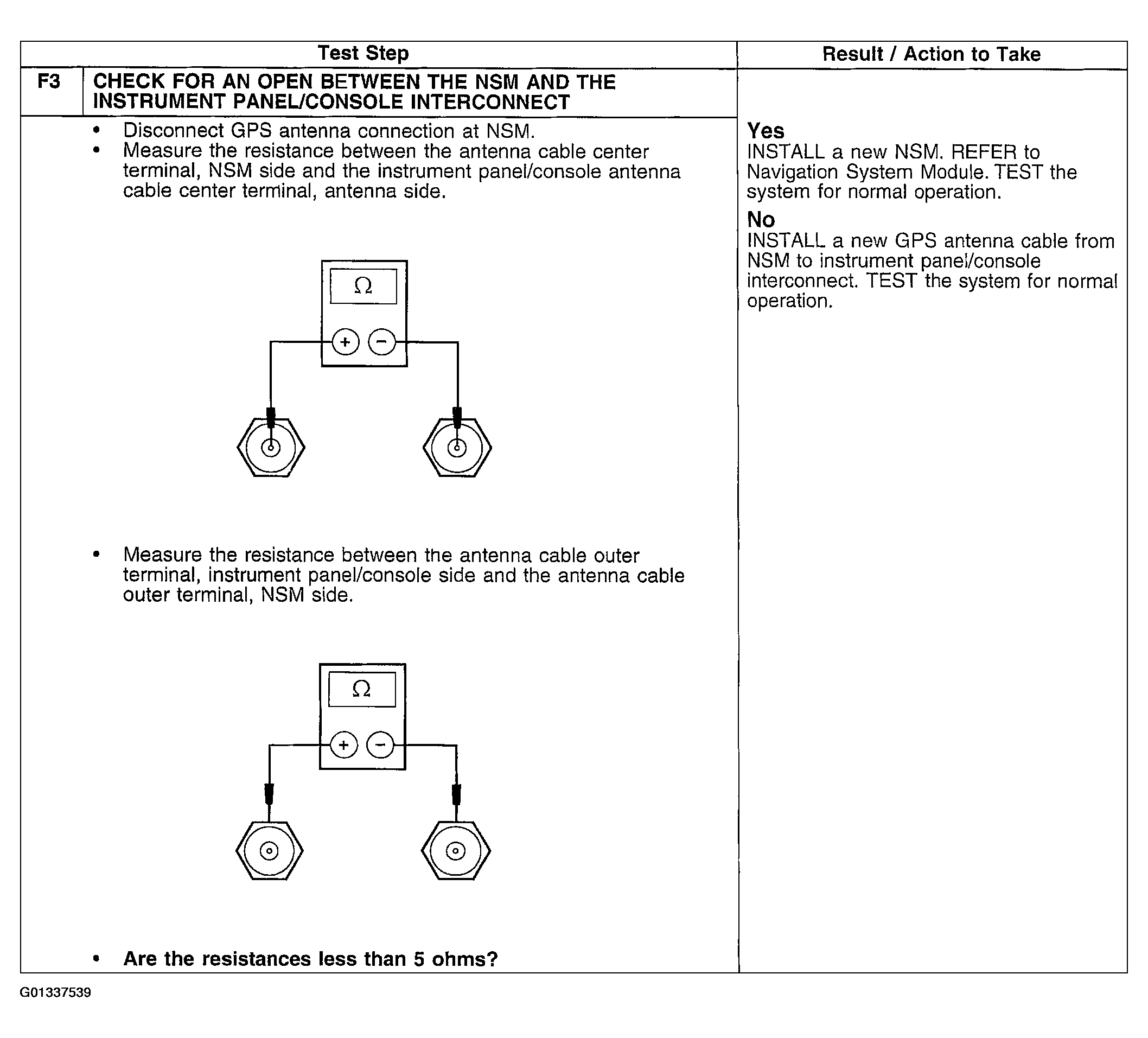

Fig 3: Pinpoint Test F (Step F3)

Courtesy of FORD MOTOR CO.
