Final Drive: Assembly

NOTE: If excessive wobble or rotational binding or damage is found, install a new final drive planet and carrier.

Inspect the differential pinion and side gears for looseness, discoloration, cracks or excessive gear wear.

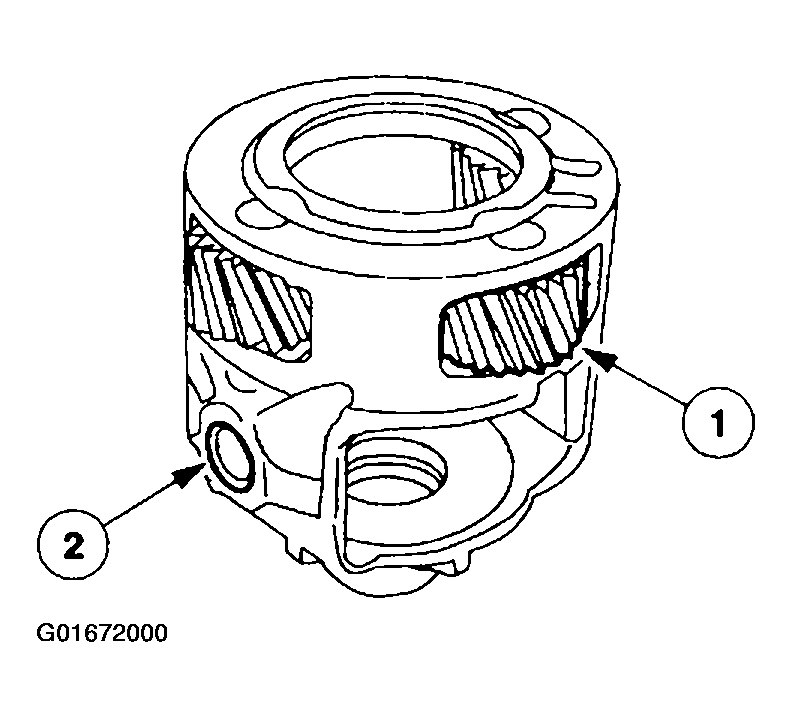

1. Inspect the final drive planet gears
2. Inspect the pinion shaft bores.

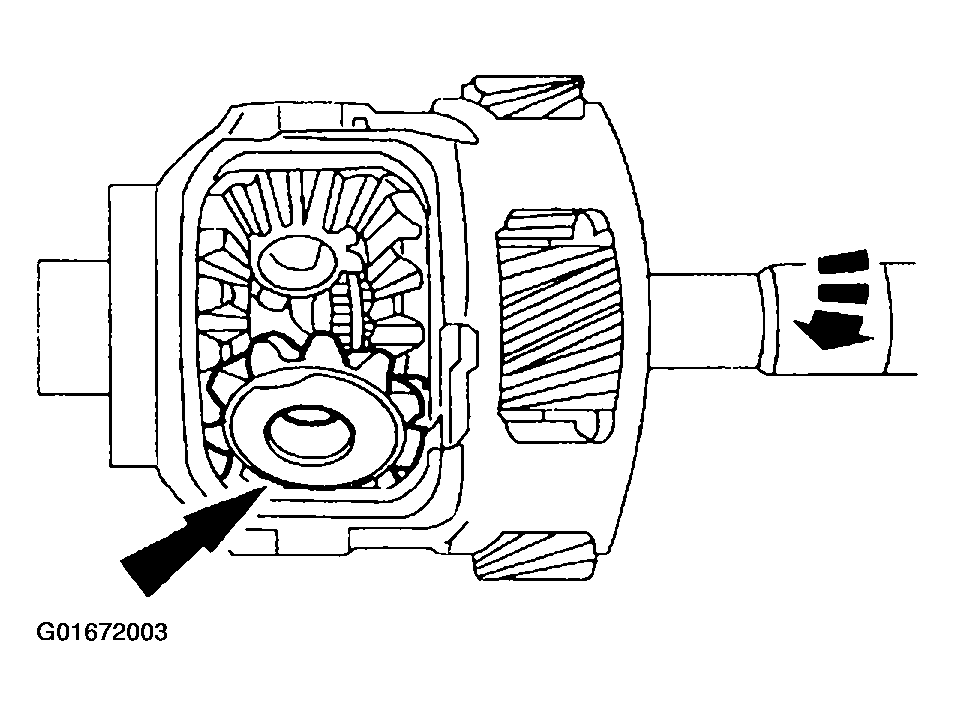

Fig 1: Inspecting Differential Pinion & Side Gears

Courtesy of FORD MOTOR CO.

Install the differential side gear and differential side gear thrust washer.
1. Install the differential side gear and differential side gear thrust washer
2. Install the output shaft
3. Use the snap ring pliers to install the retaining ring.

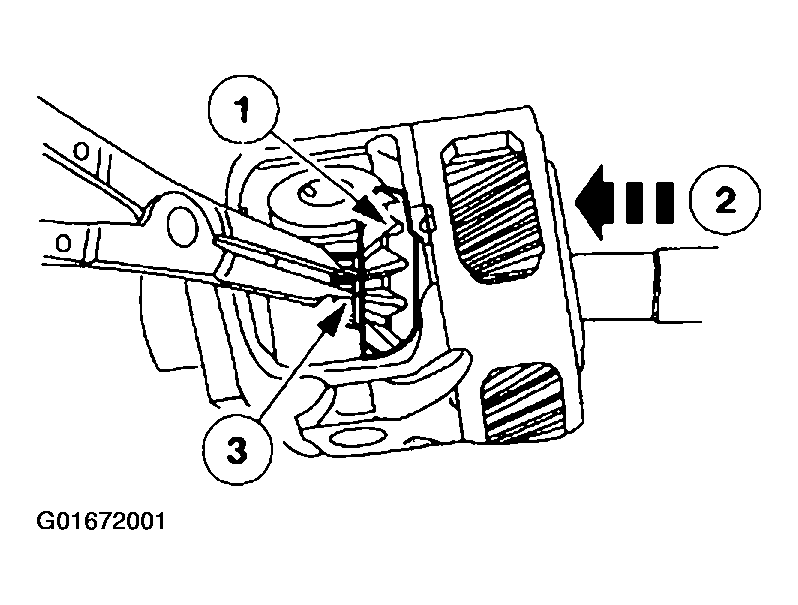

Fig 2: Installing Differential Side Gear & Differential Side Gear Thrust Washer

Courtesy of FORD MOTOR CO.

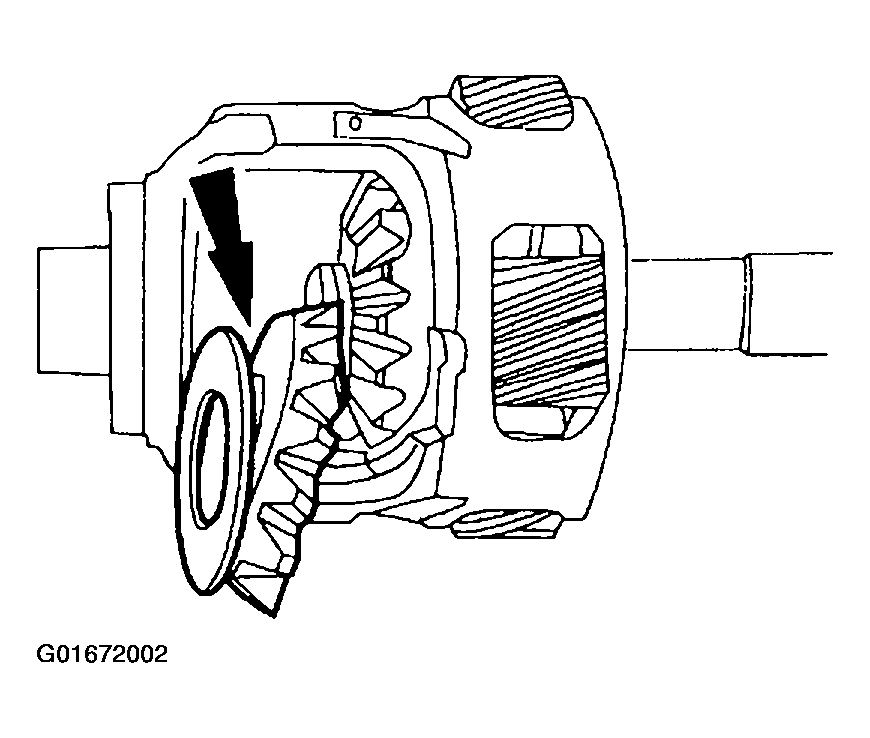

Fig 3: Installing Differential Side Gears & Thrust Washers

Courtesy of FORD MOTOR CO.

Fig 4: Installing Differential Pinion Gears & Differential Pinion Thrust Washers

Courtesy of FORD MOTOR CO.

Fig 5: Installing Differential Pinion Shaft

Courtesy of FORD MOTOR CO.

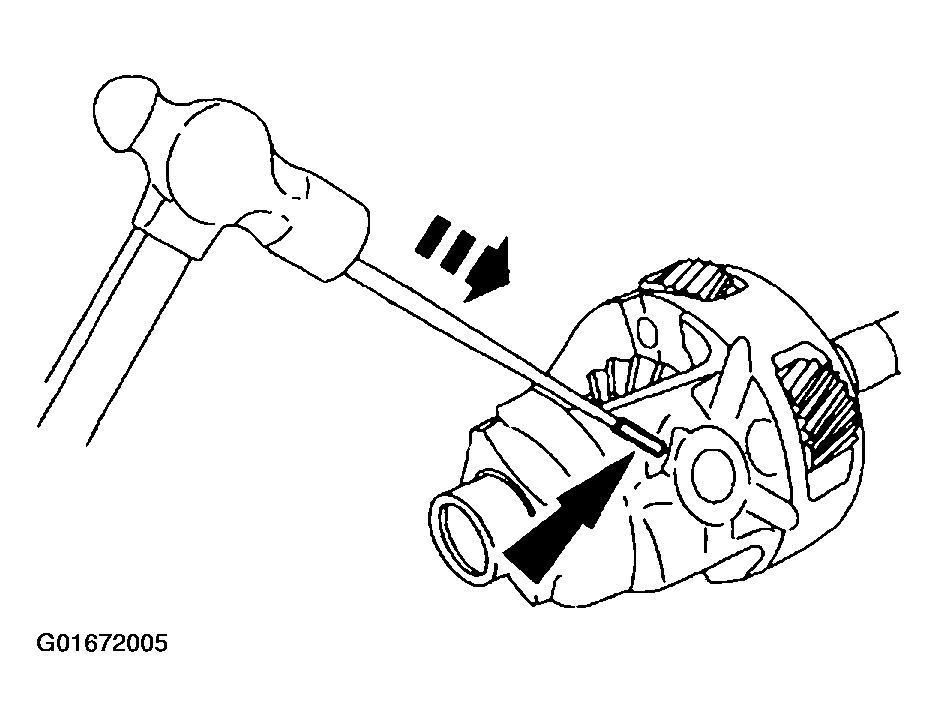

Fig 6: Installing Differential Pinion Shaft Roll Pin

Courtesy of FORD MOTOR CO.

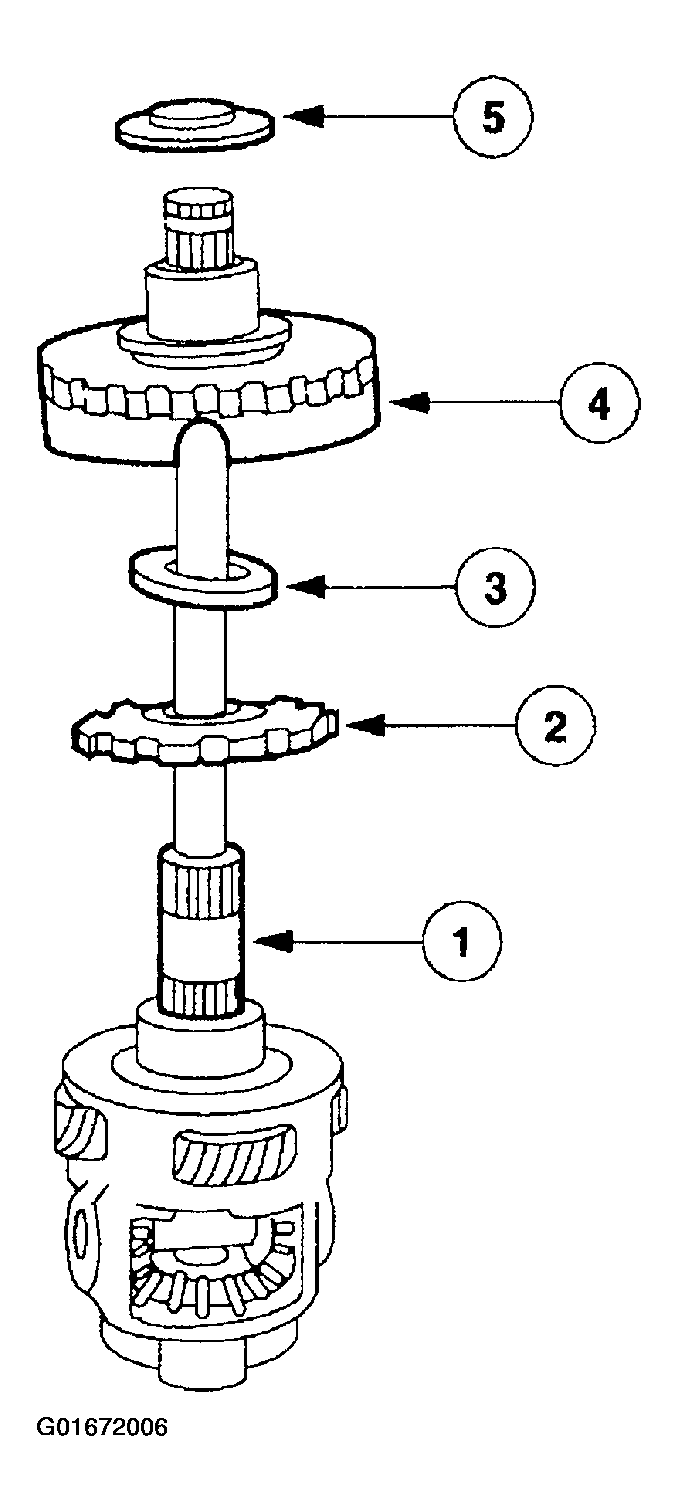

Fig 7: Assembling Final Drive Assembly

Courtesy of FORD MOTOR CO.
