Main Control Valve Body: Assembly

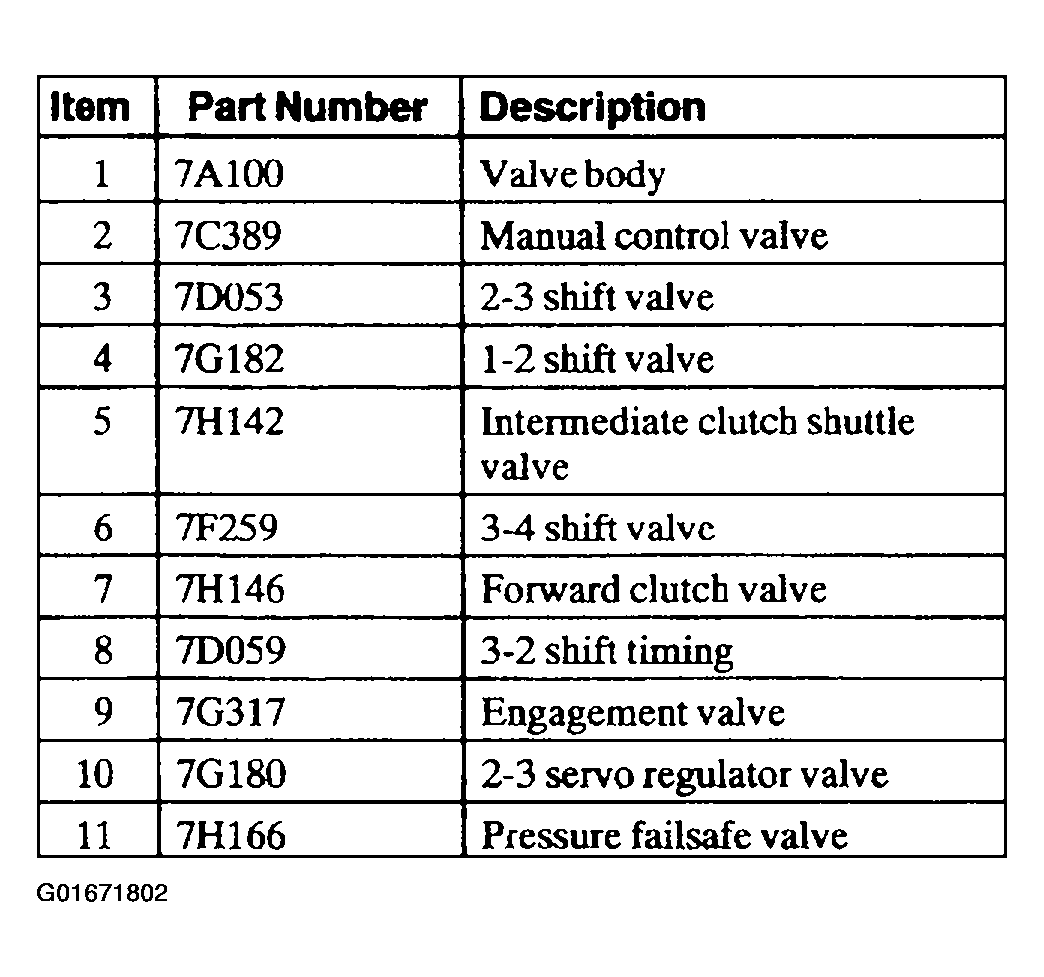

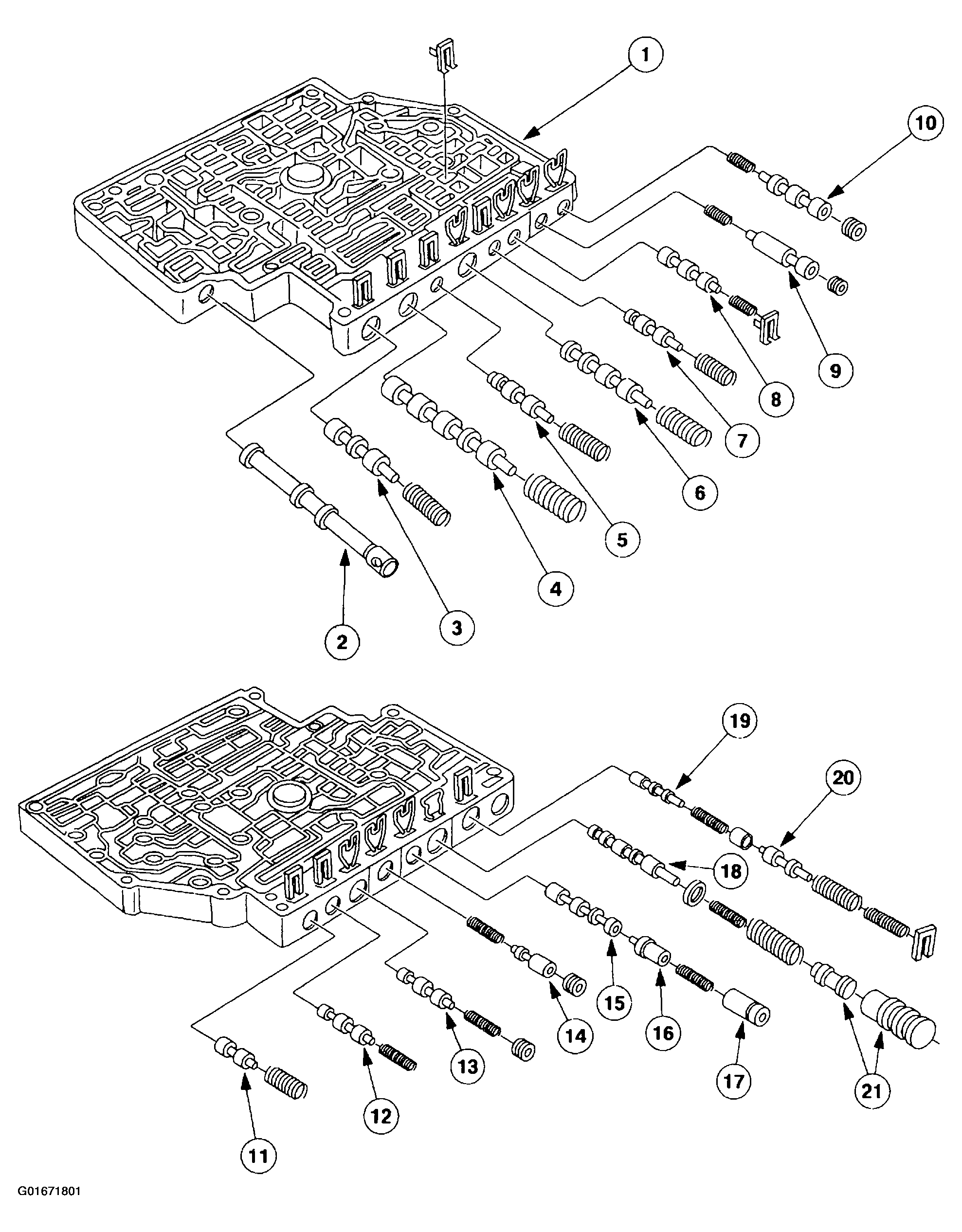

Fig 1: Main Control Valve Body Assembly Components (1 Of 3)

Courtesy of FORD MOTOR CO.

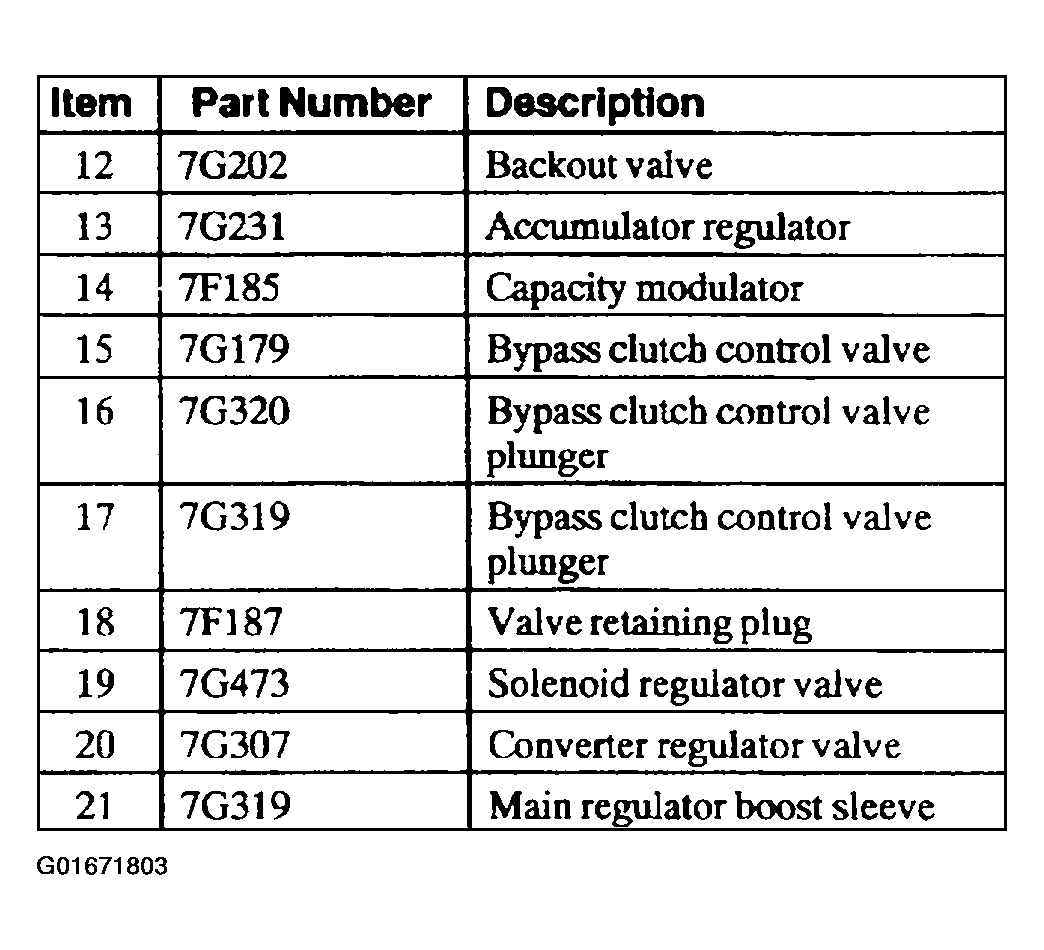

Fig 2: Main Control Valve Body Assembly Components (2 Of 3)

Courtesy of FORD MOTOR CO.

Fig 3: Main Control Valve Body Assembly Components (3 Of 3)

Courtesy of FORD MOTOR CO.

CAUTION: Do not stone or polish any of the valves. If the valves do not move freely during assembly, it is necessary to install a new valve body.

Install the valves and springs.

NOTE: Be sure to note the location of the check balls.

Install the check balls.

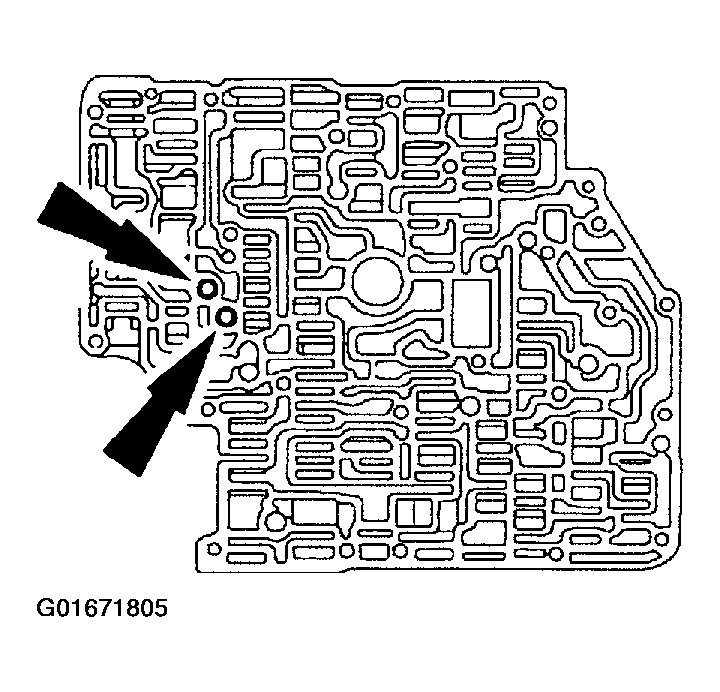

Fig 4: Installing Check Balls

Courtesy of FORD MOTOR CO.

NOTE: Be sure to note the location of the filters.

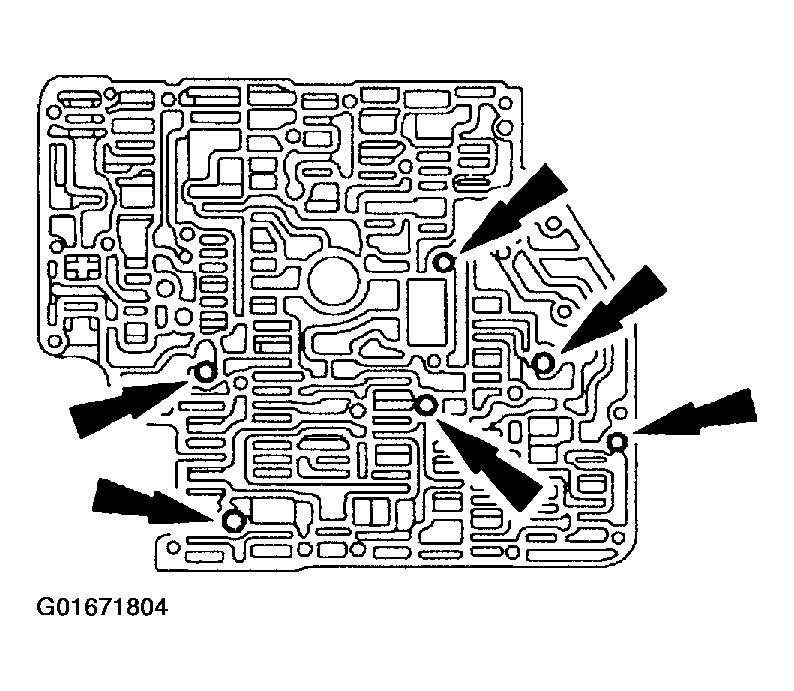

Fig 5: Installing Filters

Courtesy of FORD MOTOR CO.

Install the filters.

NOTE: Be sure to note the location of the relief valves.

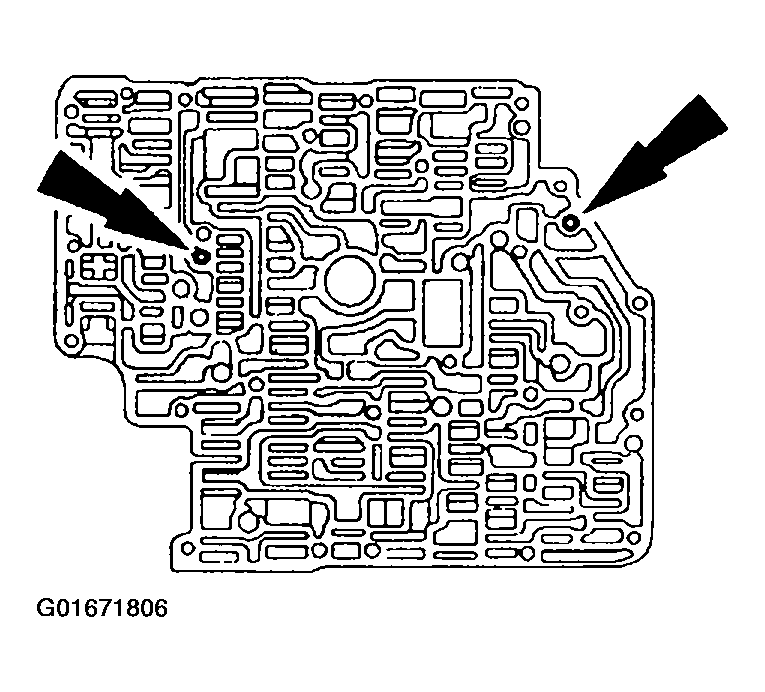

Fig 6: Installing Relief Valves

Courtesy of FORD MOTOR CO.

Install the relief valves

CAUTION: Verify correct alignment of the relief and check valves to the separator plate before tightening the bolts. If the relief and check valves are incorrectly installed the transaxle will not operate correctly.

NOTE: The new gaskets are bonded to the separator plate.

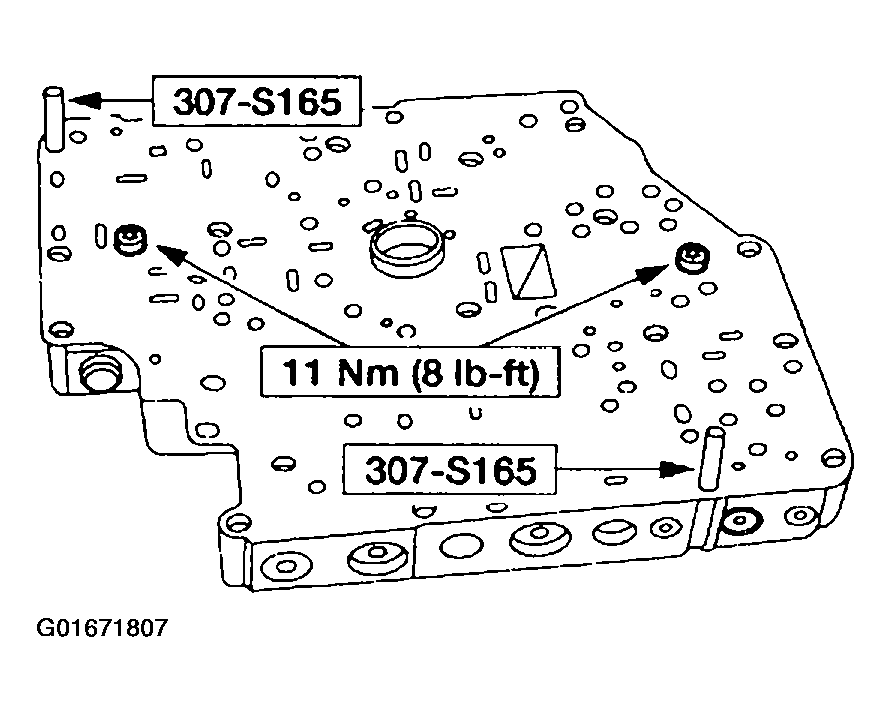

Fig 7: Installing A New Valve Body Separator Plate With Bonded Gasket

Courtesy of FORD MOTOR CO.

Using the special tools, install a new valve body separator plate with bonded gasket.
