Sun & Shell Assembly

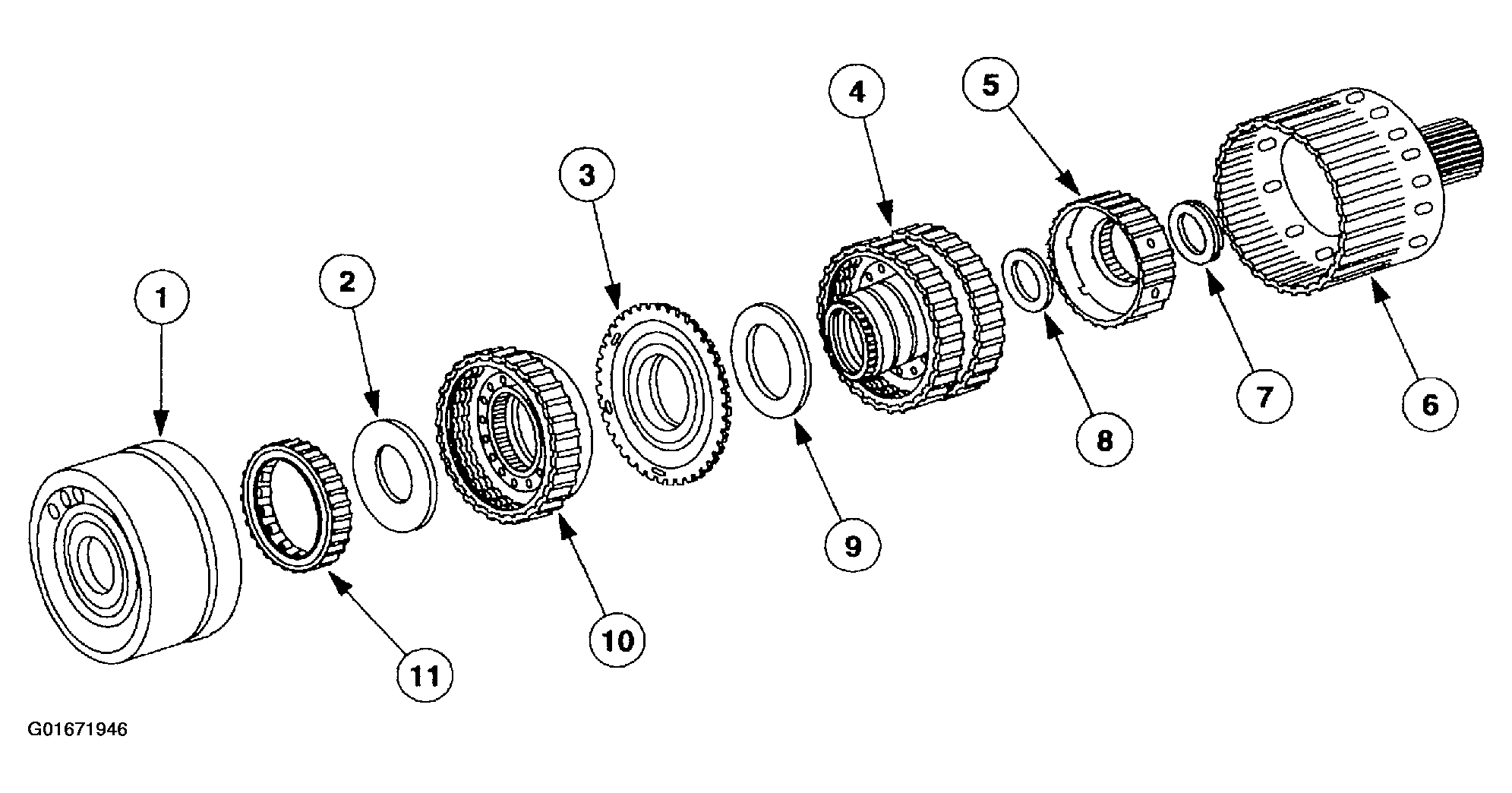

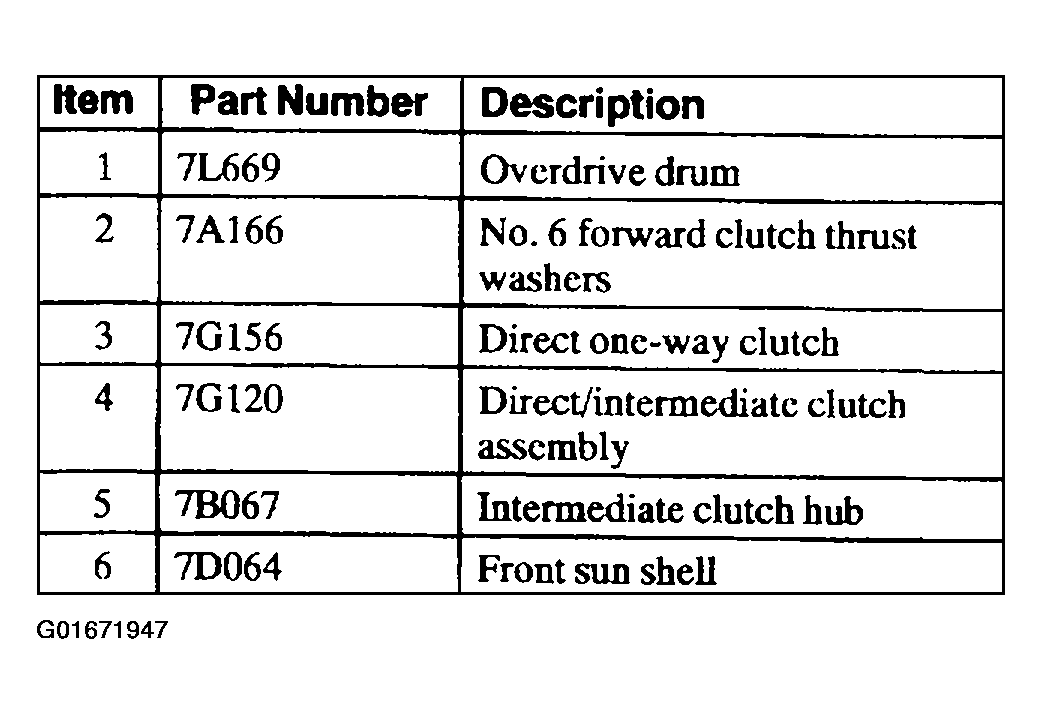

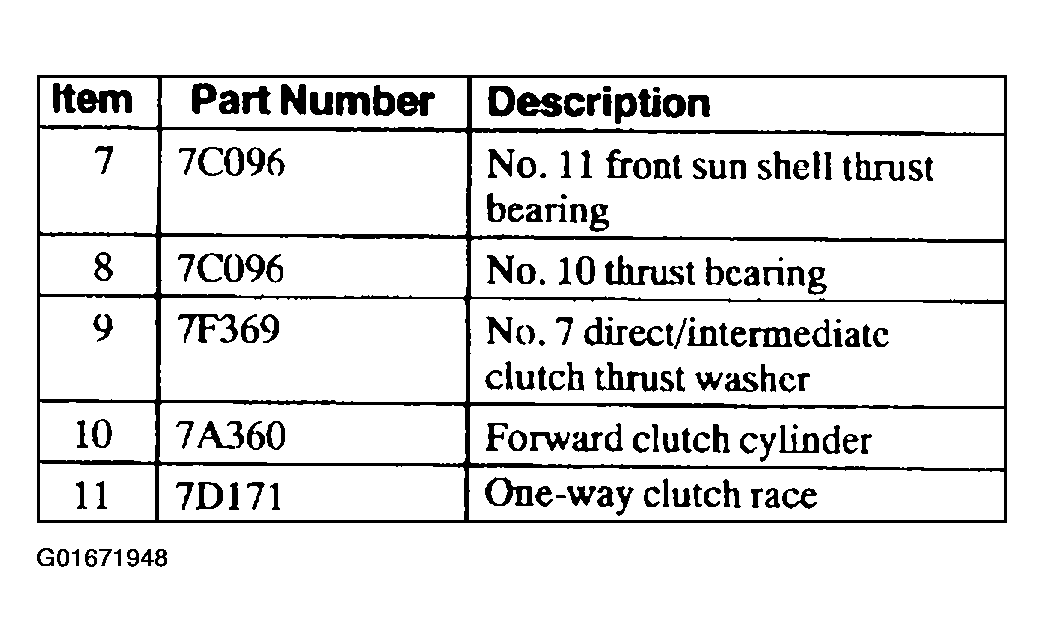

Fig 1: Identifying Sun & Shell Assembly Components (1 Of 3)

Courtesy of FORD MOTOR CO.

Fig 2: Identifying Sun & Shell Assembly Components (2 Of 3)

Courtesy of FORD MOTOR CO.

Fig 3: Identifying Sun & Shell Assembly Components (3 Of 3)

Courtesy of FORD MOTOR CO.

Install the direct one-way clutch assembly.
1. Install the No. 7 thrust washer.
2. Install the direct one-way clutch assembly.

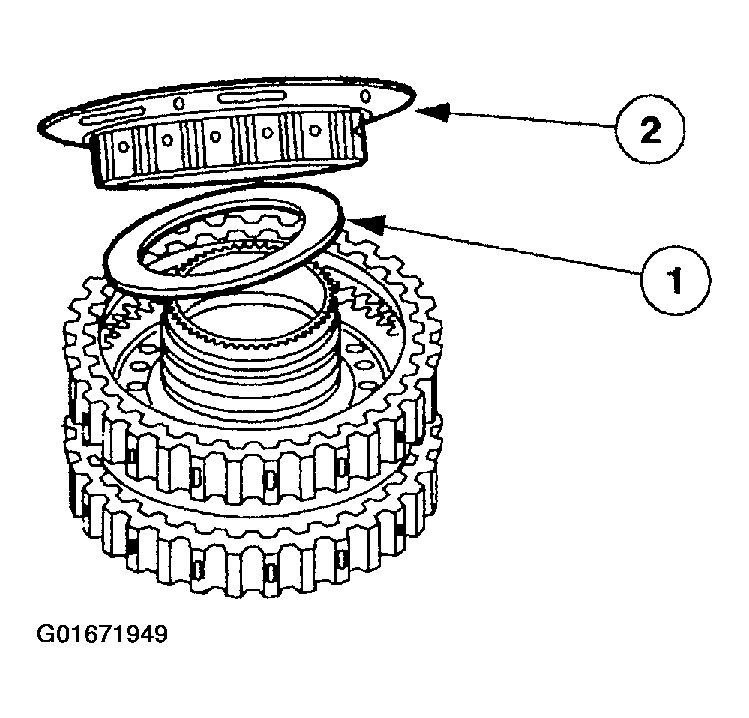

Fig 4: Installing Direct One-Way Clutch Assembly

Courtesy of FORD MOTOR CO.

NOTE: Lightly coat the O-rings with petroleum jelly.

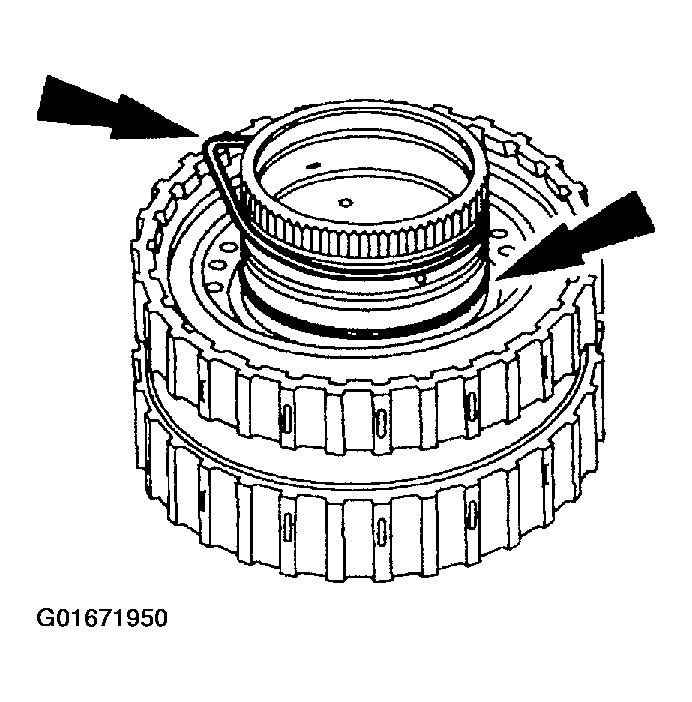

Fig 5: Installing New O-Rings

Courtesy of FORD MOTOR CO.

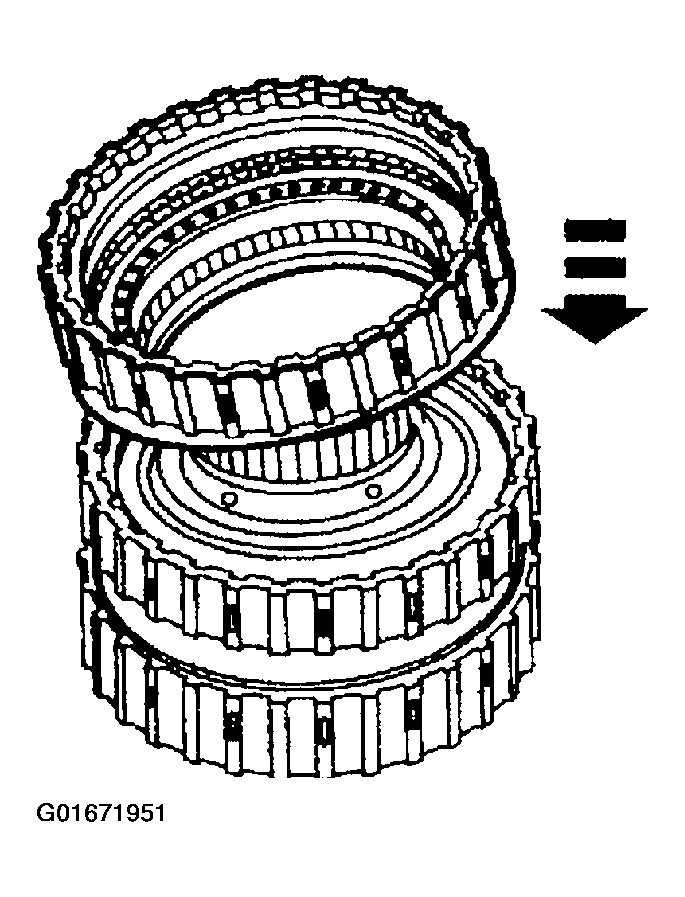

Fig 6: Installing Forward Clutch Assembly

Courtesy of FORD MOTOR CO.

NOTE: The spring retainer assembly contains both oval and circular holes. Make sure that the washer tabs lock into the oval holes.

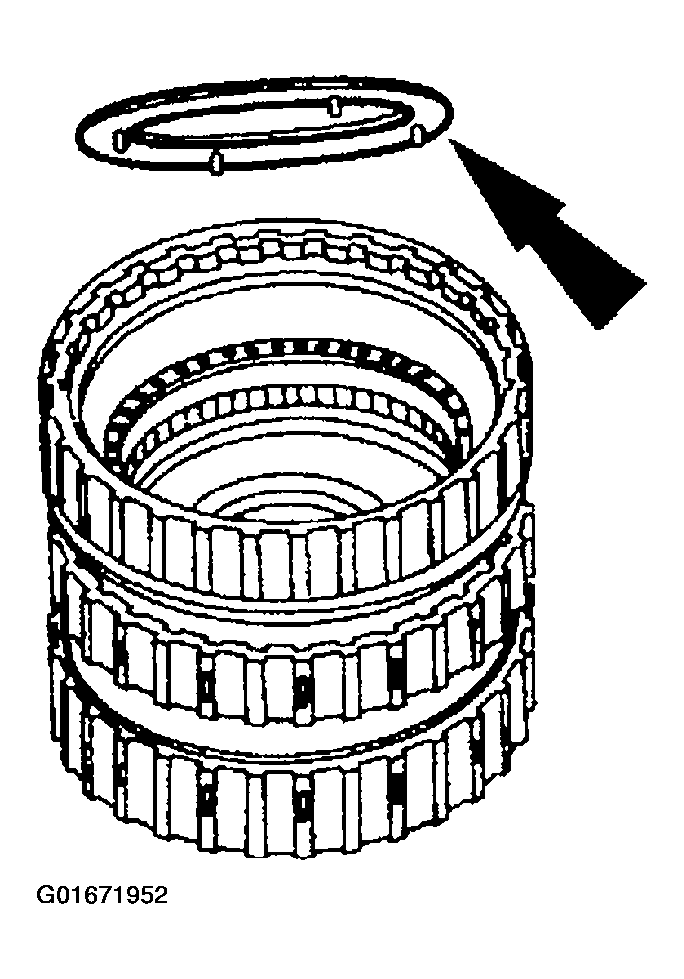

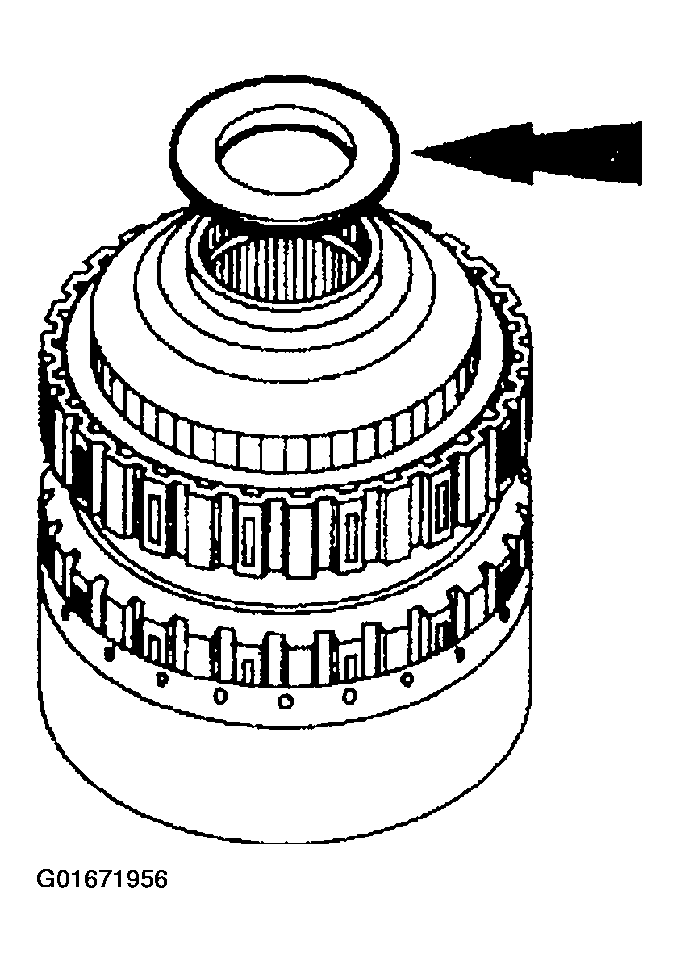

Fig 7: Install No. 6 Rear Clutch Sun Gear Thrust Washer

Courtesy of FORD MOTOR CO.

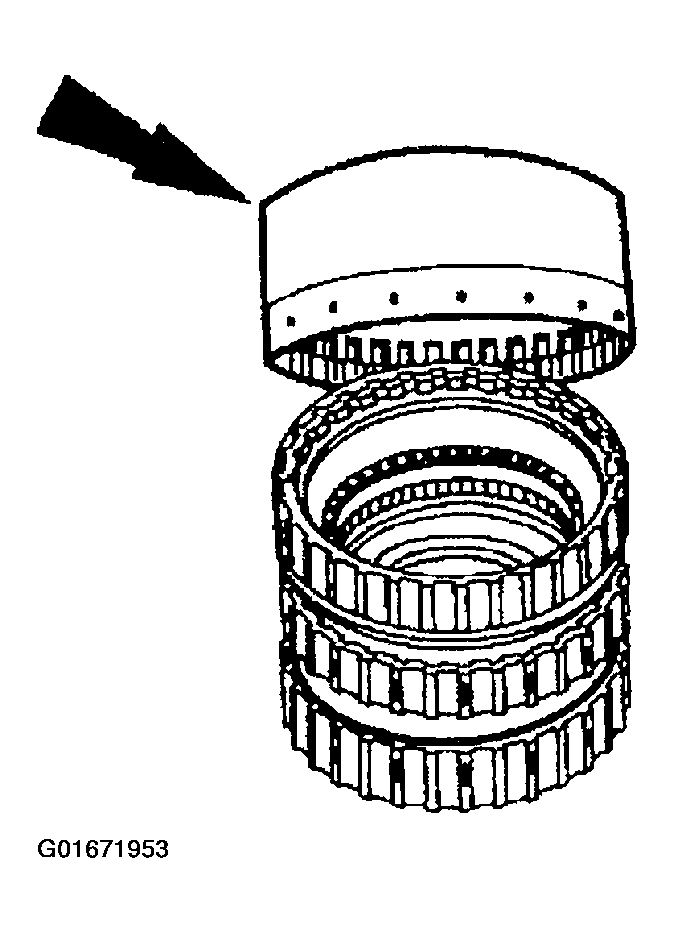

Fig 8: Installing Overdrive Drum

Courtesy of FORD MOTOR CO.

NOTE: The lip on the bearing goes over the hub.

Using petroleum jelly to hold the parts in place, install the No. 10 thrust bearing.

Fig 9: Installing No. 10 Thrust Bearing

Courtesy of FORD MOTOR CO.

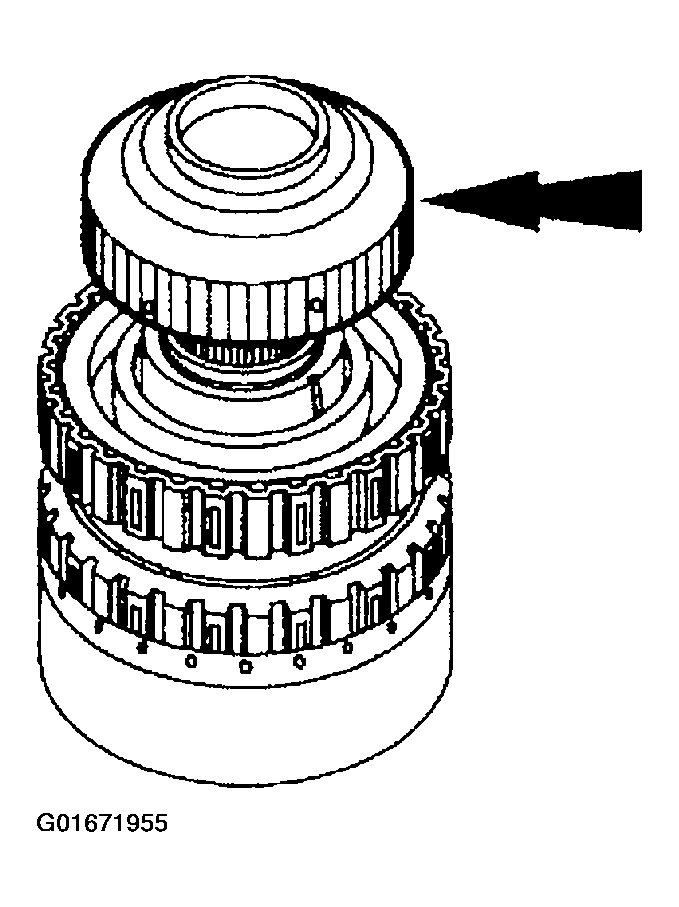

Fig 10: Installing Rear Clutch Hub & No. 10 Thrust Bearing

Courtesy of FORD MOTOR CO.

NOTE: The lip on the bearing goes down over the hub.

Fig 11: Installing No. 11 Thrust Bearing

Courtesy of FORD MOTOR CO.

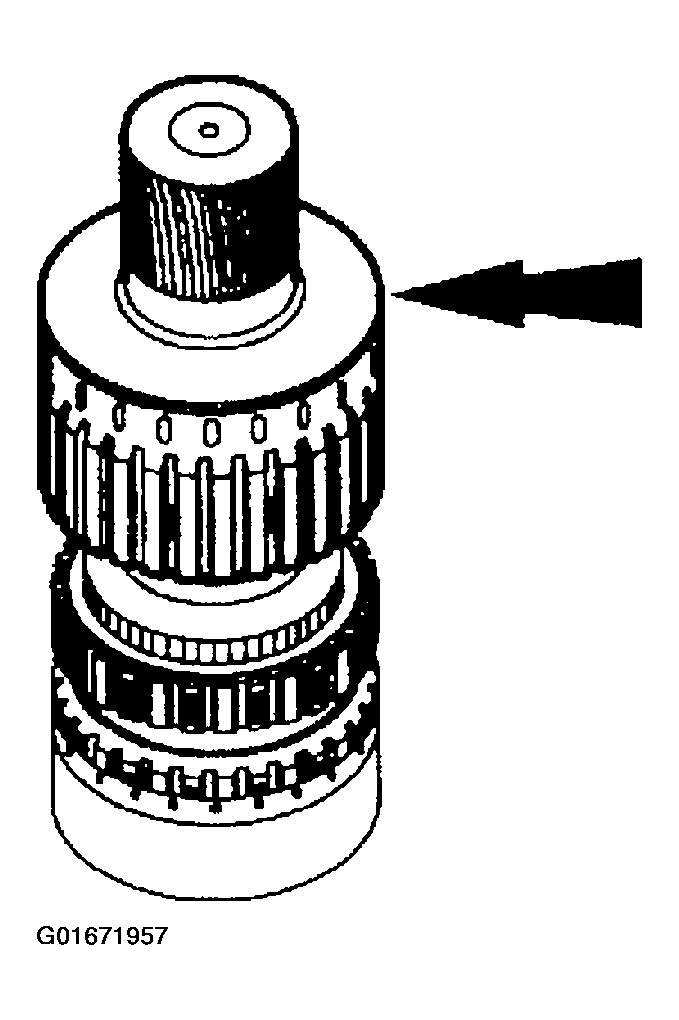

Fig 12: Installing Front Sun Shell

Courtesy of FORD MOTOR CO.
