Remote Transmitter Programming

Special Tool(s)

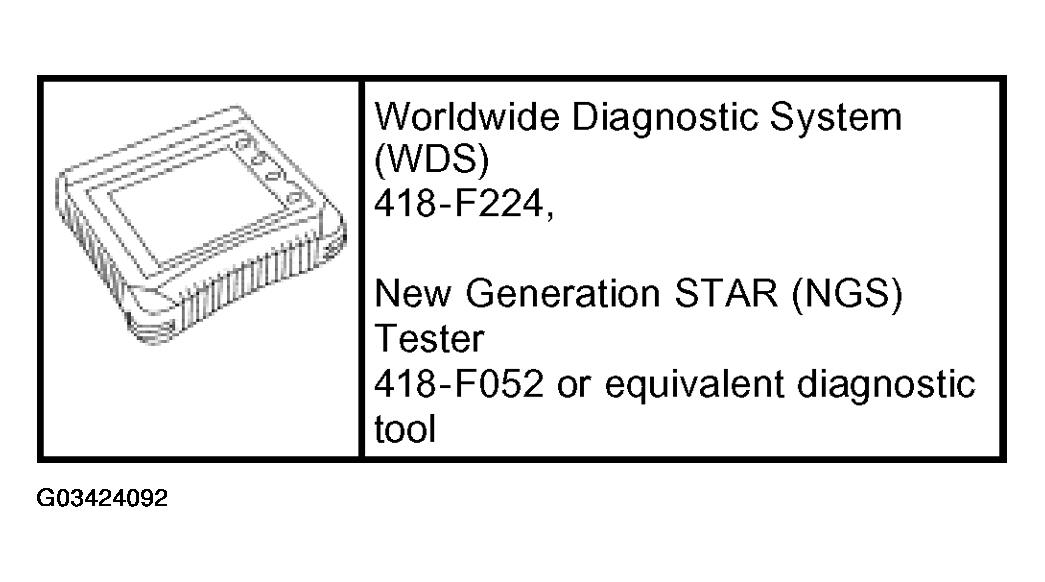

Fig 1: Identifying Special Tool - Remote Transmitter Programming

Courtesy of FORD MOTOR CO.

NOTE: All remote transmitters are programmable and must be set at the same time.

NOTE: To program (or reprogram) the remote transmitters into the remote keyless entry (RKE), carry out the following steps:

Connect the New Generation STAR/Service Bay Diagnostic System (diagnostic tool/SBDS) tester.
Turn the ignition from OFF to RUN.
From diagnostic tool/SBDS: Using the Ford Service Function (FSF) card, select SERVICE BAY FUNCTION.
Select RKE.
Select KEY FOB PROGRAMMING.
Press any button on the remote transmitter.
Select the FOB 1, 2, 3, or 4, and select STORE. It may be necessary to select CANCEL more than once to exit the menu.
Repeat steps 5 and 6 for additional transmitters.

NOTE: It may be necessary to select CANCEL more than once to exit the menu.
