Front Seat Backrest: Installation

  1. Position the backrest on the lower seat frame. Install the rear recliner spacer and retainer bolt.

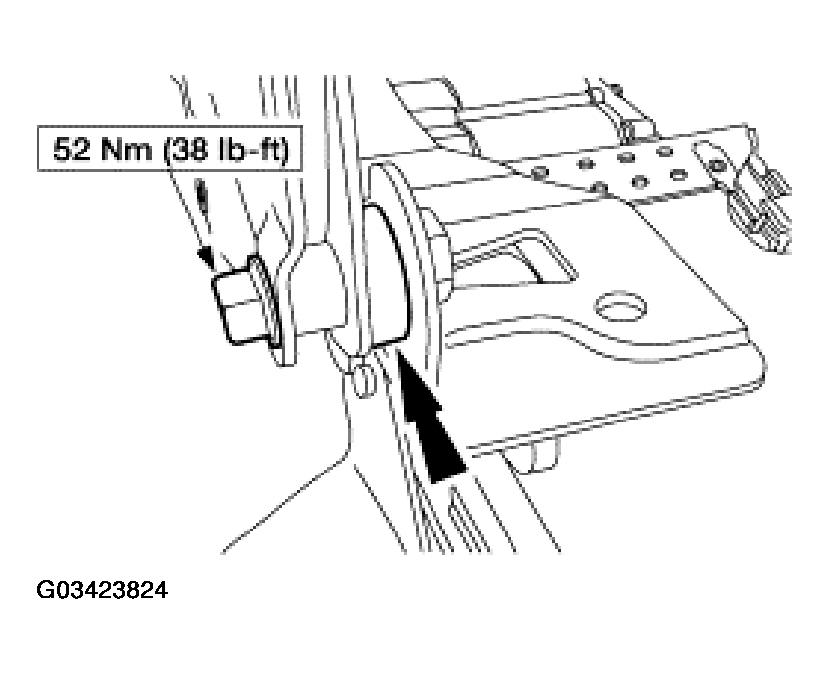

    Fig 1: Installing Rear Recliner Spacer And Retainer Bolt
    G03423824Courtesy of FORD MOTOR CO.
  2. Install the seat backrest pivot bolt. Attach the side air bag module electrical harness to the frame.

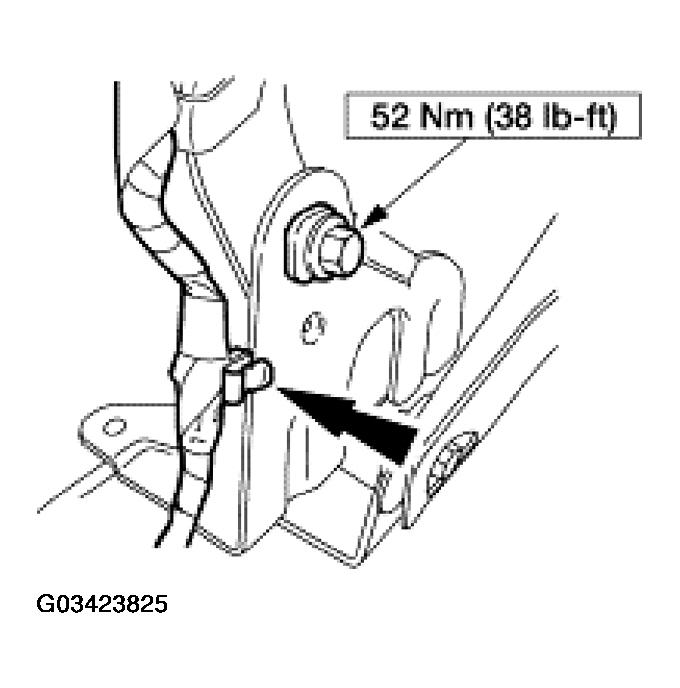

    Fig 2: Installing Seat Backrest Pivot Bolt
    G03423825Courtesy of FORD MOTOR CO.
  3. Install the front recliner spacer and retainer bolt.

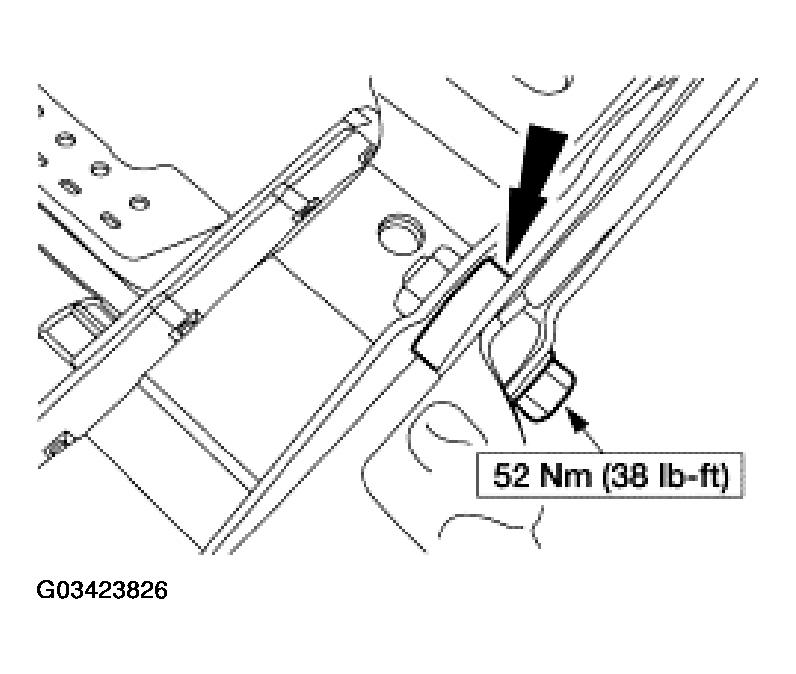

    Fig 3: Installing Front Recliner Spacer And Retainer Bolt
    G03423826Courtesy of FORD MOTOR CO.
  4. Attach the side air bag connector to the seat frame. Attach the electrical harness to the seat frame as noted during removal.

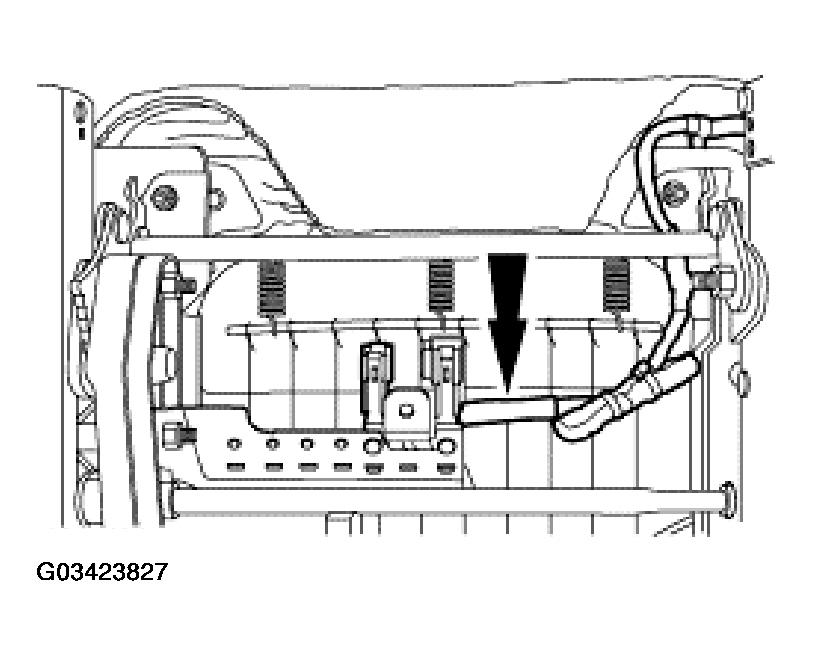

    Fig 4: Attaching Electrical Harness To Seat Frame
    G03423827Courtesy of FORD MOTOR CO.
  5. Install the front seat cushion. For additional information, refer to FRONT SEAT CUSHION .
  6. Install the front seat and reactivate the SRS. For additional information, refer to FRONT SEAT .
