Front Seat: Installation

  1. While positioning the seat in the vehicle, connect the seat electrical connectors.

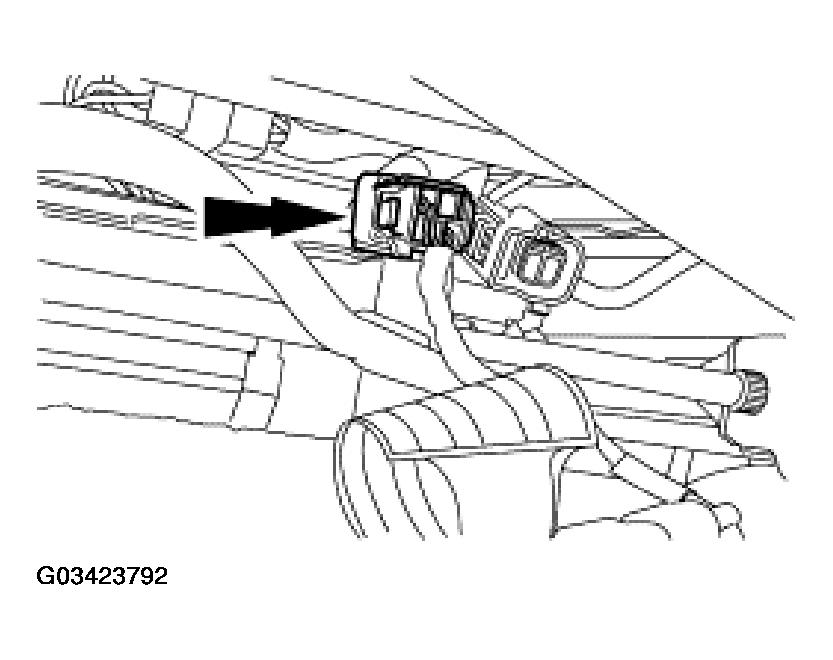

    Fig 1: Connecting Seat Electrical Connectors
    G03423792Courtesy of FORD MOTOR CO.
  2. Install the two front seat mounting bolts.

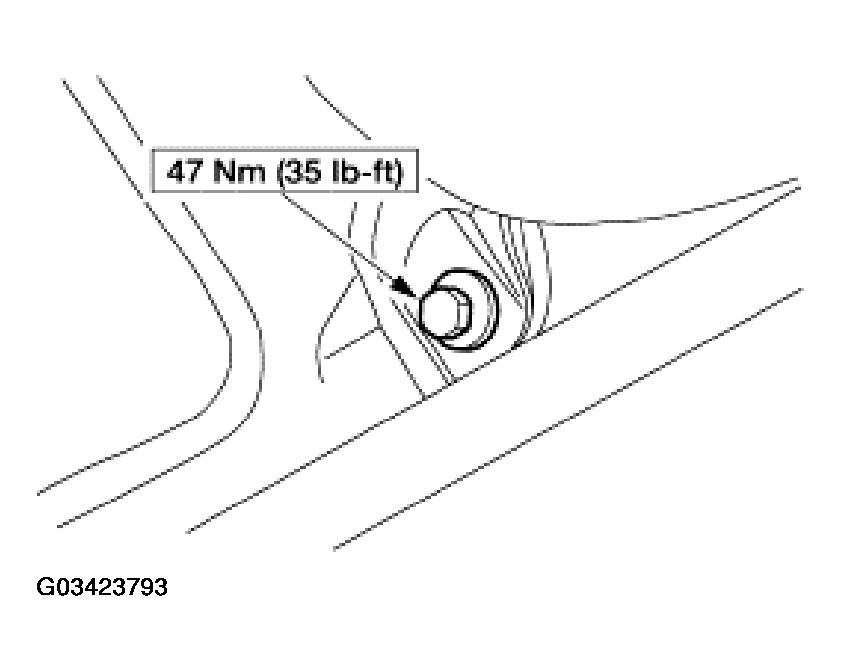

    Fig 2: Installing Front Seat Mounting Bolts
    G03423793Courtesy of FORD MOTOR CO.
  3. Reactivate the SRS. For additional information, refer to Supplemental Restraint System (SRS) Deactivating and Activating in AIR BAG RESTRAINT SYSTEMS .
  4. Move the seat forward.
  5. Install the two rear seat mounting bolts.

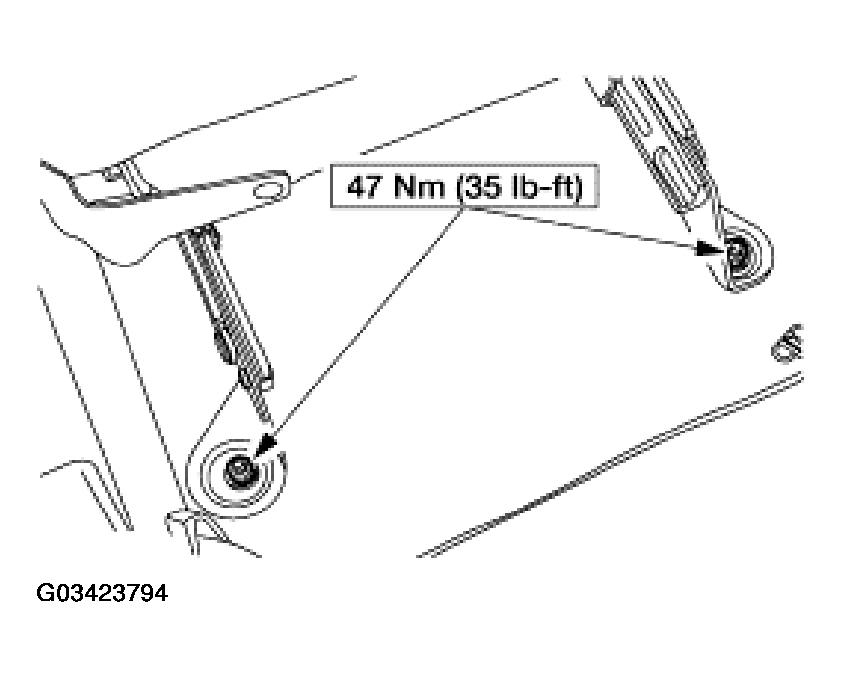

    Fig 3: Installing Two Rear Seat Mounting Bolts
    G03423794Courtesy of FORD MOTOR CO.
  6. Position the safety belt back into the seat guide.
    • Make sure the safety belt is not twisted after installation.

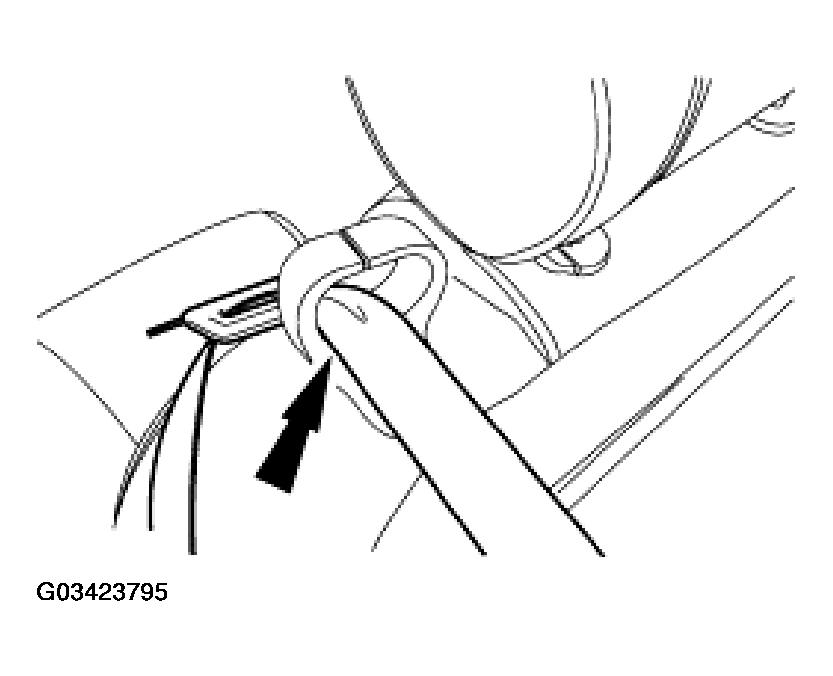

      Fig 4: Positioning Safety Belt Back Into Seat Guide
      G03423795Courtesy of FORD MOTOR CO.
  7. Check the active restraint system for correct operation. .
