Seat Control Switch: Installation

  1. Position the seat control switch. Install the screws.

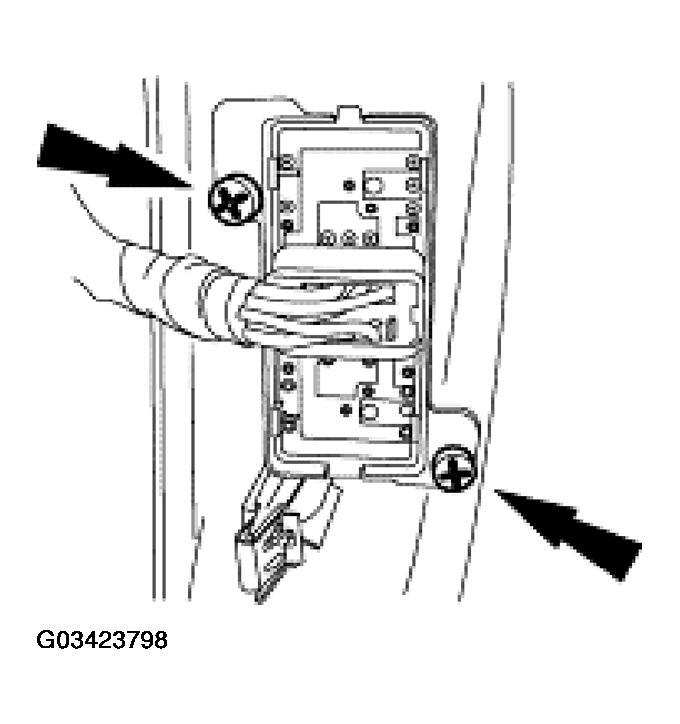

    Fig 1: Installing Seat Control Switch
    G03423798Courtesy of FORD MOTOR CO.
  2. Install the front cushion side shield. For additional information, refer to FRONT SEAT CUSHION - SIDE SHIELD .
  3. Install the seat control switch cover.

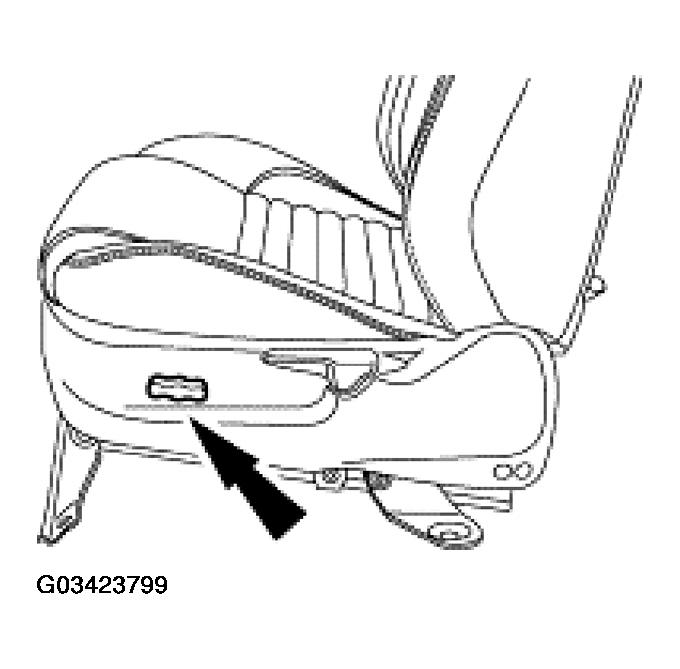

    Fig 2: Installing Seat Control Switch Cover
    G03423799Courtesy of FORD MOTOR CO.
  4. Install the front seat and reactivate the SRS. For additional information, refer to FRONT SEAT .
