In-Vehicle Repair: FLEXPLATE: Removal

  1. Remove the transmission. For additional information, refer to REMOVAL & INSTALLATION - A/T .
  2. Remove the flexplate.
    • Remove the bolts in the sequence shown.
    • Remove the flexplate.

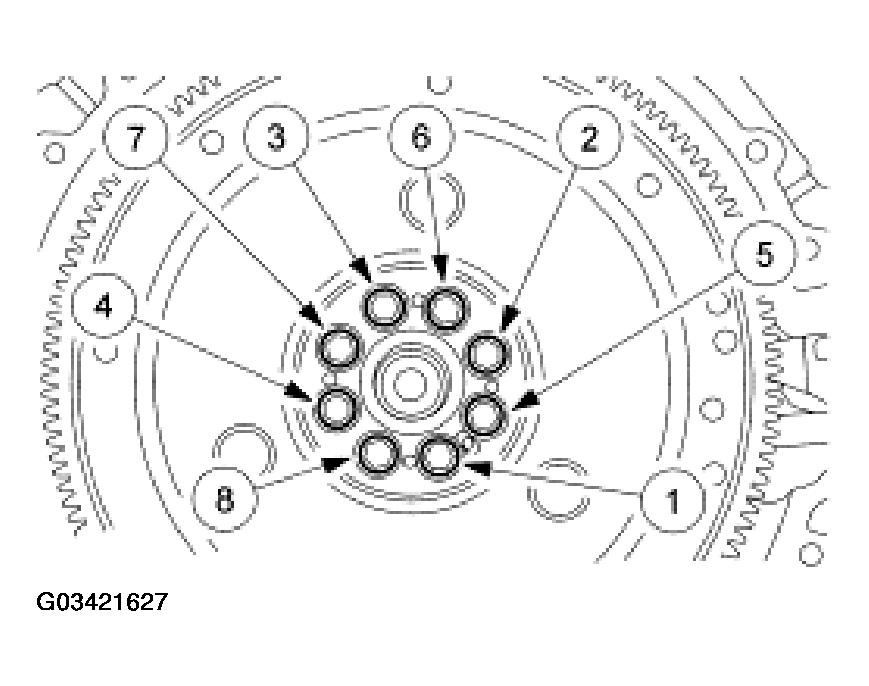

    Fig 1: Flexplate Bolt Removal Sequence
    G03421627Courtesy of FORD MOTOR CO.
