Cylinder Block-Distortion

Special Tool(s)

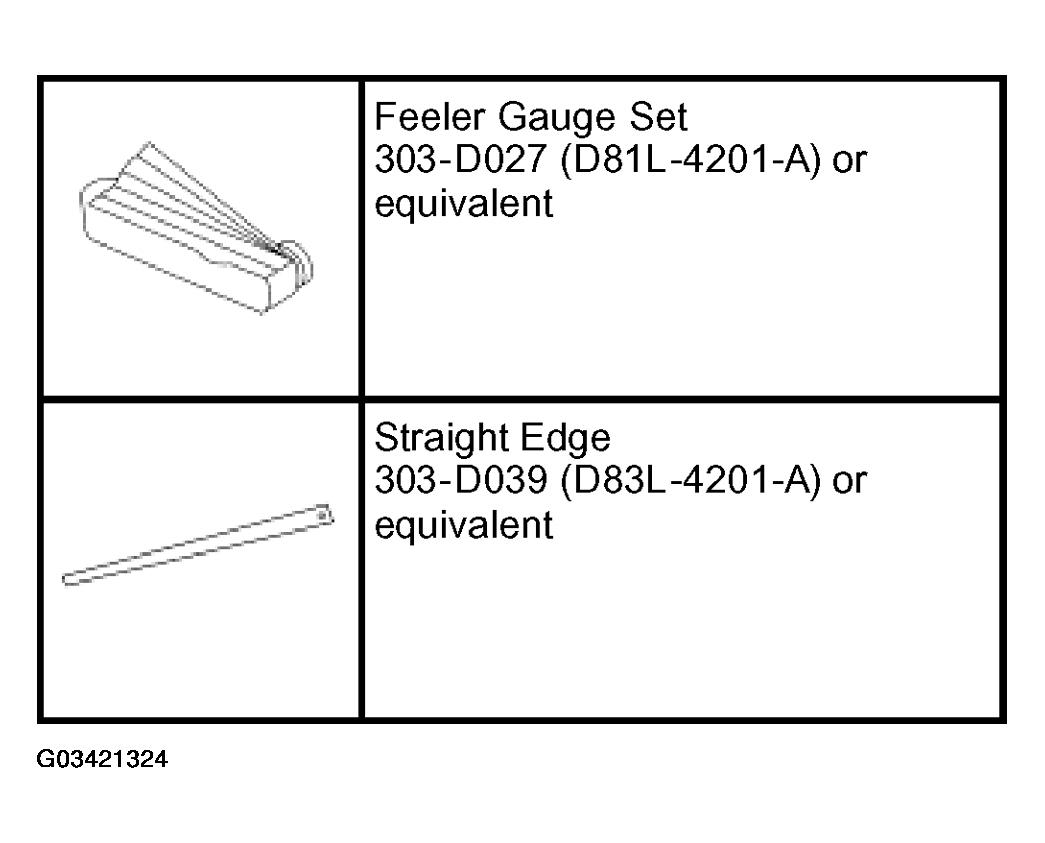

Fig 1: Identifying Special Tool

Courtesy of FORD MOTOR CO.

1. Use the special tools to inspect the cylinder block for flatness. If the cylinder block is distorted, install a new cylinder block.

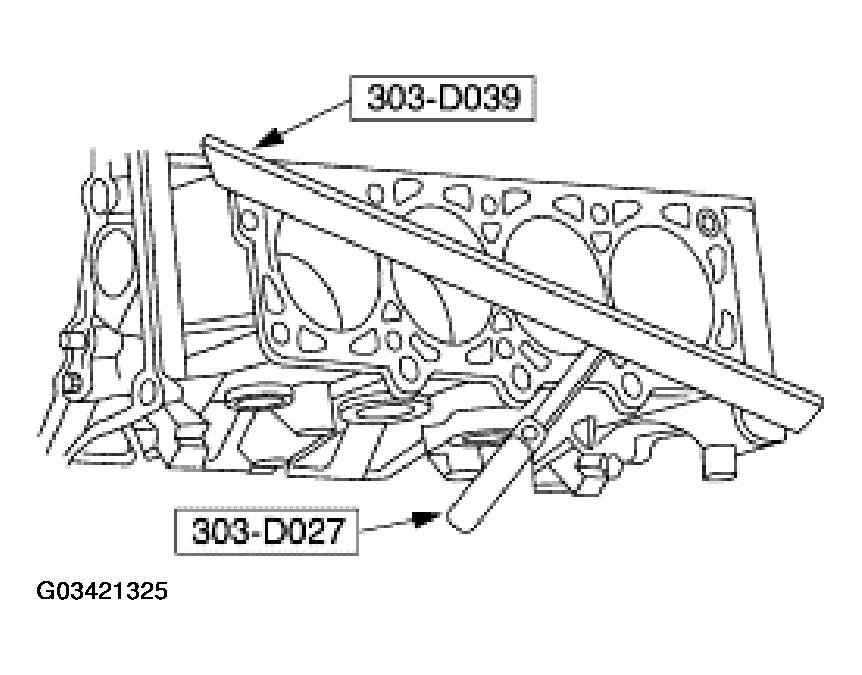

   Fig 2: Inspecting Cylinder Block For Flatness

   Courtesy of FORD MOTOR CO.
