Valve -Seat Width

Measure the valve seat width. Install a new cylinder head if measurements are not within specification.
Refer to CYLINDER HEAD for the procedure.
- Measure the intake valve seat width.
- Measure the exhaust valve seat width.
- Refer to GENERAL SPECIFICATIONS . .

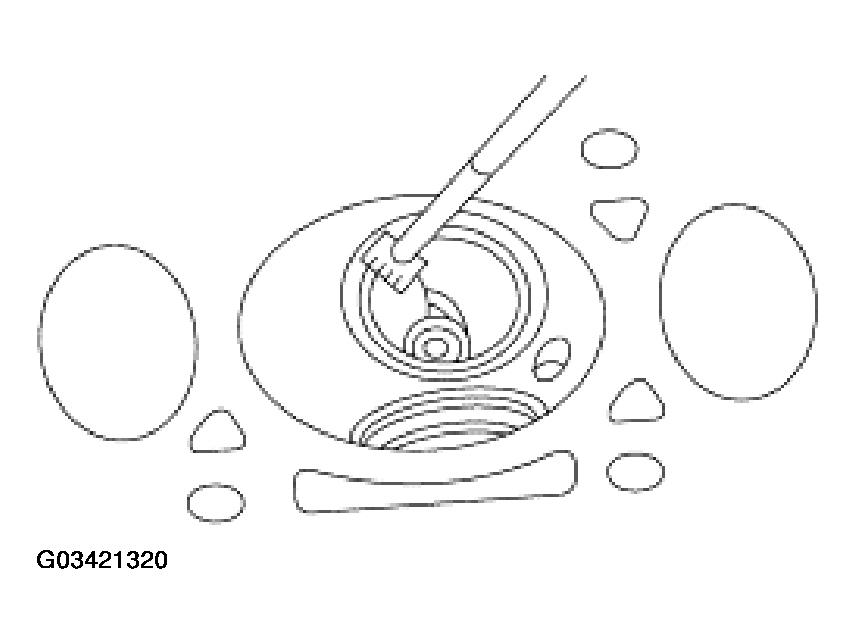

  Fig 1: Measuring Valve Seat Width
  Courtesy of FORD MOTOR CO.
