Valve-Spring Free Length

Measure the free length of each valve spring.
- GENERAL SPECIFICATIONS .
- If out of specification, install new components as necessary. Refer to ENGINE for the procedure.

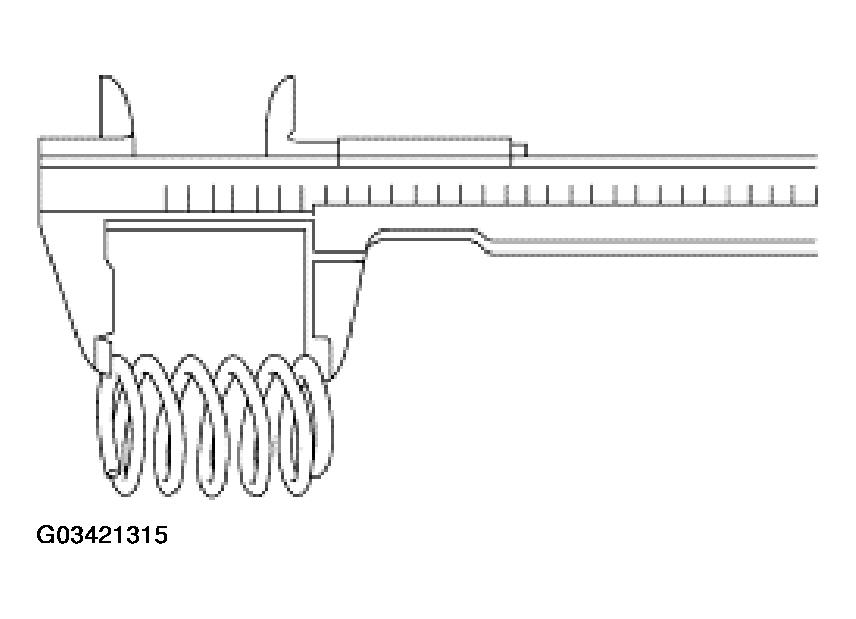

  Fig 1: Measuring Free Length Of Valve Spring
  Courtesy of FORD MOTOR CO.
