Special Tool(s)

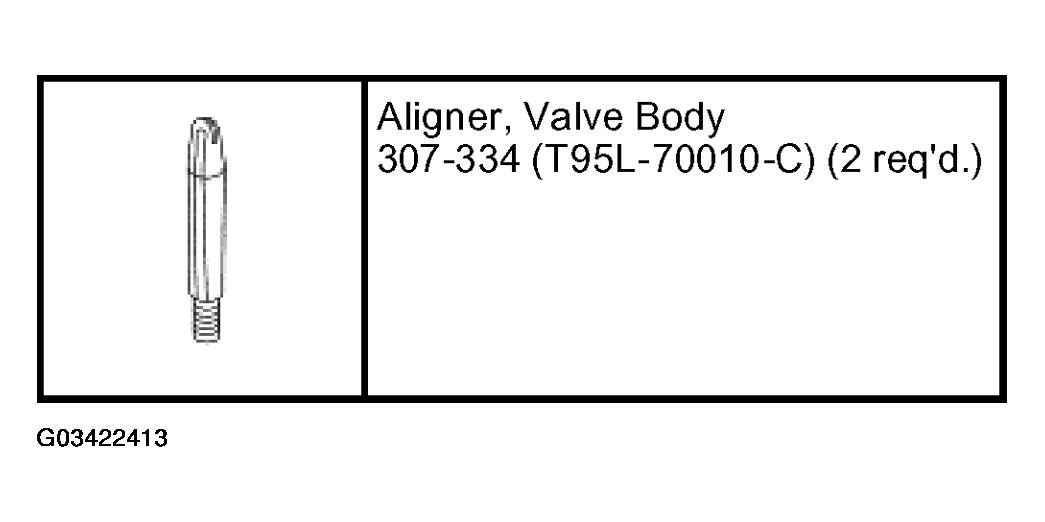

Fig 1: Identifying Special Tool

Courtesy of FORD MOTOR CO.

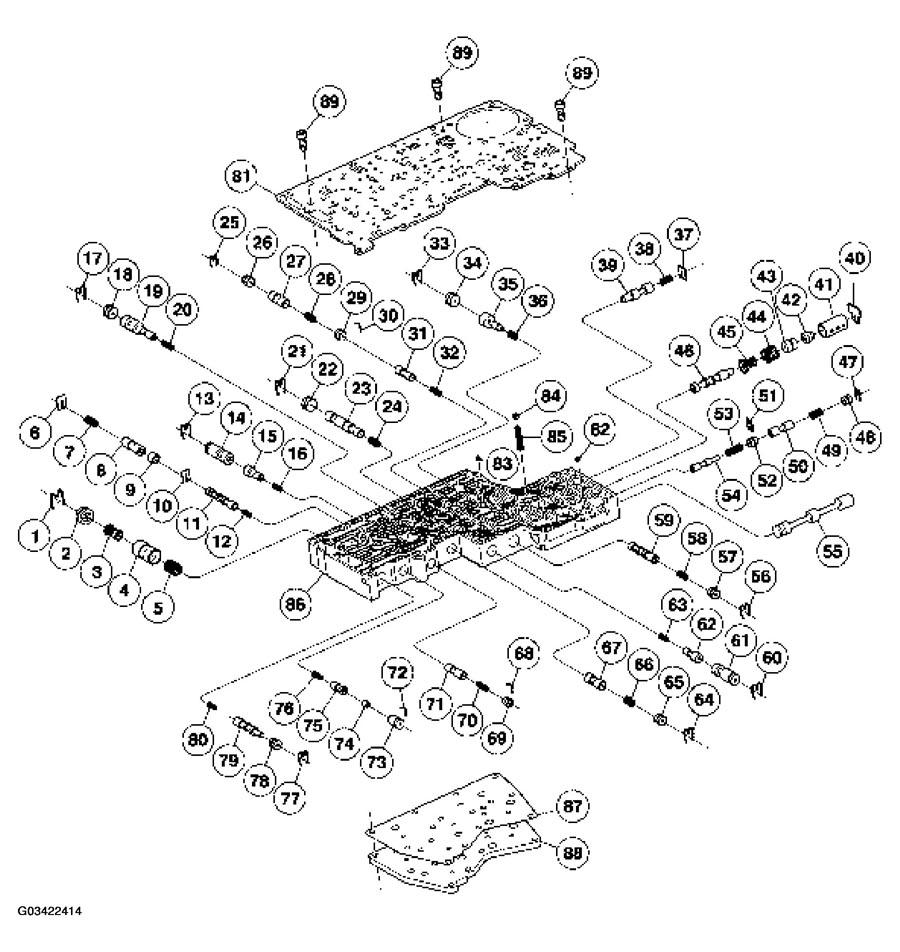

Fig 2: Exploded View Of Main Control Valve Body

Courtesy of FORD MOTOR CO.

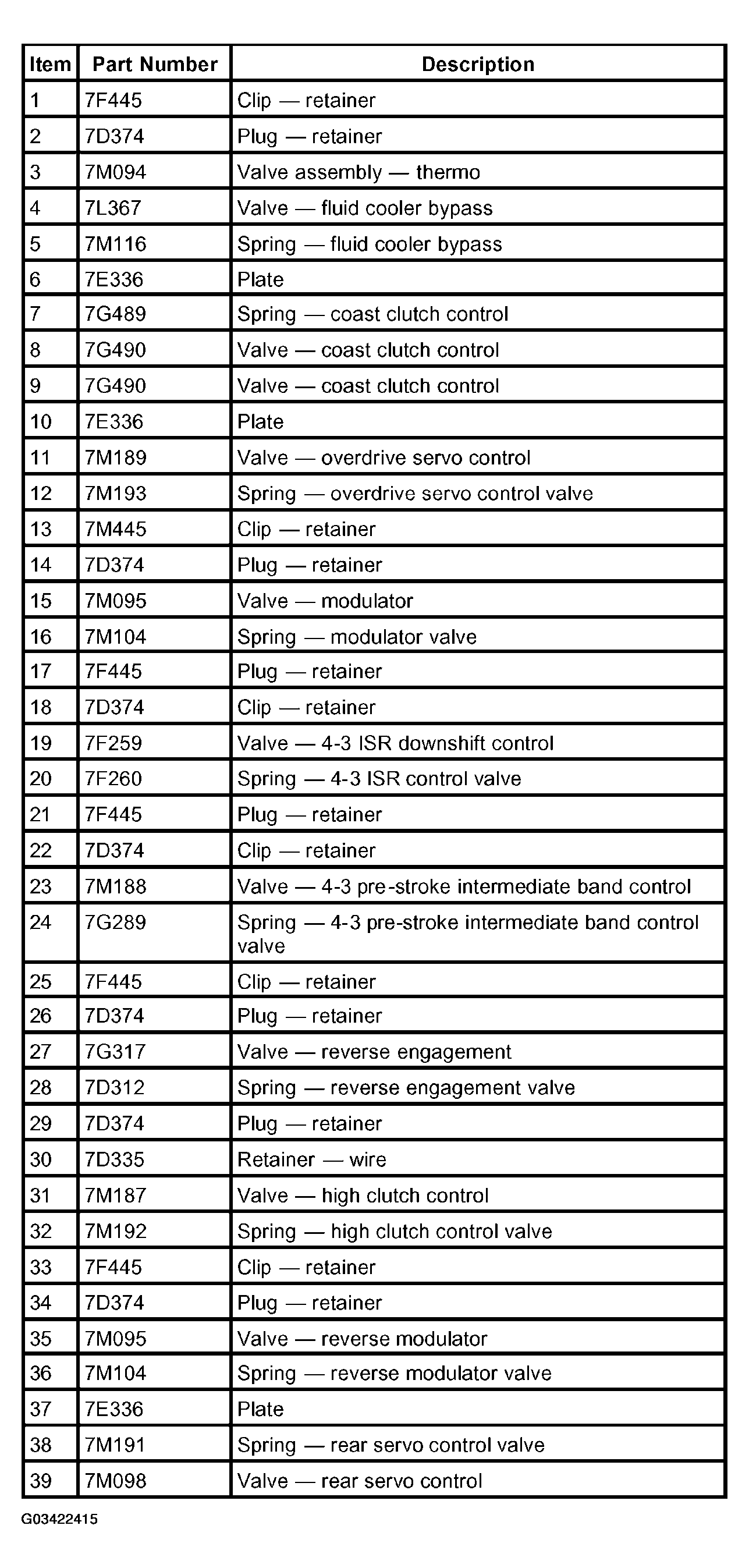

Fig 3: Main Control Valve Body Description Table (1 Of 2)

Courtesy of FORD MOTOR CO.

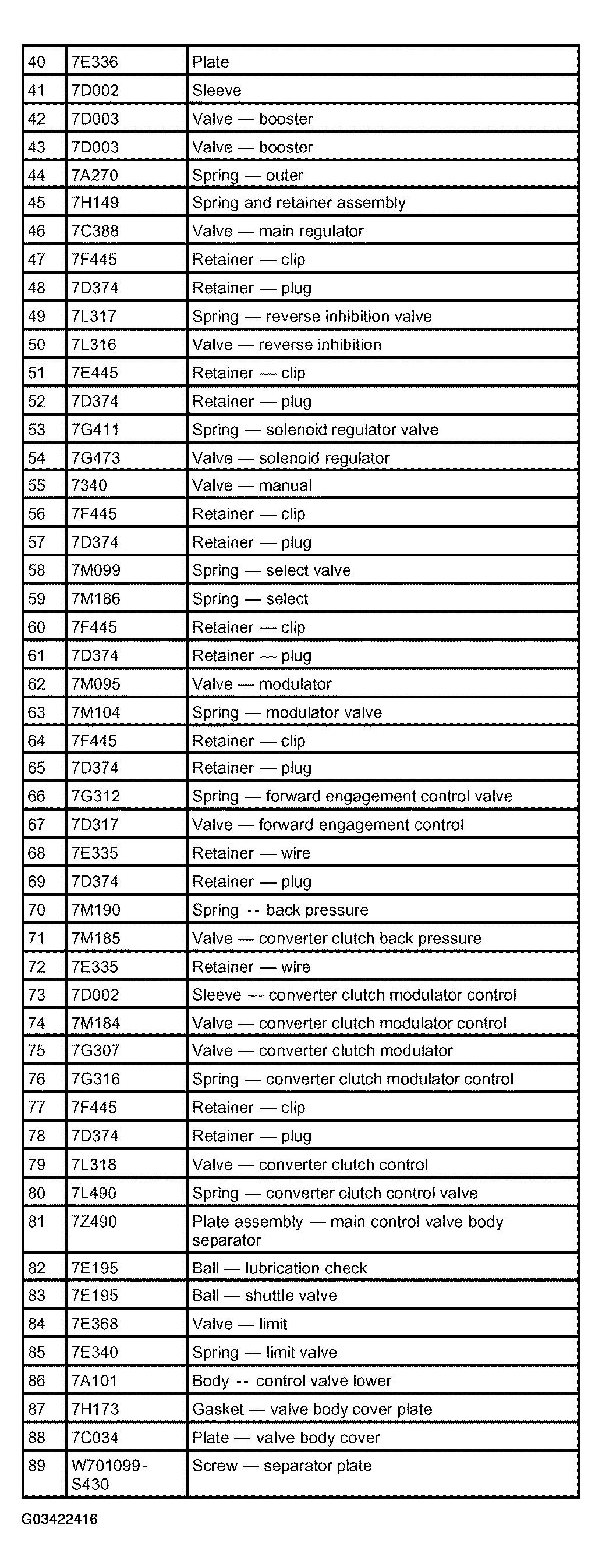

Fig 4: Main Control Valve Body Description Table (2 Of 2)

Courtesy of FORD MOTOR CO.
