Removal and Installation

Disconnect the battery ground cable.
Remove the instrument panel lower steering column opening cover.
1. Remove the screws.
2. Remove the instrument panel lower steering column opening cover.

  Fig 1: Removing Instrument Panel Lower Steering Column Opening Cover
  Courtesy of FORD MOTOR CO.
Remove the steering wheel rotation sensor.
1. Disconnect the electrical connector.
2. Remove the screws.
3. Remove the steering wheel rotation sensor.

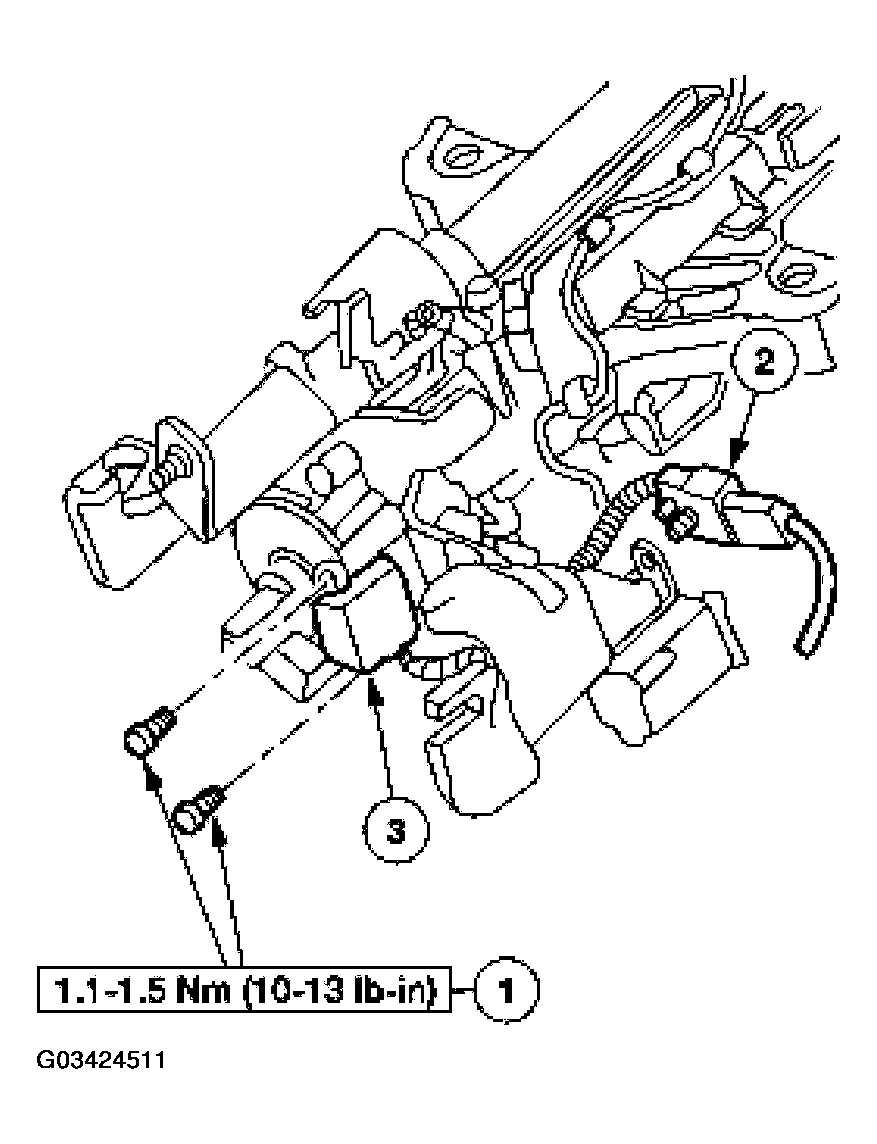

  Fig 2: Removing Steering Wheel Rotation Sensor
  Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
