Pinpoint Test A: No Communication With The Anti-Lock Brake Control Module

CAUTION: The Flex Probe Kit must be used for all test connections. Use of standard multimeter probes may damage wiring terminals.

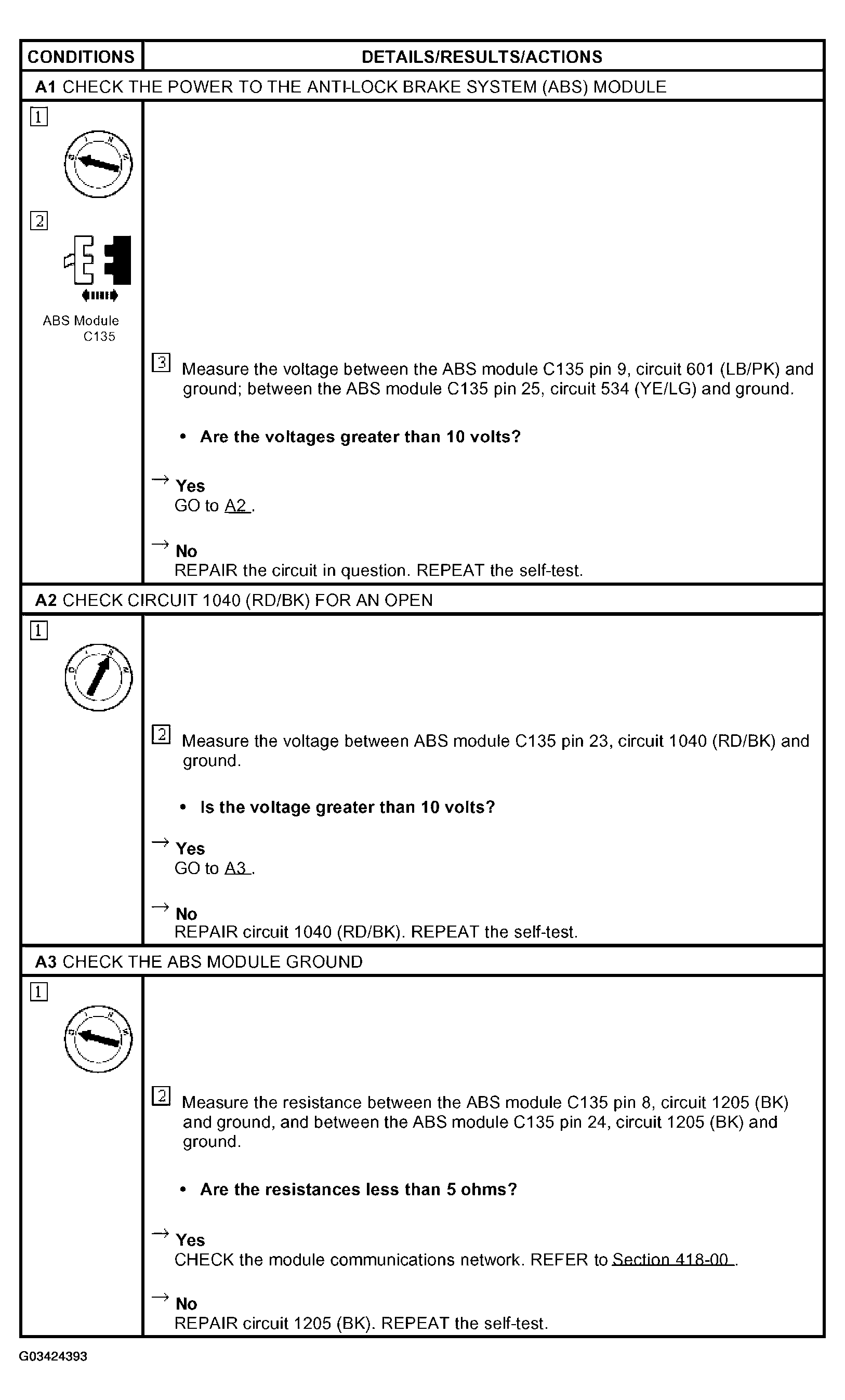

Fig 1: Pinpoint Test A: No Communication With Anti-Lock Brake Control Module (A1-A3)

Courtesy of FORD MOTOR CO.
